1,280 x 1,024 resolution
12 um thermal detector
High sensitivity thermal module NETD<18 mK (at 25°C, F# = 1.0)
60 mm, F1.0 lens

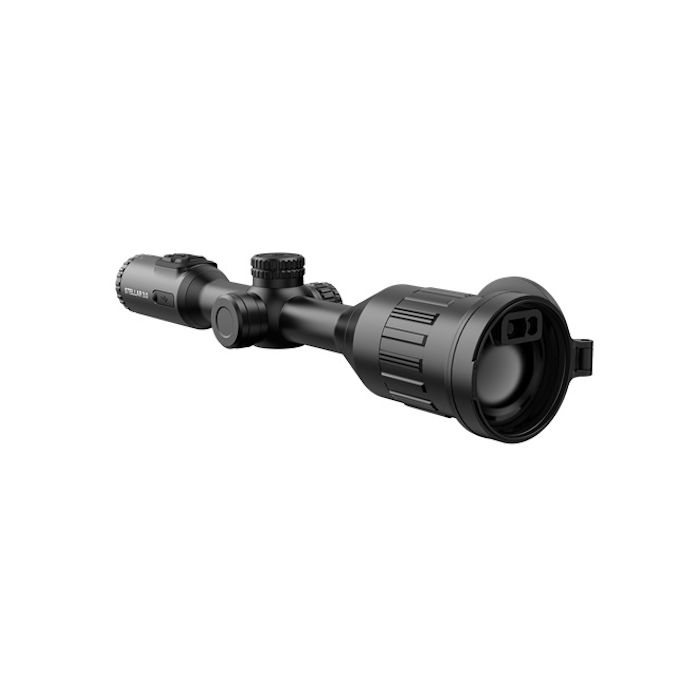

Introducing the Hikmicro Stellar SX60L 3.0 2.5x-28.5x Thermal Imaging Riflescope - 1280x1024. A powerful thermal image riflescope designed for precision and effectiveness in field and forest hunting. Equipped with a high-resolution 1,280 x 1,024 thermal detector with a 12 m pixel interval, the SX60L offers excellent sensitivity with a NETD rating of less than 18 mK (at 25C). This ensures that users can discern fine details in a variety of conditions, regardless of weather or light availability.
One of the key features of the SX60L is its 60 mm, f1.0 lens, which provides an impressive detection range of up to 3,100 meters. The 2,560 x 2,560 resolution AMOLED display (1.03 inches) enhances visual clarity, making it easier to spot and identify targets quickly and accurately. The integrated laser rangefinder (LRF) can measure distances up to 1,000 meters and is supported by ballistic calculations, providing users with crucial data for improved shooting accuracy. The riflescope has a magnification range from 2.5x to 28.5x, accommodating different shooting scenarios with customizable zoom in 1x step increments.
With a field of view at 100 meters measuring 14.6 x 11.7, the SX60L offers a broad view to track moving targets effectively. Focus is easily adjustable via a focus ring, with a minimum focusing distance of 6 meters. The scope is also built to withstand harsh conditions, featuring high shock resistance rated at 1,000 g/0.4 ms and a protective IP67 rating, ensuring it remains operational in challenging environments. Powering the SX60L are two rechargeable internal lithium batteries along with a replaceable rechargeable 18650 battery (external), allowing for up to 10 hours of continuous operation, even in extremely low temperatures. The Type-C power supply supports QC3.0 for fast charging, ensuring the device is ready for use in minimal time.
The SX60L also incorporates a variety of advanced functionalities, including on-board video recording, audio recording, and snapshot features. With a built-in storage capacity of 64 GB, users can easily save recordings, snapshots, and other important data. Additional capabilities like PIP (Picture-in-Picture), Hot Spot detection, Hot Tracking, and multiple zeroing profiles enhance this riflescope's versatility.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Resolution | 1,280 x 1,024 |
Frame Rate | 25 Hz |
Pixel Interval | 12 um |
Response Waveband | 8 um to 14 um |
Netd | Less than 18 mK (at 25C, F 1.0) |
Lens (Focal Length) | 60 mm, F1.0 |
Focus Mode | Focus Ring |
Detection Range | 3,100 m |
Focusing Distance | 6 meters |
Magnification | 2.5x-28.5x, Support 1x step value of continuous zooming |
Field Of View (Hxv), Degrees / M At 100 M | 14.6 x 11.7/25.6 m x 20.5 m |
Image Display | |
Display | 2,560 x 2,560, 1.03-inch OLED |
Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
Exit Pupil | 6 mm |
Eye Relief | 45 mm |
Diopter (Range) | -5D to 3D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, Warm |
Contrast Adjustment | Yes |
Zoom Pro | Yes |
Image Pro 2.0 | Yes |
Hsis (Hikmicro Shutterless Image System) | Yes |
System | |
Record Video | On-board Video Recording |
Capture Snapshot | Yes |
Audio Recording | Yes |
Recoil-Activation Recording | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64 GB) |
Pip | Yes |
Hotspot | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Zeroing Profiles | 5 |
Recoil | 1,000 g/0.4 ms |
Freeze Zeroing | Yes |
Local Album | Yes |
Power Supply | |
Battery Type | Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) |
Battery Operating Time | 10 hours continuous running (@ -20C, Zoom Pro, LRF on) |
Type-C Power Supply | 5 V DC/2 A, USB Type-C interface Supports QC3.0 |
General | |
Mounting | Standard 30 mm |
Protection Level | IP67 |
Dimension | 452.6 mm x 94.3 mm x78.9 mm |
Weight | 860 g without external battery |
Working Temperature | -30C to 55C (-22F to 131F) |
Centre Height | 41 mm |
Laser Rangefinder | |
Safety Class For Laser | Class 1 |
Wavelength | 905 nm |
Max. Measuring Range | 1,000 m |
Measurement Accuracy | -/+1 m |
Min. Measuring Range | 10 m |
