640 x 512 resolution
12 um thermal detector
High sensitivity thermal module netd < 15 mk (at 25c, f 1.0)
50 mm, f1.0 lens

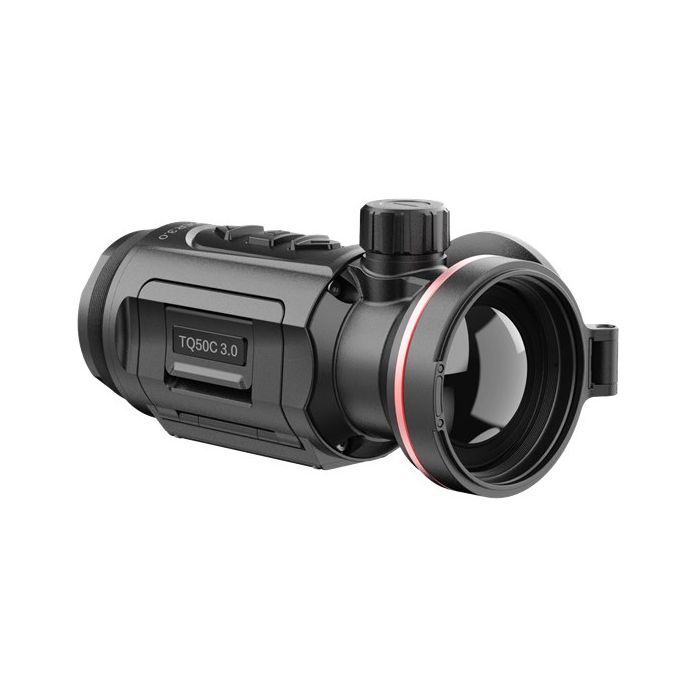

Introducing the Hikmicro Thunder TQ50C 3.0 1x Thermal Clip-On Scope - 640x512. A cutting-edge device that gives users the ability to detect and identify subtle details even under the most challenging light and weather conditions. Featuring a robust 640 x 512 resolution thermal detector with a 12 m pixel interval, this state-of-the-art scope boasts a sensitivity of less than 15 mK (at 25C) through its high-performance thermal module. With its impressive 50 mm, f1.0 lens, the TQ50C achieves a remarkable detection range of up to 2,600 meters, thereby extending its capabilities for long-distance observation. Complementing this technology is a high-definition 1,920 x 1,080 OLED display, which improves the visual experience for the user, allowing for clearer and more vivid thermal imagery.
Designed for user convenience and adaptability, the TQ50C includes features such as the HIKMICRO Shutterless Image System (HSIS), which ensures smooth operation and accurate imaging in variable conditions. With a field of view measuring 8.8 x 7.0 at 100 meters, the TQ50C provides ample situational awareness, making it easier for users to track targets. The focus mode is adjustable via a convenient focus knob, and with a minimum focusing distance of just 10 meters, it is versatile for various scenarios. The device weighs 500 grams with a compact design (149.4 mm x 76 mm x 74.6 mm) and is built from durable magnesium alloy, offering robust protection rated at IP67 against dust and moisture, ensuring reliability during outdoor activities.
The TQ50C is engineered for extended use, equipped with a rechargeable and replaceable Li-ion battery that provides over 6 hours of continuous operation. Additional onboard capabilities include video recording, audio recording, and a snapshot feature, enabling users to capture important moments easily. It also has a built-in storage capacity of 64GB for saved recordings and data. The laser rangefinder functionality enables measurement accuracy within 1 meter over distances up to 1,000 meters, further enhancing the scope's versatility. Interfaced through a user-friendly display, and with features like hot tracking and virtual reticle, the Hikmicro Thunder TQ50C 3.0 is a powerful thermal imaging tool for enthusiasts and professionals alike.
Thermal Module | |
Image Sensor | Uncooled Focal Plane Arrays |
Max. Resolution | 640x512 |
Frame Rate | 50Hz |
Pixel Interval | 12um |
Response Waveband | 8um to 14um |
Netd | Less than 15mK (25 C, F1.0) |
Lens (Focal Length) | 50mm, F1.0 |
Detection Range | 2600m |
Focus Mode | Focus Knob |
Field Of View(H X V), Degrees / M At 100M | 8.8 x7.0/15.4m x 12.3m |
Min. Focusing Distance | 10m |
Magnification | 1x |
Recommended Magnification Of The Day Scope | 1-15x |
Image Display | |
Display | 1920x1080, 0.49 inch, OLED |
Brightness Adjustment | Yes |
Palettes | Black Hot, White Hot, Red Hot, FusionRed monochrome, Green monochrome |
Exit Pupil | 25mm |
Eye Relief | 20mm |
Tone Adjustment | Cold, Warm |
Hsis (Hikmicro Shutterless Image System) | Yes |
General | |
Protection Level | IP67 |
Weight | 500g with Battery |
Dimension | 149.4mm x 76mm x 74.6mm |
Working Temperature | -30 C to +55 C (-22 F to 131F) |
Body Material | Body & Lens Cover: Magnesium Alloy |
System | |
Record Video | On-board Video Recording |
Capture Snapshot | Yes |
Hotspot | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64GB) |
Hot Track | Yes |
Reticle | No |
Distance Measurement | Yes |
Audio Recording | Yes |
Recoil-Activation Recording | Yes |
Max. Recoil | 1000g/0.4ms |
Local Album | Yes |
Virtual Reticle | Yes |
Image Calibration | Yes |
Zeroing Profiles | 5 |
Power Supply | |
Battery Type | Replaceable and Rechargeable Li-ion Battery Pack |
Battery Operating Time | >/- 6h (25 C, with hotspot off) |
Type-C Power Supply | 5 VDC, 2 A Supports External Power Supply |
Laser Rangefinder | |
Safety Class For Laser | Class 1 |
Wavelength | 905nm |
Max. Measuring Range | 1000m |
Measurement Accuracy | -/+1m |
Min. Measuring Range | 10m |
