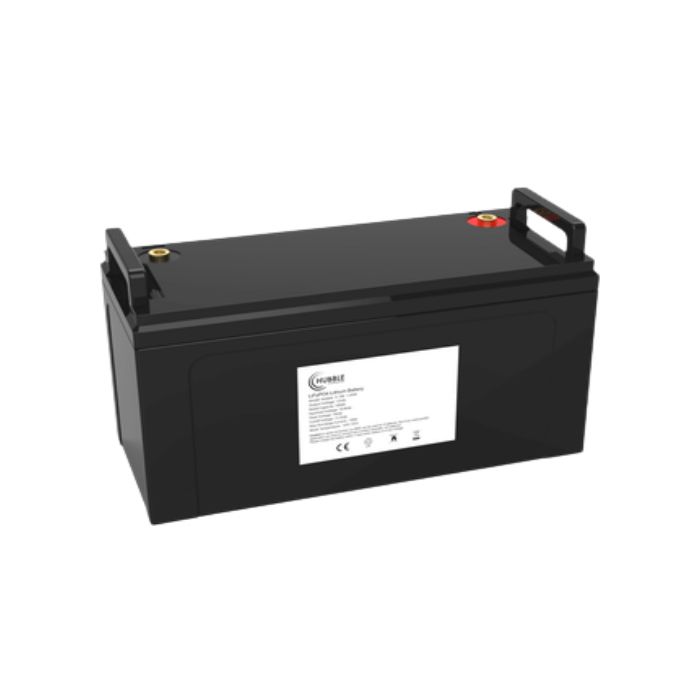

Hubble S-120 1C 2nd Life Battery - 12.8V, 1.5KWh
R6,629.00
SKU
S-120
Description
The Hubble S-120 1C 2nd Life Battery is Hubble's high performance lead-acid drop-in replacement succeeding the popular S-100 Series
Features
- High Cycle Life and Service Life
- High Performance Lithium battery
- Internal Battery Management System
- Excellent high temperature performance
- High energy density and conversion efficiency
- Can be configured in 12V, 24V, 36V or 48V in series
- Easy drop in replacement for old lead acid battery installs
- BMS protects internal cells and ensures smooth operation
- Compatible with most UPS & Inverters using AGM/VRLA charge setting
- Built-in protection for over-charge, over-dishcharge & over-temperature
- External cell balancer required when placing in series to ensure balancing
- Perfect replacement Lithium solution for upgrading your lead acid installation
Specifications
| Model | Hubble S-120 |
| Rated Capacity (5HR) | 120Ah |
| Nominal Voltage | 12.8V |
| Discharge Ending Voltage | 11.0V |
| Charging Limited Voltage | 14.4V |
| Max.Charging Current | 100A |
| Max.Continuous Discharging Current | 100A |
| Cell C Rating | 1.0C |
| Weight | Approx. 18Kg |
| Configuration | 4" in series with 4 banks in parallel for maximum 16 batteries |
| Parallel | Parallel up to 4 strings |
| Dimensions | 405mm x 173mm x 238mm (WxDxH) |
| Maximum DC Limits | Maximum 100 Amp Charge per bank & 100Amp discharge per bank |
| Cells | Prismatic LifePO4 |
| Design Life | +/- 15 years |
| Cycle life at 1C | +/- 2000 cycles |
| Certification | CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT1486-2015 |
| Outer Package Material | Black Polypropylene Plastic |
| Operating Temperature | |
| Charging | 0 to +55 degree Celsius |
| Discharging | -20 to +55 degree Celsius |
| Storage | -20 to +55 degree Celsius |
| Protection | Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection |
| Free Shipping | No |
|---|
