High-performance detector 12um
Compact size and design
9.5 hours of operational battery life
Stadia metric range finding

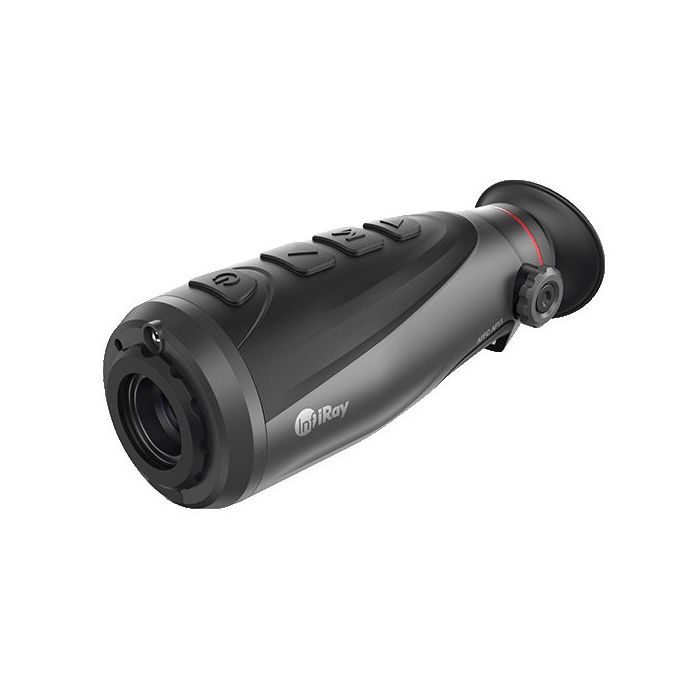

Introducing the InfiRay AFFO AL25 Thermal Imaging Monocular - 384x288, 1300m. An advanced, entry-level thermal imaging device designed for both novice and experienced users. It features a high-performance 12m uncooled Vox thermal imaging sensor, providing crisp and clear HD images. With a resolution of 384 x 288 and a detection range of up to 1300 meters, the AFFO AL25 allows users to identify distant targets effectively, making it an ideal choice for outdoor adventures, wildlife observation, and hunting.
This monocular's design prioritizes user comfort and portability. The rounded curve design fits the human hand shape, enhancing grip and ease of use during extended periods. Despite its compact size, the AFFO AL25 is packed with features, including stadia metric range finding for precise distance measurement and Picture-in-Picture (PIP) mode to highlight target details. The device also supports various hot target highlight modes, such as white-hot, black hot, red-hot, and colour palette, improving object detection and highlighting capabilities.
Durability and long-lasting performance are key attributes of the AFFO AL25. It offers up to 7.5 hours of continuous operation on a single charge, powered by a built-in Li-ion battery. The monocular is also equipped with a durable rigid plastic lens cap for enhanced protection and an IP67 rating for waterproofing, ensuring reliability in harsh environmental conditions. Additionally, it supports photo-taking and video recording with a built-in high-speed 32GB storage capacity, and Wi-Fi connectivity with the InfiRay Outdoor app for remote control and additional features.
Type | Uncooled Vox |
Resolution | 384 x 288 |
Pixel Pitch, um | 12 |
Netd, Mk | -/<40 |
Refresh Rate, Hz | 50 |
Objective Lens, Mm | 25 |
Field Of View, | 10.5 x 6.6 |
Magnification, X | 2.5 |
Digital Zoom, X | 1 / 2 / 4 |
Diopter, D | -7 - +2 |
Detection Range, M (Target Size:1.7Mx0.5M,P(N) 99%) | 1300 |
Display Type | AMOLED |
Display Resolution | 640 x 400 |
Battery Type / Capacity / Output Voltage | Built-in Li-ion Battery / 3.6Ah / 3.6V |
Working Hours (22C), H | 7.5 |
External Power Supply | 5V (Type-C) |
Ingress Protection Rating | IP67 |
Memory Capacity, Gb | 8 |
Wi-Fi / App | Support (InfiRay outdoor) |
Operating Temperature, C | -20 - +50 |
Weight, G | <350 |
Dimensions, Mm | 169 x 60 x 60 |
