High-performance Detector 12um
Compact Size and design
9.5 hours of operational battery life

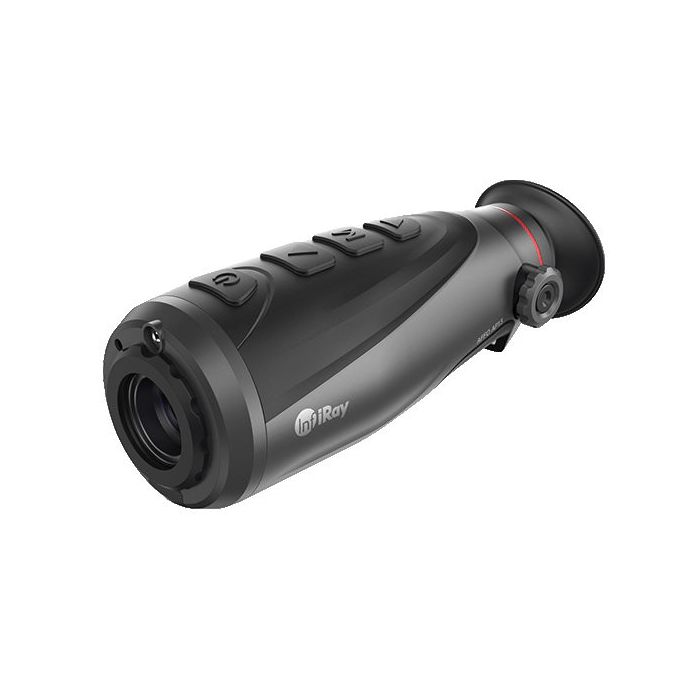

Introducing the InfiRay AFFO AP09 Thermal Imaging Monocular - 256x192, 460m. A sophisticated yet user-friendly device designed for those venturing into the world of thermal imaging. This entry-level monocular combines a sleek, modern design with a compact form factor, making it an excellent companion for outdoor adventures. The AFFO Series boasts a self-developed 12m uncooled Vox thermal imaging sensor, ensuring crisp and clear HD images. With a resolution of 256x192, this monocular delivers detailed visuals, essential for various applications including hunting, wildlife observation, and security.
A stand-out feature of the AFFO AP09 is its built-in high-speed 32GB storage capacity, which supports both photo-taking and video recording. This allows users to capture and store high-quality thermal images and videos directly on the device. The ergonomic design, featuring rounded curves, fits comfortably in the hand, enhancing usability during prolonged use. Weighing less than 340 grams and measuring 160 x 60 x 60 mm, it is easy to carry, ensuring you can bring it along on any expedition without hassle.
The AFFO AP09 is equipped with practical functions such as stadia metric range finding and Picture-in-Picture (PIP) mode. The stadia metric range finding aids in determining the distance to your target, providing a reference point for hunting and other activities. The PIP mode magnifies the screen at the cursor position by two times, highlighting the target and making it easier to observe details. Additionally, the device offers various display modes including white-hot, black hot, red-hot, and colour palette, enhancing object detection and highlighting capabilities.
This thermal monocular is designed for durability and versatility. It features a rugged lens cap made of durable rigid plastic for better lens protection and improved impact resistance. With an IP67 ingress protection rating, it is well-suited for use in harsh environments, including rainy conditions, thanks to its external screen that prevents water from entering the interface. The built-in Li-ion battery provides up to 9.5 hours of continuous operation, ensuring reliable performance during extended outings. The device supports external power supply via a Type-C port and is equipped with multiple travel charging headers to meet the needs of users worldwide.
Type | Uncooled Vox |
Resolution | 256 x 192 |
Pixel Pitch, um | 12 |
Netd, Mk | -/< 40 |
Refresh Rate, Hz | 25 |
Objective Lens, Mm | 9 |
Field Of View, | 19.4 x 12.2 |
Magnification, X | 1.3 |
Digital Zoom, X | 1 / 2 |
Diopter, D | -7 - +2 |
Detection Range, M (Target size:1.7Mx0.5M,P(N)99%) | 460 |
Display Type | AMOLED |
Display Resolution | 640 x 400 |
Battery Type / Capacity / Output Voltage | Built-in Li-ion Battery /3.6Ah / 3.6V |
Working Hours(22C), H | 9.5 |
External Power Supply | 5V(Type-C) |
Ingress Protection Rating | IP67 |
Memory Capacity, Gb | 8 |
Wi-Fi / App | Support(InfiRay outdoor) |
Operating Temperature, C | -20 - +50 |
Weight, G | <340 |
Dimensions,Mm | 160 x 60 x 60 |
