High-performance detector 12um
Compact size and design
9.5 hours of operational battery life
Stadia metric range finding

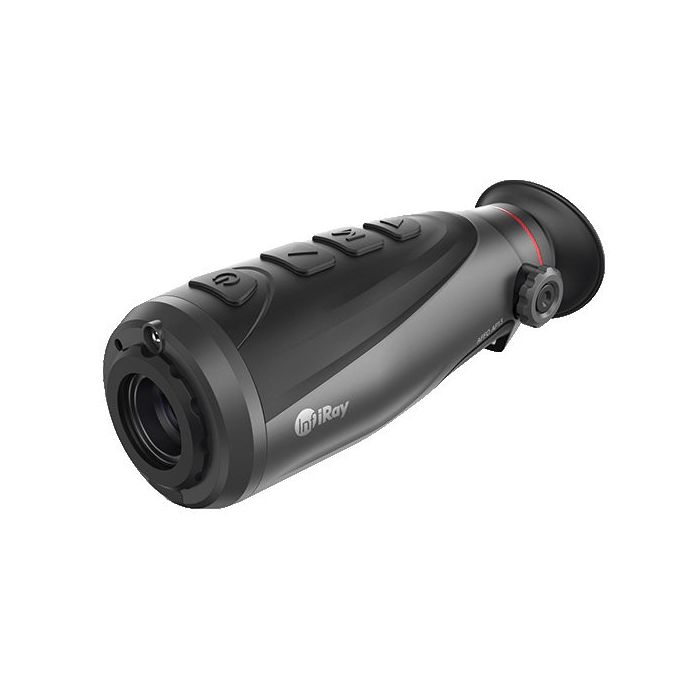

Introducing the InfiRay AFFO Ap13 Thermal Imaging Monocular - 256x192, 670m. A compact and user-friendly device designed for various outdoor activities, such as hunting, wildlife observation, and security. This entry-level thermal monocular combines a stylish design with a portable form factor, making it easy to carry on your adventures. The AFFO Series features a self-developed 12m uncooled Vox thermal imaging sensor that delivers crisp and clear HD images, ensuring high-quality visuals in diverse conditions.
Key features of the AFFO Ap13 include its resolution of 256x192 and a detection range of up to 670 meters, making it ideal for spotting targets from a distance. The device is equipped with a 13mm objective lens, providing a field of view of 13.5 x 8.4 degrees. With a magnification of 2.0x and digital zoom options of 1x and 2x, users can easily observe detailed images of distant objects. The monocular also supports photo-taking and video recording, with built-in high-speed 32GB storage capacity for capturing and storing thermal images and videos.
The ergonomic, rounded curve-design body of the AFFO Ap13 fits comfortably in the hand, enhancing user experience during prolonged use. The device is lightweight, weighing less than 340 grams, and its compact dimensions of 160 x 60 x 60 mm make it easy to transport. It features a robust and durable construction with a rigid plastic lens cap for added protection and an IP67 ingress protection rating, ensuring reliable performance in harsh environments, including rainy conditions.
The AFFO Ap13 offers several practical functions to enhance usability, such as Stadia metric rang finding and Picture-in-Picture (PIP) mode. Stadia metric rang finding helps determine the distance to your target, providing a useful reference for hunting and other activities. PIP mode magnifies the screen at the cursor position by two times, highlighting the target and making it easier to observe fine details. The device also includes hot target highlight modes with options like white-hot, black hot, red-hot, and colour palette, improving object detection and highlighting capabilities.
Power efficiency is a key feature of the AFFO Ap13, with its built-in Li-ion battery offering up to 9.5 hours of continuous operation. The device supports external power supply via a Type-C port, ensuring extended use when needed. It also comes with multiple travel charging headers to accommodate users in different regions.
Type | Uncooled Vox |
Resolution | 256 x 192 |
Pixel Pitch, um | 12 |
Netd, Mk | -/<40 |
Refresh Rate, Hz | 25 |
Objective Lens, Mm | 13 |
Field Of View, | 13.5 x 8.4 |
Magnification, X | 2.0 |
Digital Zoom, X | 1 / 2 |
Diopter, D | -7 - +2 |
Detection Range, M (Target size:1.7Mx0.5M,P(N) 99%) | 670 |
Display Type | AMOLED |
Display Resolution | 640 x 400 |
Battery Type / Capacity / Output Voltage | Built-in Li-ion Battery / 3.6Ah / 3.6V |
Working Hours (22C), H | 9.5 |
External Power Supply | 5V (Type-C) |
Ingress Protection Rating | IP67 |
Memory Capacity, Gb | 8 |
Wi-Fi / App | Support (InfiRay outdoor) |
Operating Temperature, C | -20 - +50 |
Weight, G | <340 |
Dimensions,Mm | 160 x 60 x 60 |
Free Shipping | No |
---|
