High-performance detector 12um
Compact size and design
9.5 hours of operational battery life
Stadia metric range finding

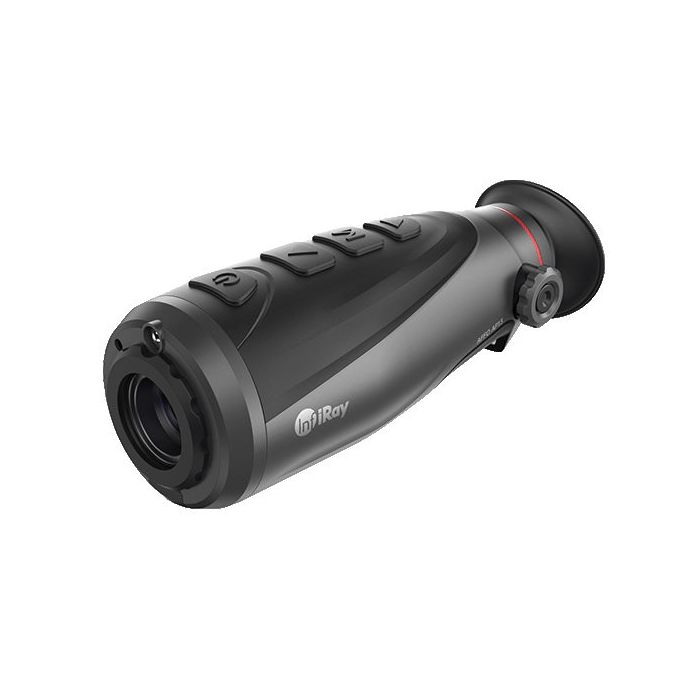

Introducing the InfiRay AFFO AL19 Thermal Imaging Monocular - 384x288, 980m. A user-friendly, entry-level thermal monocular designed for various outdoor activities. Featuring a sleek design and compact size, it is easy to carry and comfortable to hold. The AFFO Series uses a self-developed 12m uncooled Vox thermal imaging sensor to produce high-quality HD images. The device supports photo-taking and video recording with its built-in high-speed 32GB storage capacity.
Key features of the AFFO AL19 include a resolution of 384x288 and a detection range of up to 980 meters, making it ideal for spotting distant targets. The device is equipped with a 19mm objective lens, providing a field of view of 13.8 x 8.7 degrees. With a magnification of 2.0x and digital zoom options of 1x, 2x, and 4x, users can easily observe detailed images of distant objects.
The ergonomic, rounded curve-design body fits comfortably in the hand, enhancing user experience during prolonged use. The device is lightweight, weighing less than 350 grams, and its compact dimensions of 169 x 60 x 60 mm make it easy to transport. It features a robust and durable construction with a rigid plastic lens cap for added protection and an IP67 ingress protection rating, ensuring reliable performance in harsh environments, including rainy conditions.
The AFFO AL19 offers several practical functions to enhance usability, such as Stadia metric range finding and Picture-in-Picture (PIP) mode. Stadia metric range finding helps determine the distance to your target, providing a useful reference for hunting and other activities. PIP mode magnifies the screen at the cursor position by two times, highlighting the target and making it easier to observe fine details. The device also includes hot target highlight modes with options like white-hot, black hot, red-hot, and colour palette, improving object detection and highlighting capabilities.
Power efficiency is a key feature of the AFFO AL19, with its built-in Li-ion battery offering up to 7.5 hours of continuous operation. The device supports external power supply via a Type-C port, ensuring extended use when needed. It also comes with multiple travel charging headers to accommodate users in different regions.
Type | Uncooled Vox |
Resolution | 384 x 288 |
Pixel Pitch, um | 12 |
Netd, Mk | -/<40 |
Refresh Rate, Hz | 50 |
Objective Lens, Mm | 19 |
Field Of View, | 13.8 x 8.7 |
Magnification, X | 2.0 |
Digital Zoom, X | 1 / 2 / 4 |
Diopter, D | -7 - +2 |
Detection Range, M (Target Size:1.7Mx0.5M,P(N)99%) | 980 |
Display Type | AMOLED |
Display Resolution | 640 x 400 |
Battery Type / Capacity / Output Voltage | Built-in Li-ion Battery / 3.6Ah / 3.6V |
Working Hours(22C), H | 7.5 |
External Power Supply | 5V (Type-C) |
Ingress Protection Rating | IP67 |
Memory Capacity, Gb | 8 |
Wi-Fi / App | Support (InfiRay outdoor) |
Operating Temperature, C | -20 - +50 |
Weight, G | <350 |
Dimensions,Mm | 169 x 60 x 60 |
Free Shipping | No |
---|
