384x288 Sensor Resolution
Netd <20mk
2-8 Magnification

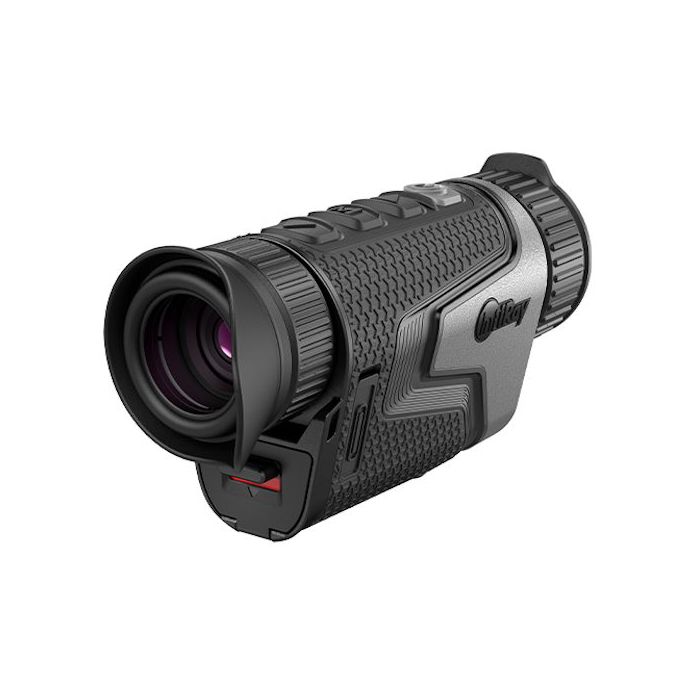

Introducing the InfiRay IRIS IL19 Thermal Imaging Monocular. A top-tier thermal imaging device designed to offer exceptional performance in a compact and portable package. Featuring a high-resolution 384x288@12m self-developed sensor with a NETD of less than 20mK, this monocular ensures superior image clarity even under harsh conditions. The IRIS IL19 is equipped with a cutting-edge F0.9 lens, which allows for 20% more light transmission compared to conventional F1.0 lenses, resulting in brighter and clearer images. The latest Reality+ image enhancement algorithms further improve image quality and reduce noise, making the IRIS IL19 an ideal tool for outdoor enthusiasts, hunters, and security professionals.
One of the stand-out features of the IRIS IL19 is its ergonomic design and user-friendly operation. The eyepiece with a 10mm exit pupil diameter ensures the best viewing angle and visibility from any position. The monocular's silent buttons prevent any noise that could disturb prey, making it perfect for stealth operations. Additionally, it offers a variety of colour palettes, including red and green options that help prevent eye fatigue during extended use. Weighing in at just 330 grams and smaller than a cellphone, the IRIS IL19 is incredibly portable, and its IP67 water resistance rating guarantees reliability in challenging environmental conditions.
Power and convenience are also key aspects of the IRIS IL19. It is powered by a replaceable 18650 Li-ion battery, which provides up to 5 hours of continuous usage on a single charge. This replaceable battery feature ensures that you can easily swap out batteries for extended use in the field. The device also supports photo-taking and video recording with its 32GB built-in memory, and it includes a microphone for audio capture. With a detection range of up to 980 meters and a magnification range of 2x to 8x, the IRIS IL19 offers versatile performance for a wide range of applications. Its high-resolution AMOLED display (1024x768 pixels) ensures a clear and vibrant viewing experience, making the InfiRay IRIS IL19 Thermal Imaging Monocular a reliable and powerful tool for all your thermal imaging needs.
Detector Specifications: | |
Resolution pixels | 384x288 |
Pixel, Um | 12 |
Netd, Mk | 20 |
Frame Rate, Hz | 50 |
Optical Specifications: | |
Objective Lens, Mm | 19 F0.9 |
Field Of View (Hxv), | 13.8x10.4 |
Linear Field Of View (Hxv), M At 100M | 24x18 |
Magnification, X | 2-8 |
(Target Size: 1.7M X 0.5M, P(N)99%) | 980 |
Exit Relief, Mm | 25 |
Exit Pupil Diameter, Mm | 10 |
Diopter, D | -5 - +5 |
Display Specifications: | |
Type | AMOLED |
Resolution, Pixels | 1024x768 |
Battery Power Supply: | |
Battery | Replaceable Li-ion battery 18650 / 3200mAh |
Max. Operation Time, (T22) H | 5 |
Physical Specifications: | |
Mic | Support |
Memory Capacity, Gb | 32 |
Ip Rating | IP67 |
Operating Temperature, C | -20 - +50 |
Weight, G | -/<330 |
Dimension, Mm | -/<143x47x7 |
Free Shipping | No |
---|
