Ultra-clear thermal imaging
Mastering distances with integrated lrf
Navigating accuracy with ballistic calculation

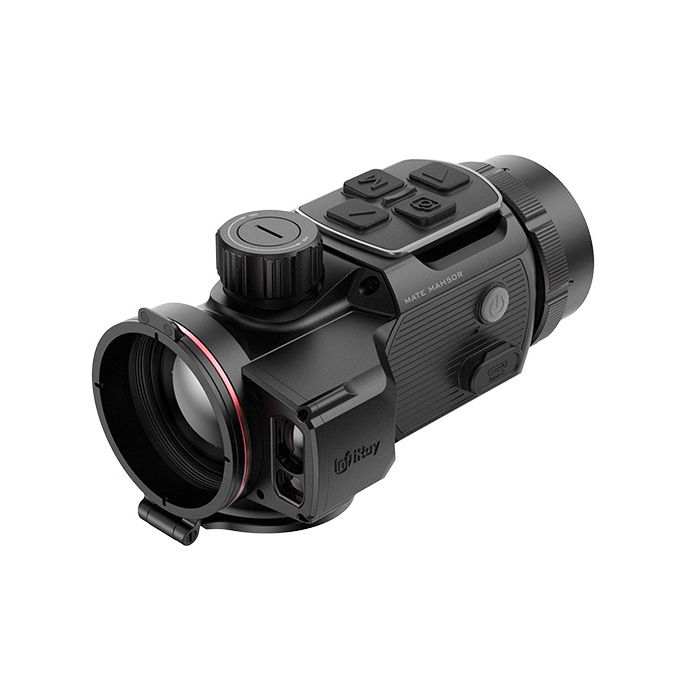

Introducing the InfiRay Mate Mah50R Thermal Imaging Attachment - 640x512, 2600m. Experience a technological transformation in traditional sighting with the InfiRay Mate MAH50R Thermal Imaging Attachment. This innovative device features built-in Laser Range Finder (LRF) and ballistic calculation capabilities, significantly enhancing the hunting experience. Equipped with InfiRay's high-end proprietary thermal sensor, boasting a 640x512 resolution at 12um and NETD -/<18mk, the MAH50R delivers crystal-clear thermal imaging. It adapts seamlessly to day scopes with up to 10x magnification, maintaining excellent image detail even at high magnifications.
The MAH50R introduces an integrated Laser Range Finder capable of measuring distances up to 1,200 meters with high precision. This feature provides hunters with dynamic display and accurate distance measurement, enabling quick and precise targeting. Additionally, the device supports strategic ballistic calculations, ensuring each shot is delivered accurately. Hunters can predict bullet or arrow trajectories with greater precision, enhancing safety and increasing the likelihood of successful hits.
Constructed with a robust magnesium alloy and rigid structural connections, the MAH50R is highly shock-resistant, meeting the high-precision standard of 'POI1MOA'. This ensures stability and precision in every hunting endeavour. The device also includes additional magnetic battery packs, making it easy to carry and install, thus extending hunting time without worrying about battery depletion. The ultra-clear thermal imaging, combined with masterful distance measurement and precise ballistic calculations, makes the MAH50R an essential tool for any serious hunter.
The MAH50R supports photo, video, and microphone functions, with a built-in 32GB memory to store all recordings. The OLED display with a resolution of 1024x768 pixels ensures a high-quality viewing experience. The device is IP67 rated for water and dust resistance and operates effectively in temperatures ranging from -20 to +50 degrees Celsius. With a weight of just 500 grams and compact dimensions of 147x75x73 mm, the MAH50R is both lightweight and portable, making it a versatile and powerful addition to any hunting gear.
Detector Specifications | |
Type | Vox |
Resolution, Pixel | 640x512 |
Pixel Size, Um | 12 |
Netd, Mk | -/<18 |
Frame Rate, Hz | 50 |
Optical Specifications | |
Objective Lens, Mm | 50mm/F1.1 |
Field Of View (Hxv) | 8.8 x 7.0 |
Linear Field Of View (Hxv), M At 100M | 15.4 x 12.3 |
Built-In Battery / 1500Mah + Ibp-6 Infiray Battery Pack / 1100Mahx2 | Attachment: 1 |
Monocular: 1x/2X/4X | |
Detection Range, M (Target Size: 1.7Mx0.5M, P(N)99%) | 2600 |
Display Specifications | |
Type | AMOLED |
Resolution, Pixels | 1024x768 |
Battery Power Supply | |
Battery | Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH2 |
Max. Operating Time (22),H | 4+5 |
External Power Supply | 5V (Type C) |
Physical Specifications | |
Wi-Fi/App | Support (InfiRay outdoor) |
Photo/Video Recorder | Support |
Mic | Support |
Memory Capacity | 32GB |
Ip Rating | IP67 |
Operating Temperature, | -20 - +50 |
Weight, G | 500g |
Dimension, Mm | 147x75x73 |
Connections And Compatibilities | |
Max. Recoil Power On Rifled Weapon (Eo), Joules | 6000 |
Recommended Magnification Of The Day Sight, X | G1/G2: 1x-5x |
G3/G4: 6x-10x | |
Click Value@100M, Cm | 1.6 |
Functions | |
Laser Rangefinder | Support, 1200m |
Ballistic Calculation | Support |
