Ultra-precision
Lightweight & compact size
Powerful detector
Distortion-free

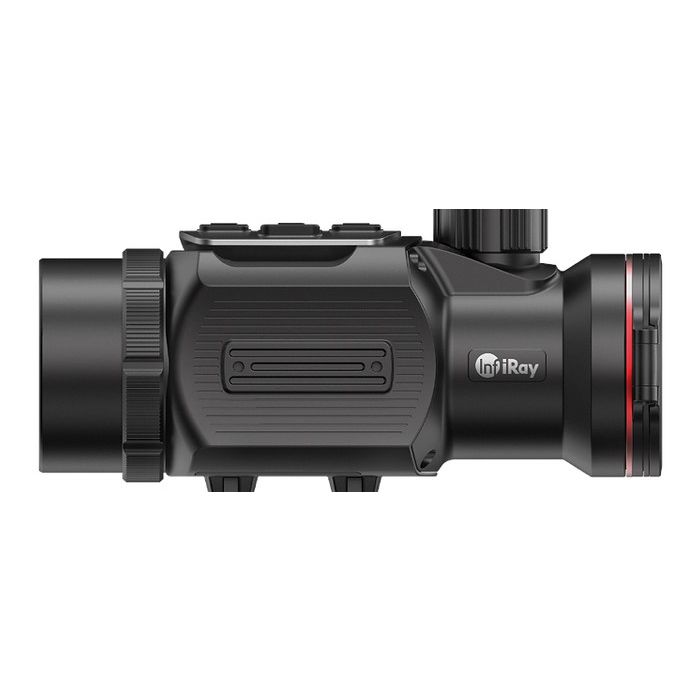

Introducing the Infiray Mate Mal25 Thermal Imaging Attachment - 384x288, 1298m. Where precision meets portability, offering a compact yet powerful solution for thermal imaging needs. Housed in a lightweight magnesium alloy, the MAL25 reduces weight by 50% while enhancing precision. The attachment supports practical features such as removable buttons, an optional Laser Range Finder (LRF), and a monocular extension, making it the ideal companion for users seeking both compact size and exceptional value.
Despite its compact design, the MAL25 does not compromise on image quality. It boasts a high-performance 384x288 resolution detector with a pixel size of 12m and a NETD of less than 30mk. The optical imaging system ensures a distortion-free image even when used with a 10x daytime scope. Additionally, the sense-based algorithms improve image quality by setting appropriate preset parameters for different environments such as forests, plains, and cities. This ensures optimal performance in a variety of settings.
The MAL25's innovative design includes removable buttons that can be positioned anywhere on the rifle for easy control, even when the user's focus is on the target. The remote control, supported by an ultra-low power consumption solution, attaches magnetically for automatic charging. The Mate series also includes a power bank as a complementary accessory, extending the battery life by approximately seven hours. The LRF extension, which can be equipped optionally, not only enhances accuracy but also serves as a power bank, extending the MAL25's four-hour battery life.
InfiRay's MAL25 is designed to meet high-precision requirements, maintaining a "POI1MOA" accuracy even when matched with high-calibre rifles. The lightweight and compact design, combined with powerful detection capabilities and versatile features, make the MAL25 a valuable tool for hunters and outdoor enthusiasts. Whether used as an attachment or in monocular mode, the MAL25 offers ultra-precision, reliable performance, and user-friendly operation, all in a robust, IP67-rated body designed for harsh conditions.
Detector Parameters | ||
Resolution, Pixels | 384 x 288 | |
Pixel Size, Um | 12 | |
Netd, Mk | -/< 30 | |
Frame Rate, Hz | 50 | |
Optics Parameters | ||
Objective Lens, Mm | 25 | |
Field Of View (H X V), Degrees / M At 100 M | 10.6 x 7.9 / 18.4 x 13.8 | |
Recommended Magnification Of The Day Scope, X | G1/G2/G3/G4:1 - 5 | |
E-Zoom | Attachment mode: x1 | |
Monocular Mode: X1/X2/X4 | ||
Detection Range, M | (Target size: 1.7mx0.5m, P(n)99%) | 1298 |
Display Parameters | ||
Type | OLED | |
Resolution, Pixels | 1024 x 768 | |
Electrical Parameters | ||
Battery | Built-in battery + Infiray battery Pack | |
Max. Battery Life, H | 5 + 7.5 | |
Usb Interface | Type-C | |
Physic Parameters | ||
Body Material | Magnesium Alloy | |
Ip Rating | IP67 | |
Remote Control | Support | |
Built-In Memory, Gb | 32 | |
Aim Point, Moa | 1.5 | |
Weight, G | 460 | |
Dimension, Mm | 132 x 62 x 68 | |
Adapter Ring | M52x0.75 |
