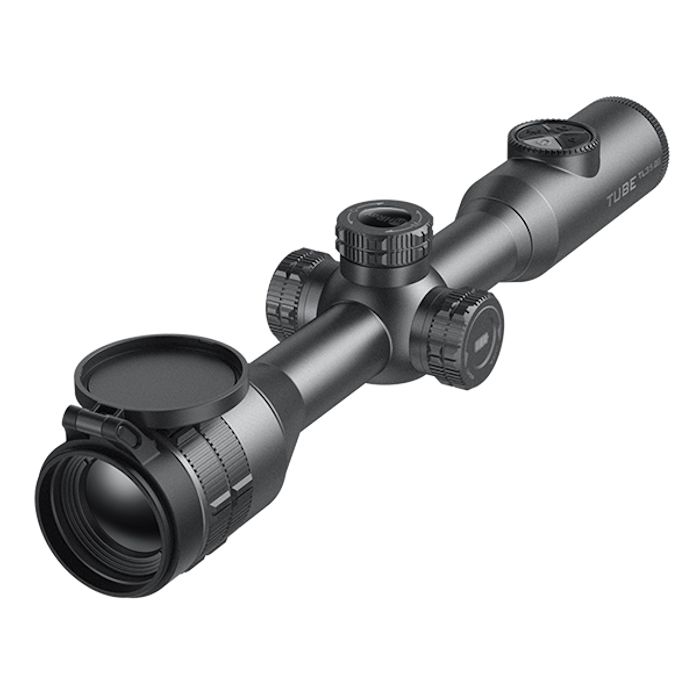

The Infiray Tube TL50 Thermal Imaging Riflescope - Black adds new functions to the former TL35 such as an expandable Laser Ranging Function to provide distance measurement, the upgraded OLED display and the built-in Mic to record sound. After the amelioration, the Tube TL50 will better serve as your night tool while keeping a traditional day scope appearance.
The TL50 comes with an option of an expandable Laser Ranging Finder Function. TL50/TL35V2 is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting. TL50 is equipped with the practical stadiametric rangefinding function to provide position reference for hunting. It will be automatically turned off. once the bluetooth LRF is connected.
The TL50 adopts a 1024X768 AMOLED display instead of a 1280x960 LCOS display of TL35. The imaging quality will be improved a lot for an AMOLED display will offer better layers and contrast.The imaging quality will be improved a lot for an AMOLED display will offer better layers and contrast. Featuring the self-researched, high-performance 12um detector, TL50/TL35V2 is able to provides high quality and detailed images. Built-in ultra-clear mode is designed for bad weather conditions, such as heavy fog and rain. It will make the Tube series more sensitive and capable of providing more details.
Equipped with a MIC function, therefore customers can record the voice too when recording. The working time of built-in battery is up to 12 hours, and the replaceable 18500 battery will provide an additional 3 hours of operation. Comes with 32GB of memory for storing 57,000 images or 48 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app.
Type | Uncooled Vox |
Resolution Pixels | 384X288 |
Pixel Size | 12um |
Netd | 40mK |
Frame Rate | 50Hz |
Objective Lens | 50mm |
Field Of View (HXV) | 5.2x4.0 |
Linear Field Of View (HxV) m At 100M | 9.2x6.9 |
Optical Magnification, X | 4.0 |
Digital Zoom, X | 14 |
Eye Relief | 70mm |
Exit Pupil Diameter | 6mm |
Diopterd | -4+4 |
Detection Range, M (Target Size: 1.7Mx0.5M, P(N)99%) | 2600 |
Type | AMOLED |
Resolution,Pixels | 1024x768 |
Battery | Built-in battery/6600mAh + replaceable 18500 battery/3.7V |
Max. Operating Time (T22C), H | 15 |
External Power Supply | 5V (Type C) |
Wi-Fi/App | Support (InfiRay outdoor) |
Photo/Video Recorder | Support |
Mic | Support |
Bluetooth | Support |
Memory Capacity | 32GB |
IP Rating | IP67 |
Operating Temperature, C | -20 +50 |
Max. Recoil Power On Rifled Weapon (Eo), Joules | 6000 |
Compatible Mounts | Standard 30 mm rings |
Weight (Without The 18500 Battery), G | <985 |
Dimension | 390x 85 x 75mm |
Free Shipping | No |
---|
