640x512 Sensor Resolution
1300 / 2600m Detection Range
2-8 / 4-16 Magnification
-/< 25 NETD

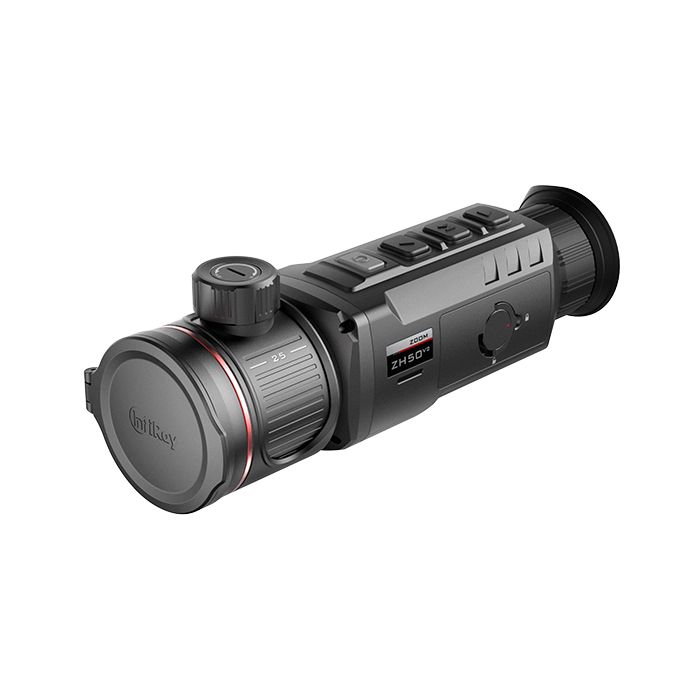

Introducing the Infiray Zoom ZH50 V2 Thermal Imaging Monocular. An advanced optical device designed for professional hunters and outdoor enthusiasts. This state-of-the-art monocular features a dual-field of view system that allows for seamless switching between wide and narrow fields of view with just a twist of the focus ring. This innovative design ensures sharp image quality without the need for refocusing, making it easier to track and identify targets quickly and efficiently.
Equipped with an uncooled vox 12m 640x512 high-resolution sensor, the ZH50 V2 offers exceptional thermal sensitivity with a NETD of less than 25mK. This powerful sensor, combined with advanced image processing algorithms, delivers superior image clarity and detail even in challenging environmental conditions such as fog and rain. The monocular also boasts a 1440x1080 FHD AMOLED display, providing high-contrast and vivid imagery that enhances the overall observation experience.
One of the stand-out features of the ZH50 V2 is its impressive detection range. With a focal length of 25mm for a wider field of view and 50mm for a narrower field of view, this monocular can detect a human-sized target up to 2600 meters away. The device also supports 2x and 4x base magnification, allowing for clear identification of distant targets. Additionally, the built-in ultra-clear mode enhances object identification capabilities by providing a more detailed field of view.
Designed for long-term use in the field, the ZH50 V2 includes a replaceable, 4400mAh lithium battery pack that offers up to 20 hours of continuous operation. The device is also equipped with a built-in microphone for synchronised audio recording, 32GB of internal memory for storing photos and videos, and a Wi-Fi module for easy connectivity and media transmission via the InfiRay Outdoor app. With its rugged IP67-rated construction, the ZH50 V2 is built to withstand harsh outdoor conditions, making it an essential tool for serious hunters and outdoor professionals.
Detector Specifications | |
Type | Uncooled Vox |
Resolution pixels | 640x512 |
Pixel Size, um | 12 |
Netd mk | -/< 25 |
Frame Rate, hz | 50 |
Optical Specifications | |
Objective Lens, mm | 25/50 |
Field Of View, hxv | 17.5x13.1 / 8.8x6.6 |
Linear Field Of View, hxvm At 100M | 31x23 / 15x12 |
Magnification, X | 2-8 / 4-16 |
Detection Range, m, target Size1.7Mx0.5Mp(N)99% | 1300 / 2600 |
Eye Relief, mm | 20 |
Exit Pupil Diameter, mm | 5.5 |
Diopter, D | -5 - +5 |
Display Specifications | |
Type | FHD AMOLED |
Resolution, Pixels | 1440x1080 |
Battery Power Supply | |
Battery | Replaceable li-ion battery Pack IBP-1/4400Ah |
Max. Operating Time (22)H | 10 |
External Power Supply | 5V (Type-C) |
Physical Specifications | |
Wi-Fi/App | Support (InfiRay outdoor) |
Photo/Video Recorder | Support |
Mic | Support |
Memory Capacity | 32GB |
Ip Rating | IP67 |
Operating Temperature | -20 - +50 |
Weight, g | -/<710 |
Dimension, mm | 220x59x75 |
