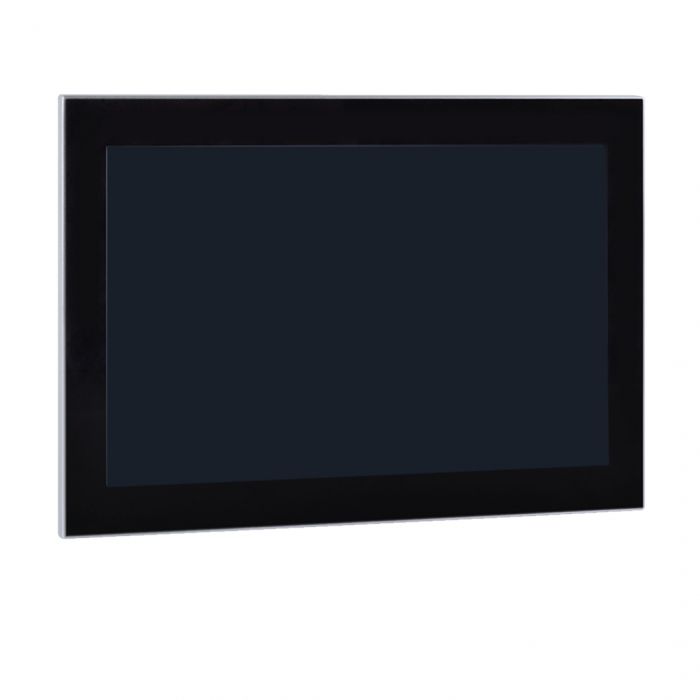

IPFlex CTP Touch Panel - 17.0" Display, 256GB SSD
R66,189.00
SKU
IPFCTP61702568A10
Description
The IPFlex CTP Touch Panel - 17.0" Display, 256GB SSD has capacitive sensing technology that provides a more responsive touch interface than its predecessor, resistive touch. As the screen is equipped with controllers that sense the point of contact, which allows for multiple touch points that are registered at any given moment.
Capacitive Touch Screen monitors provide reliable operations monitoring in robust locations or factory environments. The front panels are built with an IP65 waterproof rating, can withstand high temperatures whilst maintaining screen clarity and shock / shake resistant. Making the Capacitive Touch Screen monitors the right choice for the severe conditions found in an automation environment and are certified for hazardous duty.
Features
- 8GB Ram
- 256GB SSD Storage
- Win 10
- 17.0" Screen
- Touch Screen
- Reliable operations monitoring
- Made for robust locations or factory environments
- IP65 waterproof rating
- Withstand high temperatures
Specifications
| CPU | Intel Core i5-7200U |
| Base Frequency | Dual Core 2.5 GHz |
| L3 Cach | 3MB |
| Chipset | Integrated PCH-LP |
| Memory | 1x 204 - pin DDR3L - 1333MHz SODIMM, support up to 8GB |
| Storage Medium | 1x 2.5 SATA bay + 1x mSATA |
| LAN | 2x Intel i210 1000Mbps RJ-45 with surge protection, lightning protection design and 15KV ESD protection |
| Audio | Realtek ACL662 Audio controller |
| USB | 4x USB3.0 / 2.0 / 1.1 |
| COM | 2x RS - 232 / RS - 485 with surge protection, RS485 support automatic flow control |
| Expansion Slot | 1x Mini-PCIe slot, extensible 3G, WIFI wireless card. 1x Easy BUS slot |
| Rear I/O | DVI-I / 2 x GLAN / 4x USB / 2x COM / 2x PS2 / Line-out / Mic-in |
| OS | Windows 7 / Windows 7 Embedded / Windows 8 / Windows10 (Preloaded) / Ubuntu / VXWORKS / QNX |
| Input Voltage | 12 - 24V DC 10%, reverse polarity protection, overvoltage protection, overcurrent protection |
| MTBF | 30000hrs |
| Luminance | 250CD / m2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | (L) 85 / (R) 85 / (T) 80 / (B) 80 |
| Touchscreen Type | Multi-point capacitive touch screen |
| Multi-touch | 10 points (windows system) |
| Surface Hardness | Mohs Number 7 |
| Work Temperature | 045 Degrees Celsius |
| Storage Temperature | -2060 Degree Celsius |
| Relative Humidity | 595% (Non condensation) |
| Ingress Protection | Front panel IP65 |
| Free Shipping | No |
|---|
