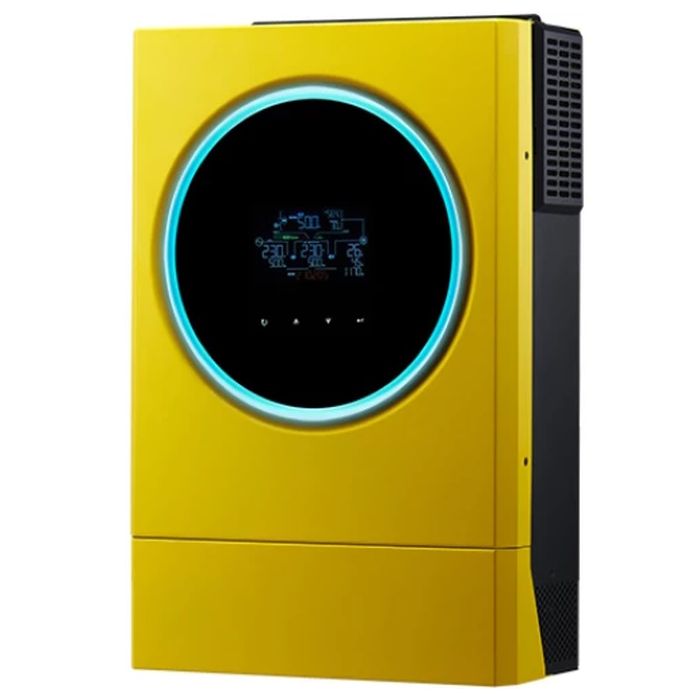

Kodak Solar Off-Grid Inverter - 6.2kW, 48V, Yellow

R14,799.00
SKU
OGPLUS62
  • High PV input voltage range
  • Removable LCD control module with multiple communications
  • Selectable high power charging current
  • Built-in Wi-Fi for mobile monitoring
Confirm Availability
In stock
Shipping restrictions apply.
Safe & Secure Shopping
Satisfaction Guaranteed
Manufacturer's Website



Description

The Kodak Solar Off-Grid Inverter - 6.2kW, 48V, Yellow is a high-performance inverter designed for use in off-grid solar systems. It features a maximum power output of 6.2kW and operates at a voltage of 48V DC, making it suitable for use with a wide range of solar panels and battery banks.

The inverter is equipped with advanced MPPT (Maximum Power Point Tracking) technology, which optimizes the performance of your solar panels by ensuring that they are always operating at their maximum power output. It also has a built-in battery charger that allows you to charge your battery bank using solar power.

The inverter is designed to be used in off-grid solar systems, which means that it can operate independently of the utility grid. This makes it an ideal choice for remote locations or for use in emergency backup power systems.

The KODAK Solar Off-Grid Inverter 6.2kW 48V is built to last, with a rugged, corrosion-resistant aluminium housing that can withstand harsh weather conditions. It also has a built-in LCD display that provides real-time information on the status of your system, including battery voltage, output power, and operating mode.



Features

  • Zero (0ms) transfer time to protect mission-critical loads such as servers and ATMs
  • High PV input voltage range
  • Removable LCD control module with multiple communications
  • Selectable high power charging current
  • Built-in Wi-Fi for mobile monitoring
  • Selectable input voltage range for home appliances and personal computers
  • Configurable AC/Solar input priority via LCD setting
  • Reserved communication port for BMS (RS485 or CAN-BUS)
  • Parallel operation up to 9 units
  • Dual output for smart load control



Specifications

Rated Power 6200VA/6200W.
Parallel Capability Up to 9 units
Voltage 230 VAC.
Voltage Range 110-280 VAC
Frequency Range 50 Hz/60 Hz (Auto sensing) +-4Hz
THDi <10%
AC Voltage Regulation (Batt. Mode) 230VAC +- 5%
Frequency Range (Synchronized Range) 46 - 54 Hz or 5664 Hz
Frequency Range (Batt. Mode) <3 % THD (Linear Load) 5 % THD (Non-linear Load)
Transfer Time (AC Mode to Batt. Mode) 0ms
Transfer Time (Inverter to Bypass) 4 ms (Typical)
Waveform Pure sine wave
Battery Voltage 40 - 66 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC
Solar Charger Type MPPT
Maximum PV Array Power 7000W
MPP Range @ Operating Voltage 120 - 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
MPPT Maximum Input Current 18 A
Number Of MPP Trackers 1
Maximum Solar Charge Current 120 A
Maximum AC Charge Current 120 A
Dimension, D x W x H 140 x 295 x 468mm
Net Weight (kgs) 12kg
Communication Interface USB/RS232/RS485/Wifi/Dry contact
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10 C to 50 C
Storage Temperature -15 C to 60 C
