Wi-Fi hot spot
Digital zoom from 0.6x to 2.4x
8GB internal memory
Waterproof up to 3.3ft depth

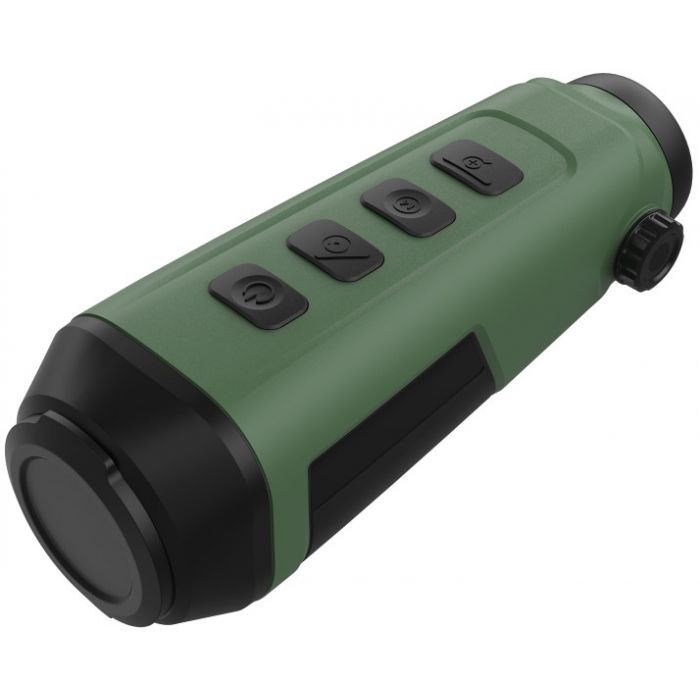

Introducing the Konus Flame 0.6-2.4x Thermal Monocular - 160x120 Pixels. A highly versatile and compact thermal imaging device, ideal for outdoor enthusiasts, hunters, and security professionals. With a resolution of 160x120 pixels and a high-sensitivity detector, it provides clear thermal signatures, making it effective for identifying both people and vehicles at significant distances. The device features a digital zoom range from 0.6x to 2.4x, allowing users to observe details up close while maintaining high image quality. Additionally, the monocular offers four different thermal palettes (Black Hot, White Hot, Red Hot, and Fusion), catering to various viewing conditions and personal preferences.
Equipped with a photo and video recording function, the Konus Flame enables users to capture and save their thermal imaging experiences with ease. With 8GB of internal memory, there's ample space for recorded content. This device also includes Wi-Fi capability, allowing for real-time transfer of thermal images to a smartphone or tablet, enhancing convenience and sharing options for users. Its impressive detection range of up to 559 meters (1833.9 feet) for standard-sized vehicles and 200 meters (656.1 feet) for humans ensures effective monitoring, while recognition and identification capabilities further enhance its utility.
Designed for durability, the Konus Flame is waterproof up to 3.3 feet (1 meter) and rated at IP-67, making it suitable for various outdoor environments. The built-in 18650 lithium battery allows for up to 10 hours of continuous use, depending on operational settings, ensuring that it can keep up with extended outdoor adventures. Weighing just 250g (8.81oz) and measuring 158.3mm x 61mm x 57mm (6.23 x 2.40 x 2.24), this thermal monocular is both lightweight and compact, making it easy to carry and handle during outings while delivering exceptional performance.
Detection Range (Standard Car Size) | 559M - 1833.9FT |
Detection Range (Average Human Size) | 200M - 656.1FT |
Recognition Range (Standard Car Size) | 140M - 45 FT |
Recognition Range (Average Human Size) | 46M - 150.9FT |
Identification Range (Average Car Size) | 70M - 229.6FT |
Identification Range (Average Human Size) | 23M - 75.4FT |
Weight | 250G - 8.81OZ |
Length | 158.3MM - 6.23" Inch |
Thermal Module: | |
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
Max Resolution | 160x120 |
Pixel Interval | 17um |
Response Waveband | 8 um to 14 um |
Netd | less than 35mk (at 25C), F1.0 |
Lens (Focal Length) | 6.2mm |
Field Of View | 14.7x18.7 degrees (Hxv) |
Digital Zoom | from 0.6x to 2.4x |
Aperture | F1,1 |
Magnification | 0.6x to 2.4x |
Image Display | |
Monitor | 0.2 inch, LCOS, 720x540 |
Ffc (Flat Field Correction) | Auto, Manual, External Correction |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
Frame Frequency | 50Hz |
Smart Function: | |
Highest Temperature Spot Tracking | Yes |
Wi-Fi Hot Spot: Yes stand-By Mode | Yes |
System: | |
Storage | Buit-in Memory Module (8GB) |
Record Video | Yes |
Capture Snapshot | Yes |
Power Supply: | |
Battery Type | Built-in 18650 Lithium Battery |
Battery Operating Time | 10 Hrs. Continuously running with CVBS and WI-FI hot spot off (at 25C) |
7.5 hours continuous running with CVBS and Wi-Fi hot spot on (at 25C) | |
Battery Capacity Display | YES |
General: | |
Power | 5VDC/2 a, 1.5w, Type-C interface |
Working Temperature | -20C to 55C (-4F to 131F) |
Water-resistance | IP-67 |
Dimension | 158.3mmx61mmx57mm (6.23"x2.40"x2.24" Inch) |
Weight | 250g (0.55lb) |
Free Shipping | No |
---|
