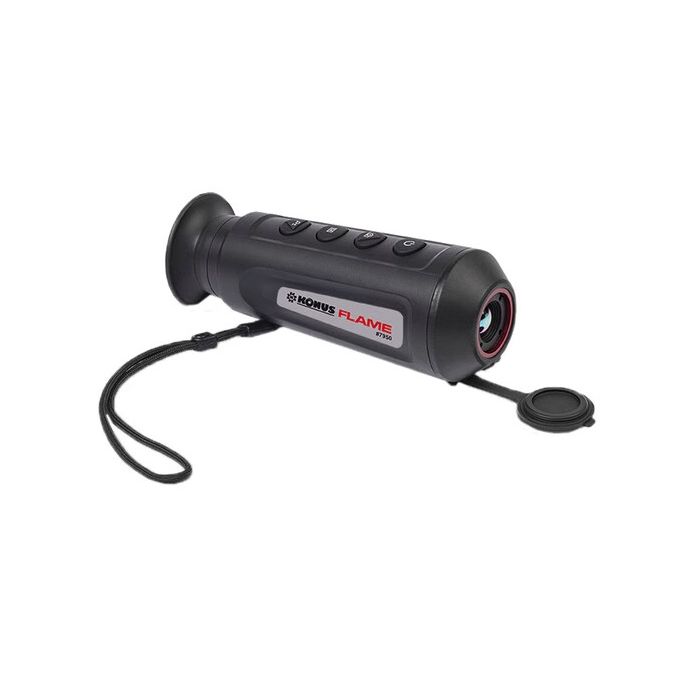

Handheld thermal monocular camera 160x120 pixels resolution, high sensitivity detector Built-in rechargeable lithium battery Wi-Fi hot spot
Whether you're a military or law enforcement officer, a security professional, a night hunter, or simply curious about what goes on in the dark, you can observe and record nighttime activity with this Konus Flame Digital Thermal Imaging Monocular. Equipped with a 160 x 120 thermal imaging sensor that converts heat signatures to imagery, the Flame can zoom in or out as needed with 0.6-2.4x digital magnification and displays images on a 0.2" LCOS screen at 1024 x 768 resolution. The Flame has a detection/recognition/identification range of 218/50/25 yards for a person and 611/153/77 yards for a vehicle. You can store images and video you capture in the device's 16 GB onboard memory, or share what you capture via Wi-Fi. The imagery is displayed in your choice of four color palettes: black hot, white-hot, red-hot, and fusion. The Flame runs on a built-in rechargeable 18650 battery and comes with a carry case and lens covers. At 6.2" long and 8.8 ounces, this unit delivers serious capability, yet is designed to be easily carried and stored.
Configuration | Monocular |
Sensor Size | 160 x 120 |
Display | 720 x 540 |
Refresh Rate | 50 Hz |
Pixel Size | 17 m |
Spectral Range | 8 to 14 m |
Thermal Sensitivity | <35 mK at f/1.0, 77F / 25C |
Detection Range | Human Detection: 218.8 yd / 200 m Human Recognition: 50.3 Yd / 46 M Human Identification: 25.2 Yd / 23 M Vehicle Detection: 611.5 Yd / 559 M Vehicle Recognition: 153.2 Yd / 140 M Vehicle Identification: 76.6 Yd / 70 M |
Magnification | 0.6 to 2.4x |
Lens System | 6.2 mm |
Angle Of View | 14.7 x 18.7 |
Storage | 8 GB via Built-In Memory |
Wi-Fi | Yes |
Bluetooth | None |
Connections | 1 x USB Type-C |
Battery | 1 x Rechargeable Lithium-Ion |
Operating Temperature | -4 to 131F / -20 to 55C |
Water Resistance | Waterproof, IP67 |
Dimensions | 6.2 x 2.4 x 2.2" / 15.7 x 6.1 x 5.6 cm |
Weight | 8.8 oz / 249.0 g |
Free Shipping | No |
---|
