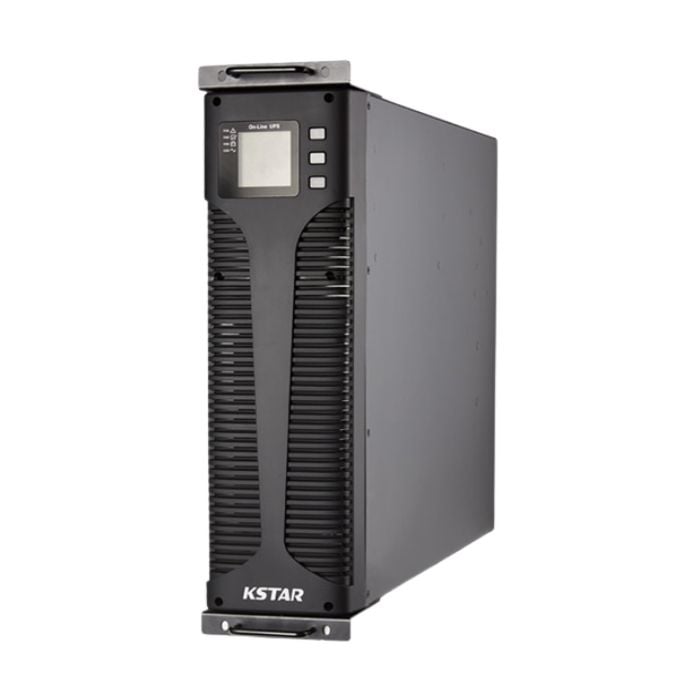

KSTAR UBR60L Memopower Plus RTII Online Series Rack Mount UPS - 6000VA
R14,189.00
SKU
KSUBR60L
DSP technology guarantees high reliability
True double-conversion
Rack-mounted and floor-standing tower can be convertible
Description
The KSTAR UBR60L Memopower Plus RTII Online Series Rack Mount UPS - 6000VA is a single-phase uninterruptible power supply with double-conversion technology and DSP control.
It delivers a rated power of 6-10kva and can be used in both tower and rack configurations. The patented mini LCD screen can be rotated according to a different type of deployment.
Features
- True double-conversion
- Rack-mounted and floor-standing tower can be convertible
- Patented Minic LCD of which content can be rotated according to the type of deployment
- DSP technology guarantees high reliability
- N+X parallel redundancy
- Selectable quantity of battery for each group:16/18/20 pieces
- Adjustable charging current via LCD
- 3-stage charging design optimizes battery performance
- ECO mode operation for energy saving
- Self-diagnosis at startup
- Emergency power off function(EPO)
- Maintenance bypass is convenient for maintenance
- Generator compatible
- PDU is convenient for connecting load
- Communications:RS-232,USB,SNMP card (Optional), Relay card (Optional)
- Cold start
Specifications
| Model | UBR60L |
| Capacity | 6000VA/5400Watts |
| Input | |
| Nominal Voltage | 220/230/240Vac (L+N+PE) |
| Operating Voltage Range | 120Vac-276Vac |
| Operating Frequency Range | 50Hz45 to 55Hz60Hz54 to 66Hz |
| Power Factor | 0.99 |
| Bypass Voltage Range | Max.voltage: 220V+25% (Optional +10%,+15%,+20% ), 230V+20%(Optional +10%,+15%), 240V+15% (Optional +10% ), Min. voltage: -45% (Optional -20%,-30%) |
| ECO Range | Same as Bypass |
| Harmonic Distortion (THDi) | 5%(100% non-linear load) |
| Output | |
| Output Voltage | 220/230/240Vac |
| Power Factor | 0.9 |
| Voltage Regulation | 1% |
| Frequency | |
| Line Mode | 1%/2%/4%/5%/10% of the rated frequency(Optional) |
| Battery Mode | (50/600.1)Hz |
| Crest Factor | 3:1 |
| Harmonic Distortion THDv | 2% with linear load, 5% with non-linear load |
| Waveform | Pure Sinewave |
| Transfer Time | Utility to Battery: 0ms Utility to Bypass: 0ms |
| Efficiency | |
| Efficiency | Up to 94% |
| Battery | |
| Battery Voltage | Optional Voltage: 96/108/120Vdc |
| Typical Recharge Time | 6-8 hours (To 90% capacity) |
| Charging Current | Maximum current 10A |
| Protection | |
| Overload Line Mode | Load125%: last 5min150%: last 1min150% 200ms turn to bypass mode |
| Overload Bypass Mode | 40A (Input breaker) |
| Short Circuit | Hold Whole System |
| Overheat | Line Mode: Switch to Bypass Backup Mode: Shut down UPS immediately |
| Battery Low | Alarm and Switch off |
| Indicators | |
| Audible and Visual Alarms | Line Failure, Battery Low, Overload, System Fault |
| Status LED and LCD Display | Line Mode, Backup Mode, Eco Mode, Bypass Mode, Battery Low, Battery Bad, Overload & UPS Fault |
| Reading On The LCD Display | Input/Output Voltage, Input/Output Frequency, Load Level, Battery Level, Inner Temperature & Remaining Battery Backup Time |
| Management | |
| Communication Interface | RS232,USB, Parallel Port, SNMP card (Optional), Relay card (Optional) |
| Environment | |
| Operating Temperature | 0 degree Celsius to 40 degree Celsius |
| Storage Temperature | -25 degree Celsius to 55 degree Celsius |
| Humidity Range | 0 to 95% (Non-condensing) |
| Altitude | < 1500m |
| Noise Level | <55dB |
| Physical | |
| Dimension | 443mm x 580mm x 131mm (W x D x H) |
| Net Weight | 19 |
| Standards | |
| Noise Suppression | Complies with EN62040-2 |
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Free Shipping | No |
|---|
