P40 Phase Correction Coating Close-Up Lens Included Roof Prism Waterproof Fogproof

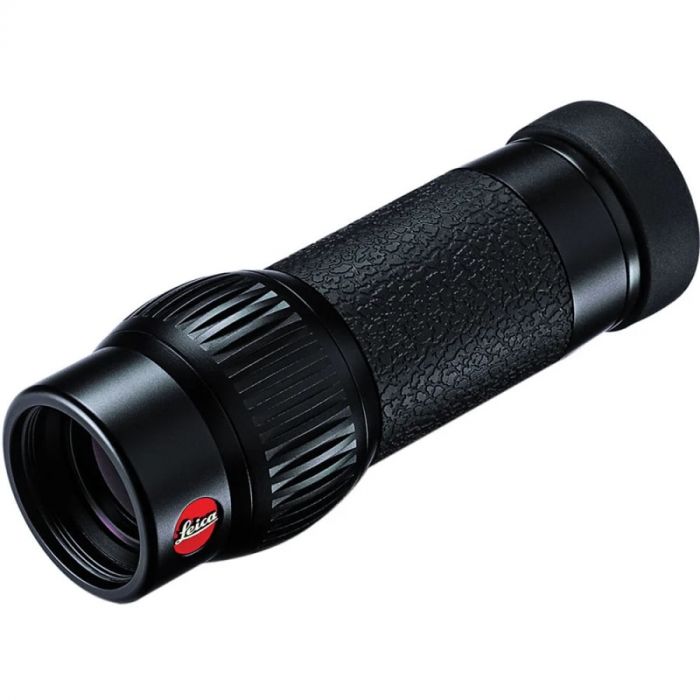

The Leica Monovid 8x20 Monocular fits in your jacket, shirt, or trouser pocket. It is light, robust, and brilliantly easy to use, making it the perfect take-anywhere companion. Naturally, it is also a choice among all who appreciate elegantly designed, high-quality optics. Thanks to its accessory close-up lens, you can view objects at distances as close as 10 –12 in. Simply screwing this accessory to the front lens produces a macro effect that lets you identify even the finest structures. When not in use, the lens can be safely stored in the leather case provided.
Destined to be chosen as an ideal take-along optic for anyone traveling light - the Monovid 8x20 Monocular from Leica will delight all-sorts of viewing enthusiasts with style, elegance, and a remarkable level of optical performance.
Sporting 8.0x magnification, the Monovid's optical system features a high-grade roof prism, AquaDura lens coatings, and nitrogen purging for clarity in any climate - it's fully fogproof and submersible to a depth of 5.0 m/16'. Inside the Monovid's elegant leather carry case, there's a special pocket for a very special attachment - the close-up lens. Installing this accessory onto the monocular allows viewers to achieve 8x magnification at distances as close as 9.8"/ 25 cm - this macro-effect viewing is excellent for observing the finest details that are often impossible to see through larger optics.
Delivery scope | Monovid 8 x 20, Close focus lens, eyepiece cover, carrybag with belt loop |
Magnification | 8 x |
Front lens diameter | 20 mm |
Exit pupil | 2.5 mm |
Twighlight Factor | 12.7 |
Field of View at 1,000 m | 110 m |
Eye-Relief | 15 mm |
Objective angle of view | 6.3° |
Close focusing distance | approx. 1.8 m |
Close focusing distance with close focus lens | 25–30 cm |
Eyepieces for eyeglass wearers | yes |
Sliding eyecups | yes |
Focusing | Internal focusing via central focusing knob |
Coatings on lenses (not on close focus lens) | High Durable Coating (HDC™) and AquaDura coating on outer lens |
Coatings on prisms | Roof prism with phase correction coating P40 |
Prism system | Roof prism |
Watertightness | watertight to a depth of 5 m/16.5 ft |
Housing | Aluminium, nitrogen filled |
Thread of close focus lens | M25 x 0.75 |
Dimensions Length | 97.9 mm |
Length with close focus lens | 105 mm |
Diameter | 35.5 mm |
Weight | approx. 112 g Monokular |
approx. 14 g Close focus lens | |
Warranty | 10 years |
