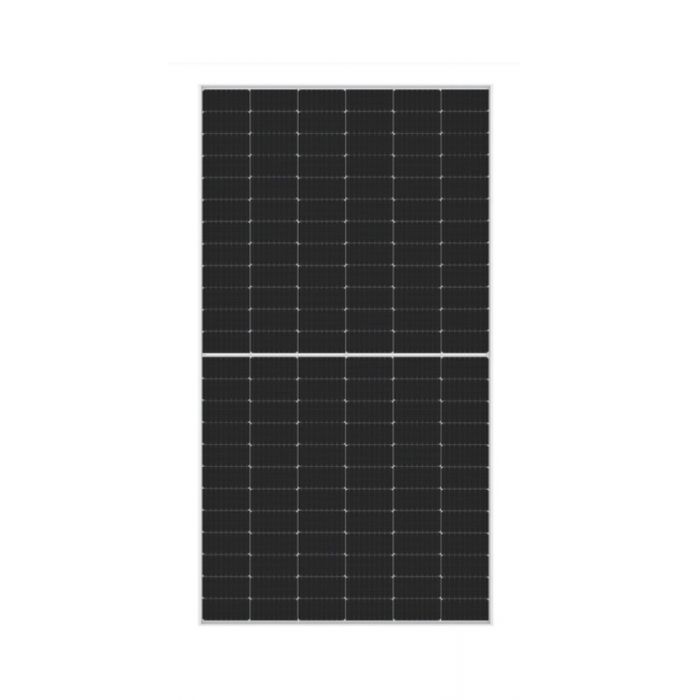

Longi LR5-72HPH-555M Solar Panel - 555W
R4,469.00
SKU
2005700132
Shipping restrictions apply.
Description
The Longi LR5-72HPH-555M Solar Panel is a high-performance panel that can generate a significant amount of electricity. It is equipped with Class II protection, which ensures that the panel is protected against electrical shock and is safe to use. The Longi LR5-72HPH-555M also features a 25A fuse series rating, which provides additional protection against overcurrent and overvoltage.
With a module efficiency of 20.9%, this solar panel can convert a large amount of sunlight into usable electricity, making it an excellent choice for those looking to generate clean energy. The Longi LR5-72HPH-555M has an open circuit voltage of 49.35V, which means that it can operate under various weather conditions and still provide a reliable power output. The Longi LR5-72HPH-555M is easy to set up and install, making it an ideal choice for residential and commercial solar systems. Its durable design ensures that it can withstand harsh weather conditions, making it a reliable source of clean energy for many years.
Features
- Max power of 555w (STC)
- Class II protection
- 25A fuse series rating
- Module efficiency of 21.5%
- 49.95v (STC) open circuit voltage
- Easy to set up
- Durable design
Specifications
| Max Power STC | 555 Pmax/W |
| Max Power NOCT | 414.8 Pmax/W |
| Open Circuit Voltage | 49.35v |
| Short Circuit Current | 13.78 Isc/A |
| Voltage at Maximum Power | STC 42.10 Vmp/V ; NOCT 39.11 Vmp/V |
| Current at Maximum Power | STC 13.19 Imp/A ; NOCT 10.61 Imp/A |
| Module Efficiency | 21.5% |
| Operating Temperature | -40 Degrees Celsius - +85 Degrees Celsius |
| Power Output Tolerance | 0 - 3% |
| Voc and Isc Tolerance | +/- 3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 25A |
| Protection Class | Class II |
| Free Shipping | No |
|---|
