Green illuminated MOA at 20 competition reticle
56mm objective lens
Saddle-mounted parallax adjustment from 50 metres to infinity
34mm main tube

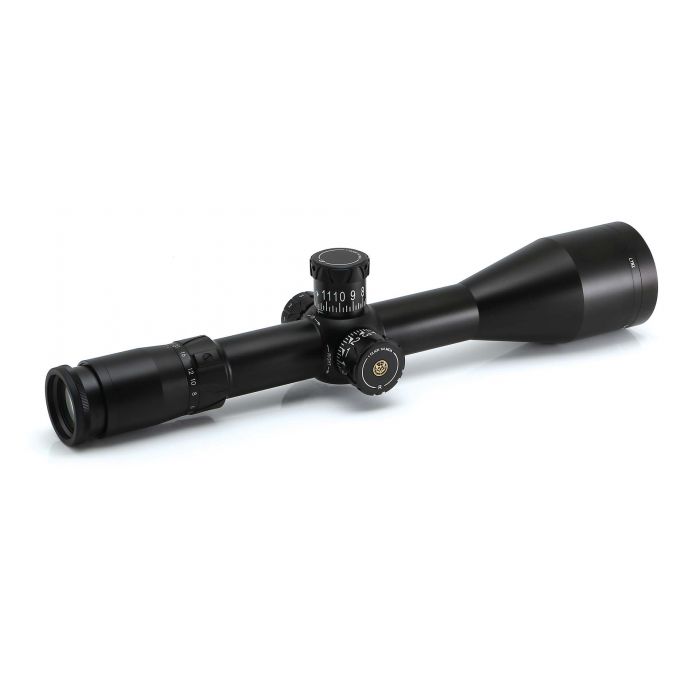

The pristine Lynx LX3 5-30x56 Competition Riflescope - MOA@20 Illuminated SFP Reticle represents a new era in weaponry optics for Lynx South Africa. With an impressive zoom range of 5x to 30x magnification this scope is great for the long distance shooter, Lynx has ensured that this scope will perform perfectly under all practical hunting conditions.
These units are argon purged & therefore able to safely stay under a metre of water for up to 60 minutes - so bushveld rain poses no problem for this scope which will also remain fog free. Capable of easily handling over 1000Gs and an eye relief of 92mm’s means you can put it on your biggest gun. The illuminated MOA@20 reticle has an easy to use range-determining scale built into the bottom of the lower vertical post for ranging 20cm high targets from 200 to 500 metres. With the LX3 5-30x56's extreme adaptability & precision - You will always be the ultimate predator during the hunt.
The adjustment controls are precise, each click is distinctly felt and moves the point of aim precisely 1/4MOA. The zero-stop mechanism is simple to engage and returns with absolute accuracy to your predetermined zero-elevation position. All markings on the adjustment controls are bold and highly-visible, making them easy to read even if your eyesight is less than perfect. The number and indicators on the controls are bold and highly visible and should be easy to see even if your eyesight is less than perfect. The side‐focus parallax focusses from 35 metres to beyond infinity and the illumination on the reticle is adjustable in eleven steps in intensity with off‐settings between each brightness level.
The MOA@20 Illuminated SFP Reticle is a reticle for competition shooters. Fifteen hash marks on each quadrant, 1 MOA apart with magnification set to 20x, facilitate versatile and simple aiming off points. The 2.5mm thick @ 20x reticle lines are fine enough to use for long range target shooting but are still visible with less than perfect eyesight. Depending on range conditions, distance to target and visibility the centre of the reticle can be used either in a conventional manner as a 1 MOA floating crosshair or to bracket an area of the target. An unobtrusive range scale inset into the bottom part of the 6 o'clock leg of the reticle ranges a 20cm high targets from 200 to 500 metres.
At 20x the reticle lines subtend 2.5mm at 100m, which is fine enough for accurate shot placement without being too difficult to see, and fifteen indicator markings, evenly spaced 1-MOA apart, run along the full length of each crosswire from centre. The ranging scale inset at the top of the reticle provides a quick and accurate means of ranging a 20cm high target from 200 to 500 metres. In poor light the reticle can be green-illuminated using the eleven-step brightness control which is mounted atop the parallax wheel on the saddle of the scope.
Magnification | |
Low Power | 5 |
High Power | 30 |
Exit Pupil Diameter | |
Low Power | 8.2mm |
High Power | 1.9mm |
Eye-Relief | |
Low Power | 91mm |
High Power | 92mm |
Actual FOV | |
Low Power | 3.12 degree |
High Power | 0.61 degree |
Objective Diameter | 56mm |
Total Windage Adjustment Range | 55 MOA |
Total Elevation Adjustment Range | 110 MOA |
Tube Diameter | One-piece 34mm |
Tube Material | Black hard anodized aluminium (HV300) |
Water Proof | Positive internal pressure 300kPa. Submersible 1m for 60 minutes. |
Recoil Proof | 1000G |
Fog Proof | Argon purged |
Temperature Operating Range | -20 to +71C |
Reticle | Lynx MOA@20x reticle. SFP |
Battery Type | CR2032 |
Switch Type | Mechanical. 11 brightness settings with "off" position between each setting |
Parallax | Side focus, 50m to infinity |
Eyepiece | European-style fast focus |
Antireflective Lens Coating | Fully multi coated (Light transmission 99.7% per lens surface) |
Windage / Elevation Control | Tactical / Target |
Windage Click Value | 0.25MOA |
Elevation Click Value | 0.25MOA |
Length | 367 |
Weight | 1 140g |
