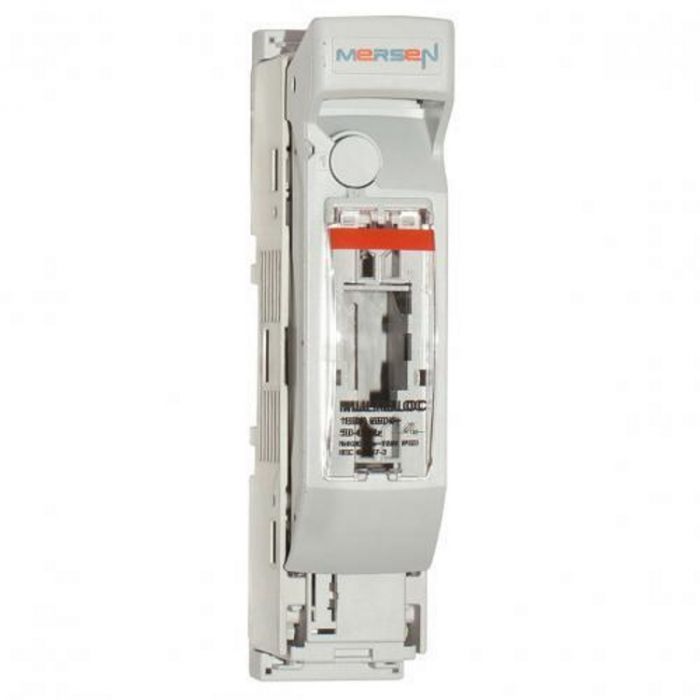

Mersen 1 Pole NH00 Fuse Holder - 160A

Description

The Mersen 1 Pole NH00 Fuse Holder - 160A is designed for bottom fitting/panel installation and panel installation up to 160A. Suitable for mounting on TS35/15 DIN Rail, EN60715. Multibloc size 00 are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00, 160A.

The 1 pole NH00 fuse holder offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance. The production programme of Multibloc series 00.ST8 comprises.

Standards

IEC/EN 60 947-3
For NH-fuse links, size 000/00 in
accordance with IEC/EN 60 269-2,
VDE 0636-2

Features

• Touch protection IP 20 - when fuse
• Link is in test mode IP rating is maintained
• Parking position of switch operating cover even with fuse-links inserted
• Modular system of cover - cover for cable termination area can be extended - optional
• Varieties of cable termination: screw, clamp strap, Al-Cu clamp, extendible for V-terminal - optional
• Padlocking and sealing of switch door cover - optional
• Indicating switch for switch door position - optional
• Safe on load connection/disconnection in accordance with IEC60947-3

Specifications

Applications

• House incoming units
• Meter distribution units
• Measuring transformer cabinets
• Transmitting stations for telecommunications
