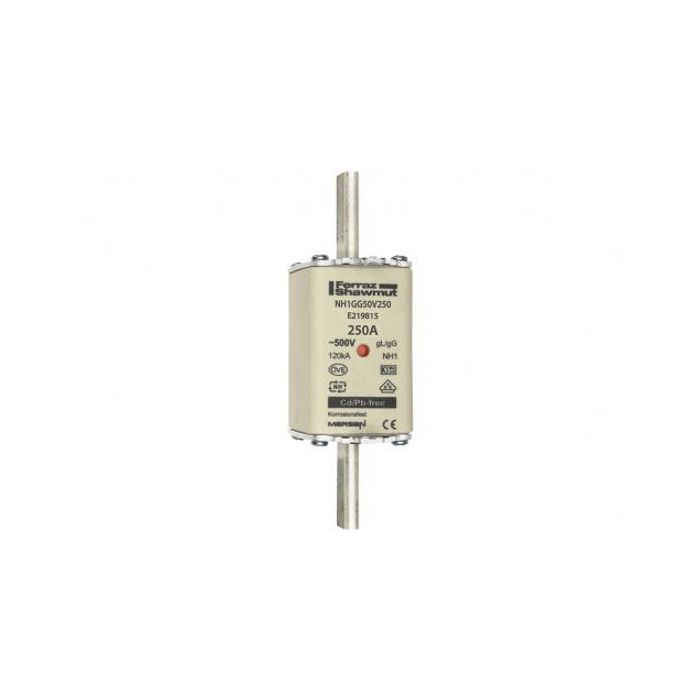

Mersen NH1GG50V250 Fuse link - 250A, 500V
R229.00
SKU
009055
Manufacturer's Website
Description
The Mersen NH1GG50V250 Fuse link - 250A, 500V is classified among plug-in fuse systems and is composed of fuse-base (possibly including terminal covers and phase barriers), fuse-link with blade contact and fuse-link replacement device (LV HRC fuse puller).
Type gG NH fuse-links are full range breaking capacity fuse-links and are used to protect cables and equipment. They can interrupt any current surge, from the lowest fusing current up to their breaking capacity, and so can be used alone as protection. They also protect electrical devices and industrial set-ups from the electrodynamic effects of very high short-circuit currents.
Features
- Dimensions according to DIN 43 620 parts 1 to 4
- Non-isolated gripping lugs
- Double indicator
- Lead free contact blades
- 0% cadmium
Specifications
| Rated voltage AC (IEC) | 500 V |
| Rated voltage DC (IEC) | 250 V |
| Rated current In | 250 A |
| Power dissipation at In | 20 W |
| Width | 39.5 mm |
| Body Material | ceramic |
| Contact Materials | copper, silver-plated |
