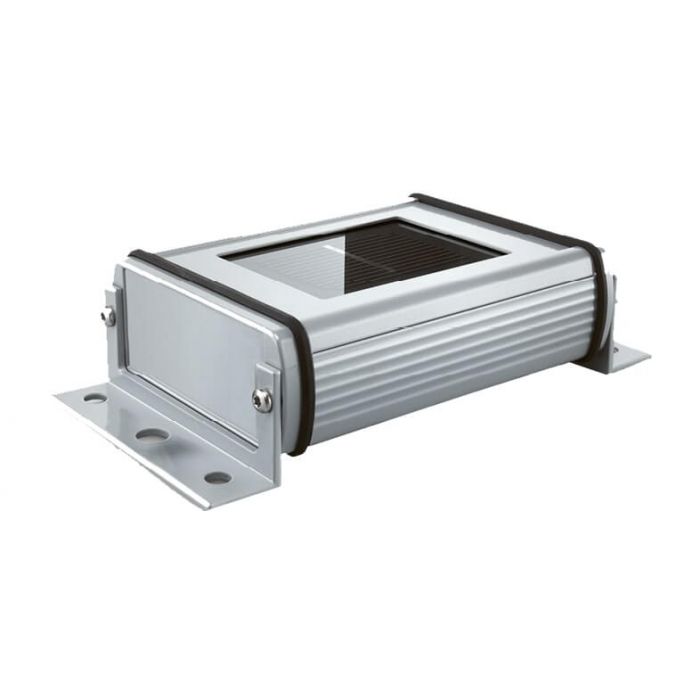

Meteo Control SI-RS0485-TC-T V2 Irradiance Sensor
R10,699.00
SKU
4400200172
Connection to meteocontrol system via various different interfaces
Recording of solar cell temperature
Active temperature compensation of all sensors by integrated temperature sensor
The particular sensors are available with a 3m connection cable
Description
The Meteo Control SI-RS0485-TC-T V2 Irradiance Sensor is used to record the solar radiance intensity. It can also record the module temperature of the measurement cell. With the RS485 interface, this sensor is particularly suitable in the industrial sector, enabling particularly high line routes.
Features
- Connection to meteocontrol system via various different interfaces
- Recording of solar cell temperature
- Active temperature compensation of all sensors by integrated temperature sensor
- The particular sensors are available with a 3m connection cable
Specifications
| Solar cell | Monocrystalline silicium (50x33mm) |
| Operating temp. | -35 - 80 C |
| Supply voltage | 12 VDC - 28 VDC |
| Galvanic isolation | 1000 V between supply an RS485 bus |
| Casing IP rating | IP65 |
| Dimensions | 155 x 85 x 40 mm |
| Weight | 340 g |
| Interface | RS485 |
| Protocol | Modbus RTU |
| Default baud rate | 19200 |
| Selectable baud rates | 9600, 19200, 38400 |
| Default data format | 8N1 |
| Selectable data formats | 8N1, 8E1 |
| Free Shipping | No |
|---|
