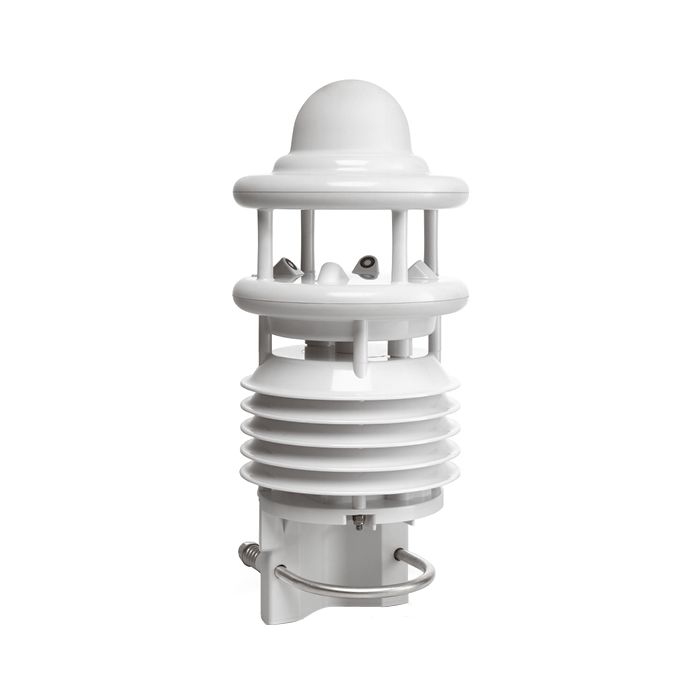

The Meteo Control WS501 Compact Weather Station is used to measure air temperature, relative humidity, solar irradiance, air pressure, wind direction and wind speed. Furthermore, it has an RS485 Modbus interface, which guarantees an easy connection to every Meteo Control data logger.
Supply voltage for the sensors | 4 - 32 VDC |
24 VDC | |
Power consumption sensors | 3,48 W |
Supply voltage heating | 12 - 24 VDC |
Power consumption heating | 20 W |
Interface | RS485, 2 wire, half-duplex |
Operating temperature | -50 - 60 C |
Rel. humidity | 0 - 100 % r.h. |
Protection class | IP 66 |
Cable length | 10 m |
Weight | 1,5 kg |
Dimensions | Ø approx. 150 mm, height approx. 332 mm |
ISO 9060 classification | Second class pyranometer (CMP3) |
Principle | Thermal detector |
Spectral range (50% points) | 300 - 2800 nm |
Measuring range | 0 - 1400 W/m^2 |
Inclination error (at 1000 W/m²) | <1 % |
Directional error (at 80° and 1000 W/m²) | <20 W/m^2 |
Non-linearity (0 … 1000 W/m²) | <1 % |
Stability deviation (per annum) | <1 % |
Response time (95%) | <18 s |
Temperature dependence of the sensitivity | <5 % (-10 - 40 C) |
Free Shipping | No |
---|
