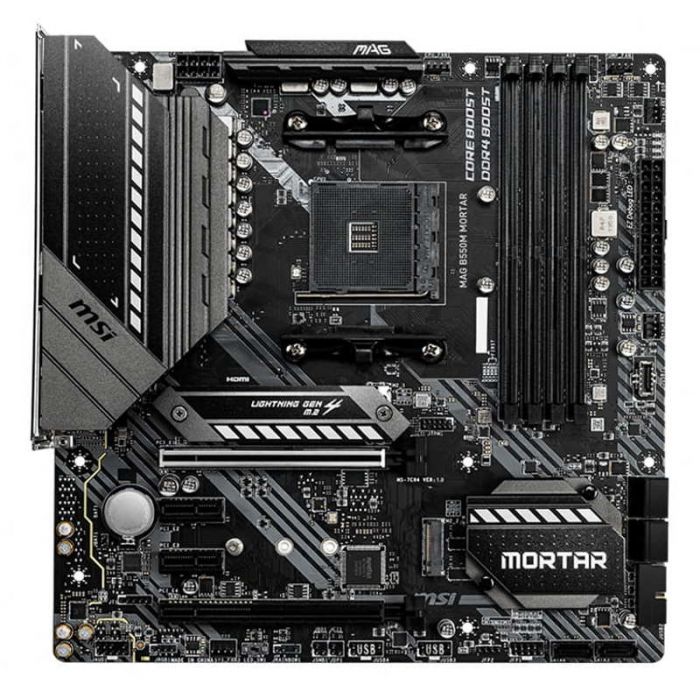

The MSI B550M MORTAR AMD AM4 M-ATX Gaming Motherboard - Black was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface, making it the best choice for entry level gamers. With more cores processors, thermal and power design is more important to make sure the temperature keeps lower.
MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
Socket | AM4 |
CPU (Max Support) | RYZEN 9 |
Chipset | AMD B550 Chipset |
DDR4 Memory | 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
Memory Channel | Dual |
DIMM Slots | 4 |
Max Memory (GB) | 128 |
PCI-E x16 | 2 |
PCI-E x1 | 2 |
SATAIII | 6 |
M.2 Slot | 2 |
RAID | 0/1/10 |
LAN | 1x Realtek RTL8125B 2.5G LAN |
USB 3.2 Ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
USB 3.2 Ports (Rear) | 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
USB 2.0 Ports (Front) | 4 |
USB 2.0 Ports (Rear) | 2 |
Audio Ports (Rear) | 5+ Optical S/PDIF (Realtek ALC1200 Codec) |
DisplayPort | 1 |
HDMI | 1 |
DirectX | 12 |
Form Factor | Micro-ATX |
CrossFire | Yes |
Operating System | Support for Windows 10 64-bit |
Free Shipping | No |
---|
