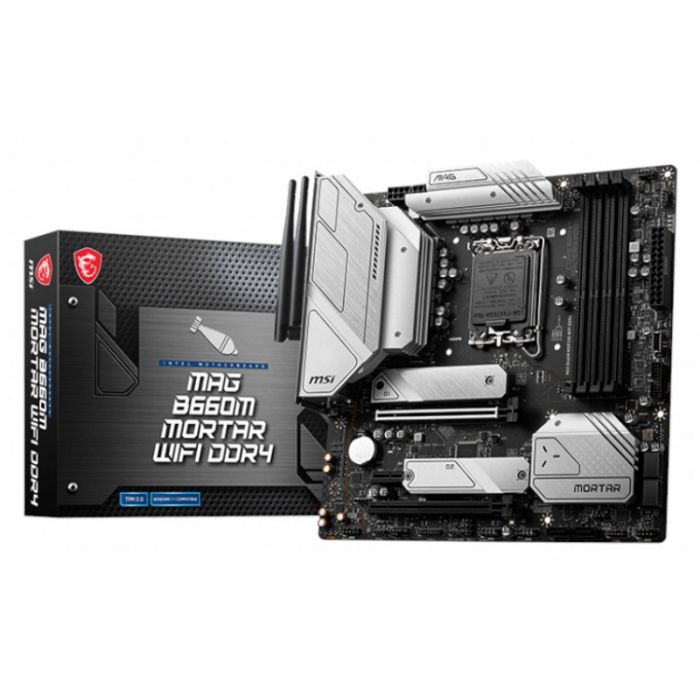

MSI MAG B660M Mortar WiFi DDR4 Intel LGA1700 ATX Gaming Motherboard - Silver
R4,699.00
SKU
MAGB660MMORTARWIFIDDR4
Manufacturer's Website
Description
Utilizing 12th Gen Intel processors, the MSI MAG B660M Mortar WiFi DDR4 Intel LGA1700 ATX Gaming Motherboard - Silver feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions.
With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast.
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one. 2.5Gbps LAN provides incredible data transfer speed, faster than general Gigabit LAN. This is a premium solution for demanding users.
Features
- Supports 12th Gen Intel processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Premium Thermal Solution
- Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi Solution
- Lightning M.2 running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost
- Multi-GPU With Steel Armour PCIe slots. Supports AMD Crossfire
Specifications
| Socket | 1700 |
| CPU (Max Support) | i9 |
| Chipset | Intel B660 Chipset |
| DDR4 Memory | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 2 |
| PCI-E x1 | 1 |
| SATAIII | 6 |
| M.2 Slot | 2 |
| RAID | 0/1/5/10 |
| LAN | 1x Realtek 8125BG 2.5G LAN |
| Wireless and Bluetooth | Intel Wi-Fi 6 module |
| USB 3.2 Ports (Front) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 Ports (Rear) | 1(Gen 2x2, Type C), 3(Gen 2, Type A) |
| USB 2.0 Ports (Front) | 4 |
| USB 2.0 Ports (Rear) | 4 |
| Audio Ports (Rear) | Realtek ALC1200 Codec |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | mATX |
| CrossFire | Yes |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
Package Content
- MSI MAG B660M Mortar WiFi DDR4 Intel LGA1700 ATX Gaming Motherboard - Silver x1
- SATA cables x2
- WiFi Antenna x2
- Driver DVD x1
- EZ M.2 Clips x2
- Screwdrivers x2
- Quick Install Guide x1
| Free Shipping | No |
|---|
