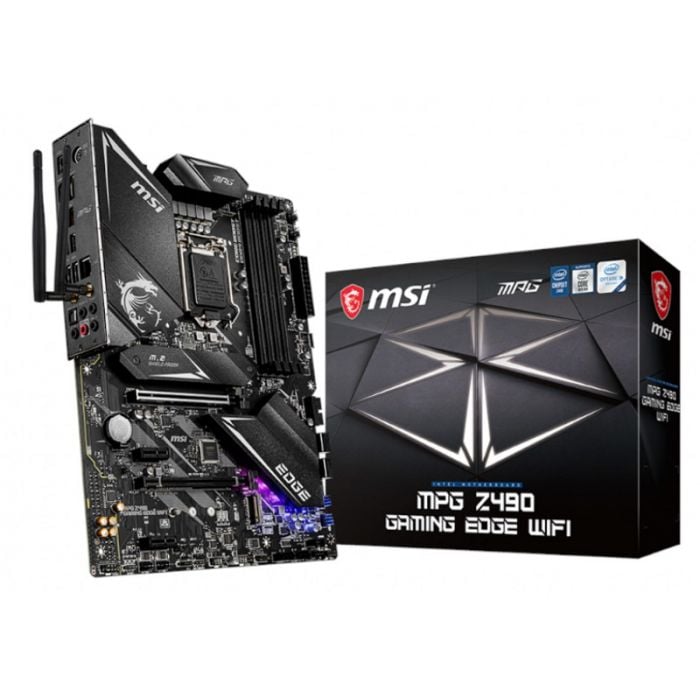

MSI Z490 Gaming Edge WiFi LGA1200 ATX Gaming Motherboard - Black
R6,039.00
SKU
MPGZ490GAMINGEDGEWIFI
Manufacturer's Website
Description
The MSI Z490 Gaming Edge WiFi LGA1200 ATX Gaming Motherboard - Black brings out the best in gamers by allowing full expression in colour with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the centre of attention and top leaderboards in style.
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast.
Features
- Supports 10th Gen Intel processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5000(OC) MHz
- Support Lightning Gen 4 Solution for the future
- 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors
- Core Boost
- DDR4 Boost
- Premium Thermal Solution
- Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr
- Lightning USB 20G
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution
- 16.8 million colours / 29 effects controlled in one click
- MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
- Pre-installed I/O Shielding
- Audio Boost
Specifications
| Socket | 1200 |
| CPU (Max Support) | i9 |
| Chipset | Intel Z490 Chipset |
| DDR4 Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 2 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 2 |
| TPM (Header) | 1 |
| RAID | 0/1/5/10 |
| WiFi & Bluetooth | Intel AX201 |
| LAN | 1x Realtek RTL8125B 2.5G LAN |
| USB 3.2 Ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 Ports (Rear) | 1(Gen 2x2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A) |
| USB 2.0 Ports (Front) | 4 |
| USB 2.0 Ports (Rear) | 2 |
| Audio Ports (Rear) | 5+ Optical S/PDIF (Realtek ALC1200 Codec) |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| Crossfire | Yes |
| Operating System | Support for Windows 10 64-bit |
Package Content
- MSI Z490 Gaming Edge WiFi LGA1200 ATX Gaming Motherboard - Black x1
- SATA cables x2
- Driver DVD x1
- Quick Install Guide x1
- User Manual x1
| Free Shipping | No |
|---|
