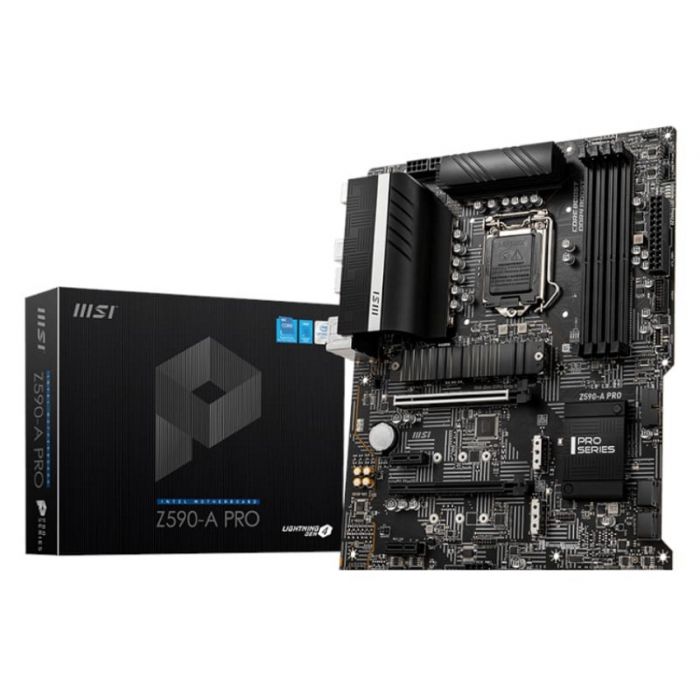

MSI Z590-A PRO Intel LGA1200 ATX Gaming Motherboard - Black
R3,849.00
SKU
Z590APRO
Manufacturer's Website
Description
The MSI Z590-A PRO Intel LGA1200 ATX Gaming Motherboard - Black help users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. This makes it so easier to install your own motherboard without any issues.
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards. The most important thing about DIY is versatility and expandability.
The MSI PRO Series of motherboards feature plenty of possibility for prosumers need. Stable LAN, faster storage and USB transfer speeds and other expandable connectors are ready to enlarge your flexibility. 2.5Gbps LAN provides incredible data transfer speed, faster than general Gigabit LAN. This is a premium solution for demanding users.
MSI PRO Series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy the extreme sound quality with Audio Boost. Moreover, with years of experience in creating enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
Features
- Supports 10th Gen Intel Core, 11th Gen Intel processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
- Premium Thermal Solution
- Extended Heatsink Design
- M.2 Shield Frozr is built for high-performance system and non-stop works
- 2.5G LAN
- Intel Turbo USB 3.2 Gen 2
- Audio Boost
- Multi-GPU
Specifications
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel Z590 Chipset |
| DDR4 Memory | 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E Gen | Gen4 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 3 |
| RAID | 0/1/5/10 |
| TPM (Header) | 1 |
| LAN | 1x Intel I225-V 2.5Gbps LAN |
| USB 3.2 Ports (Front) | 1(Gen 2, Type C), 4(Gen 1, Type A) |
| USB 3.2 Ports (Rear) | 1(Gen 2x2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 Ports (Front) | 4 |
| USB 2.0 Ports (Rear) | 4 |
| Serial Ports (Front) | 1 |
| Audio Ports (Rear) | Realtek ALC897 Codec |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| Crossfire | Yes |
| Operating System | Support for Windows 10 64-bit |
Package Content
- MSI Z590-A PRO Intel ATX Motherboard x1
- I/O Shield x1
- Driver DVD x1
- SATA Cables x2
- M.2 Standoff Sets/screws x3
- Quick Installation Guide x1
