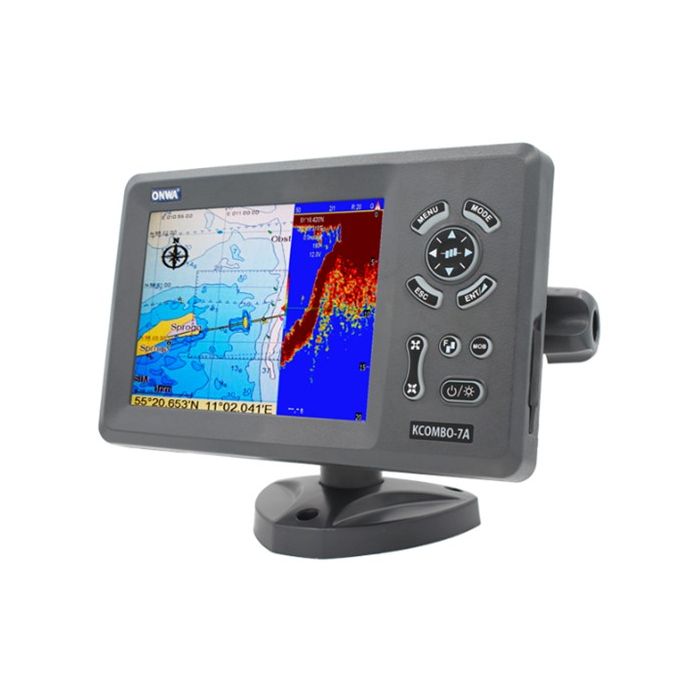

Onwa Kcombo-7A GPS Chartplotter With Thru-Hull TDX Mount And Class B Ais Transponder Fishfinder - 7", Grey
R15,699.00
SKU
KCOMBO7AThruHullTDX
Description
Go fishing the proper way with the Onwa Kcombo-7A Gps Chartplotter With Thru-Hull TDX Mount And Class B Ais Transponder Fishfinder - 7", Grey. This fish finder features a full 7 display with a resolution of 800 x 600 pixels.
Nobody knows the waters you fish better than you and your fellow fishermen. While you are trolling the shorelines and the depths, Quick draw contours mapping software creates HD fishing maps of the places you've been. No special knowledge is required.
When fishing you are bound to get wet or at least the water get everywhere, thats why the Onwa Kcombo-7A Gps Chartplotter With Fishfinder Thru-Hull TDX Mount And Class B Ais Transponder has been design with a IPX6 waterproof display and a IPX7 water proof antenna, helping you get the most accurate readings possible in any conditions.
The echo sounder built into the Onwa Kcombo-7A Gps Chartplotter With Fishfinder Thru-Hull TDX Mount And Class B Ais Transponder features up to 8 colours including background colour, and features 4 different types of ranges.
Features
- 7-inch high resolution LCD (800x600 pixels)
- External GPS antenna included
- Built-in Class B AIS transponder
- Easy to use menu operation
- Sunlight viewable
- K-Chart mapping included
- C-Map NT Max compatible
- Digital fishfinder technology
- 50/200 KHz transom mount transducer included
- Speed, depth, water temperature and position
- Ingress protected to IP67
Specifications
| Mount | Thru-Hull TDX Mount |
| Size | 243mm x 155mm x 82mm (H x W x D) |
| Weight | 0.6kg |
| Display | 7" Colour TFT dayview LCD, 800x600 pixels |
| Waterproofing | |
| Display | IPX6 |
| Antenna | IPX7 |
| Dynamics | |
| Altitude | 50000m Max |
| Velocity | 500m/s |
| Acceleration | 4g max |
| Datum Wgs | 84 and others |
| Interfaces Nma | 0183 input and output, RS232 output |
| Ais Characteristics | |
| Transmitter | 1x (For Kcombo-7A Only) |
| Receiver | 2x One Time Shared Between Ais/Dsc |
| Frequency | 156.025 To 162.025 Mhz In 25Khz |
| Output Power | 2 Watts Typical |
| Channel Bandwidth | 25 Khz |
| Channel Step | 25 Khz |
| Modulation Modes | 5Khz Gmsk (Ais, Tx And Rx) |
| Bit Rate | 9600 B/S +- 50 Ppm (Gmsk), 1200 B/S +- 30 Ppm (Fsk) |
| Rx Sensitivity | 107Dbm 25Khz |
| Message Error Rate | Less Than 2% |
| Co-Channel | 10Db |
| Imd | 62Db |
| Blocking | 84Db |
| Echo Sounder Characteristics | |
| Echo Colour | 8 colours |
| Basic Range | |
| Meters | 5/10/20/40/80/150/200/300/500/1000 |
| Feet | 30/60/120/250/500/1000/1600/3000 |
| Fathoms | 5/10/20/40/80/160/250/500 |
| Passi/Braza | 6/12/20/50/100/200/300/600 |
| Range Shift Up To | 1000 Meters (3000 Feet, 500 Fathoms, 600 Passi/Braza) |
| Zoom Range | Times 2,3,4 and 5 ranges |
| Bottom Lock Expansion Range | 5/10 meters, 10/20 feet, 2/5 fathoms, 2/5 passi/braza |
| Display Mode | High Frequency(200K), Low Frequency (50K), Dual (200K and 50K 1/2 display on each), Zoom (200K and 50K zoom) and A-scope Display |
| Zoom Display | Marker Zoom, Bottom Zoom and Bottom-lock Expansion |
| Display Advance Speed | Lines/TX Freeze, 1/8,1/4,1/2,1/1,2/1 |
| Tx Frequency | 50 and 200kHz (alternately transmitted) |
| Power Output | 600W |
| Interference Rejecter | Rejects unwanted signals by comparing last and present echoes in strength. |
| Alarm | Fish and Bottom alarms, Temperature alarm (sensor required) |
| Free Shipping | No |
|---|
