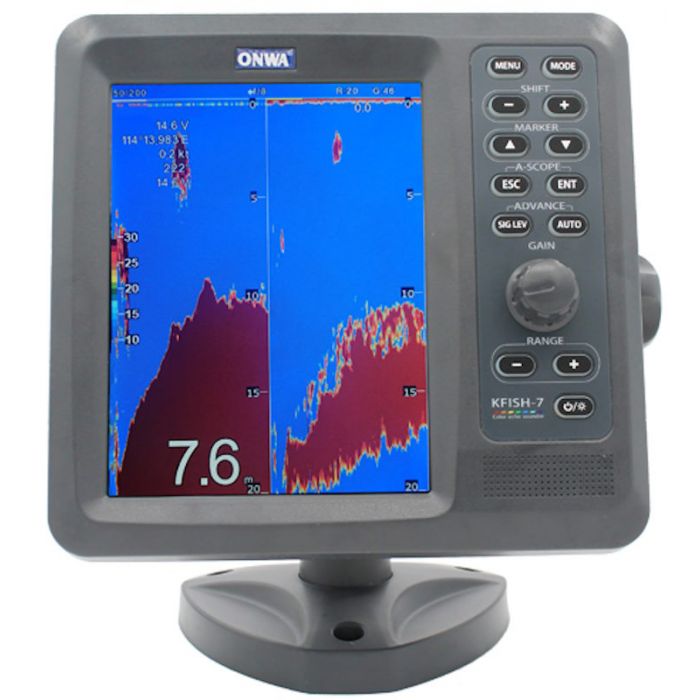

Onwa KFish-7 Colour Digital Fish Finder - 7-Inch, 600W, Plastic
R12,759.00
SKU
KFish7PlasticTdxr
Fish marks
Seabed hardness
Sonar sound
Description
Introducing the Onwa KFish-7 Colour Digital Fish Finder - 7-Inch, 600W, Plastic. The Onwa KFish-7 Colour Digital Fish Finder is a high-quality sonar system designed for marine applications, especially for fishing. Equipped with a 7-inch colour TFT LCD display, it offers a clear and vivid visual representation of underwater conditions. The display showcases echo intensity through 16 selectable colours, providing detailed information about fish and seabed structures.
This fish finder offers various basic range options in meters, feet, fathoms, and passi/braza, allowing users to select the appropriate range depending on their depth requirements. With a range shift capability of up to 1000 meters, the device ensures comprehensive coverage of underwater environments. It supports multiple display modes including High Frequency (200KHz), Low Frequency (50KHz), Dual (displaying both frequencies simultaneously), Zoom, and A-scope Display.
The system provides advanced features like bottom lock expansion, auto mode for automatic range and gain adjustments, and various zoom display options including marker zoom and bottom zoom. It offers fish and bottom alarms, enhancing the ability to identify fish targets and underwater structures. Additionally, it supports temperature alarms when paired with a compatible sensor.
Featuring a dual-frequency sonar transducer (50 and 200 kHz), this fish finder delivers optimal performance for different types of fishing. The transducer is designed for thru-hull installation, boasting a beam angle of 12 degrees for 200kHz and 60 degrees for 50kHz. The system has a nominal power output of 300W and can reach a maximum power output of 600W, providing reliable and efficient sonar performance.
Waterproofing rated at IPX7 for the display unit (Front Panel) ensures its durability against water exposure, while the overall environmental conditions allow the device to operate within a temperature range of 0C to +50C, making it suitable for marine environments.
With support for various NMEA0183 sentences for input and output and options like HDMI and Ethernet port (specifically specified at the time of ordering), this fish finder offers versatility in connectivity options, catering to diverse user requirements for fishing and marine navigation.
Features
- Fish marks
- Seabed hardness
- Sonar sound
- 16 intensity colours
- Dual frequencies
Specifications
| General | ||||||||||
| Display | 7-inch Colour TFT LCD | |||||||||
| Echo Colour | 16 colours (including background colour) according to echo intensity | |||||||||
| The background colour is selectable from blue, light blue, white and black | ||||||||||
| Basic Range | Meters 5/10/20/40/80/150/300/600/1000 | |||||||||
| Feet 15/30/60/120/200/400/1000/2000/3000 | ||||||||||
| Fathoms 3/5/10/20/40/80/150/300/600 | ||||||||||
| Passi/Braza 3/5/10/30/50/100/200/350/600 | ||||||||||
| The basic ranges can be changed on the system menu. | ||||||||||
| Range Shift | Up to 1000 meters (3000 feet, 600 fathoms, 600 passi/braza) | |||||||||
| Zoom Range | Times 2,3,4 and 6 ranges | |||||||||
| Bottom Lock Expansion Range | 5/10 /20 meters, 10/20/40 feet, 2/5/10 fathoms, 2/5/10 passi/braza | |||||||||
| Auto Mode | Automatic adjustment of range and gain | |||||||||
| Display Mode | High Frequency (200K) | |||||||||
| Low Frequency (50K) | ||||||||||
| Dual (200K and 50K 1/2 display on each) | ||||||||||
| Zoom (200K and 50K zoom) and A-scope Display | ||||||||||
| Zoom Display | Marker Zoom | |||||||||
| Bottom Zoom | ||||||||||
| Bottom-lock Expansion | ||||||||||
| Display Advance Speed | Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1 | |||||||||
| Tx Frequency | 50 and 200 kHz (alternately transmitted) | |||||||||
| Power Output | 600W RMS | |||||||||
| Pulse-Length/Tx Rate | ||||||||||
| Display End Depth (M) | 5 | 10 | 20 | 40 | 80 | 150 | 200 | 300 | 600 | 1000 |
| Pulse-Length 200K(S) | 120 | 220 | 320 | 520 | 920 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Pulse-Length 50K(S) | 170 | 270 | 370 | 570 | 970 | 1070 | 1070 | 1070 | 1070 | 1070 |
| Tx Rate(Pulse/Min) | 2000 | 1333 | 706 | 353 | 171 | 98 | 75 | 52 | 29 | 17 |
| Tx Period(Millisecond) | 30 | 45 | 85 | 170 | 350 | 610 | 800 | 1150 | 2070 | 3550 |
| Interference Rejecter | Rejects unwanted signals by comparing last and present echoes for strength. | |||||||||
| Alarm | Fish and Bottom alarms | |||||||||
| Temperature alarm (sensor required) | ||||||||||
| Nmea0183 Sentence Supported | Input: RMC, VTG,HEV | |||||||||
| Output: SDDBS, SDDBT, SDDPT | ||||||||||
| POWAB/only hardness output ONWA format/ | ||||||||||
| SDSBH/only hardness output ONWA format/ | ||||||||||
| PHDX/only hardness output HONDEX format/ | ||||||||||
| PKODS/only hardness output KODEN format/ | ||||||||||
| Other Options | HDMI, Ethernet Port (Specify when ordering) | |||||||||
| Power Supply | 12 24 VDC (-10%, +30%) : 1.0 0.6 A | |||||||||
| Environmental Conditions | ||||||||||
| Ambient Temperature | 0C to +50C | |||||||||
| Relative Humidity | 85% at 40C | |||||||||
| Vibration | 1mm 10%, 2(5) to 13.2 Hz, | |||||||||
| Maximum Acceleration 7m/s2, 13.2 to 100 Hz | ||||||||||
| Water Proofing | Display unit (Front Panel): IPX7 | |||||||||
| Nbm40-50/200 | ||||||||||
| Frequency | Dual Frequency: 50 & 200 kHz | |||||||||
| Power | 300W nominal | |||||||||
| 600W maximum | ||||||||||
| Beam Angle | 200KHz : 12 | |||||||||
| 50KHz : 60 | ||||||||||
| Cable | 8 meters | |||||||||
| Installation | Thru-Hull | |||||||||
| Material | Plastic |
| Free Shipping | No |
|---|
