35mm lens
Ip67 weather resistance
1000m laser range finder
NETD -/< 20mk

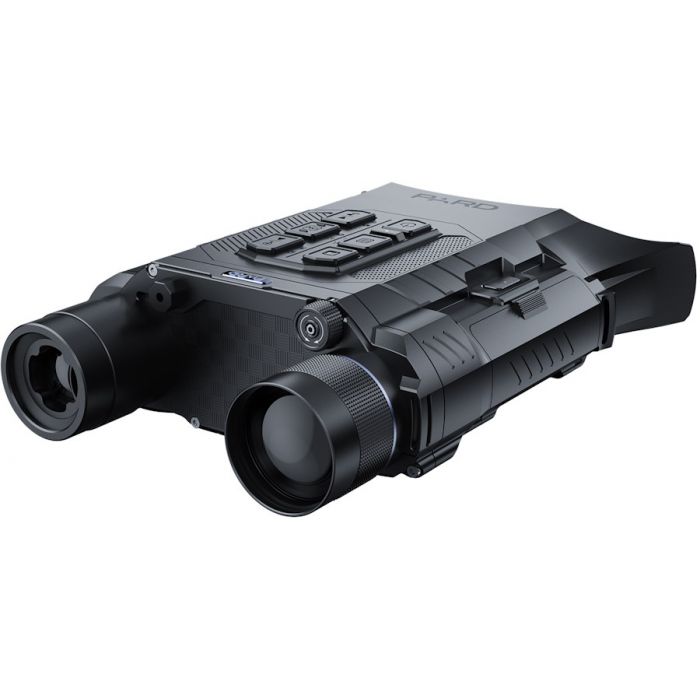

Introducing the Pard Harrier 640 1.8x Laser Rangefinder Thermal Imaging Binocular - 35mm, 1000m LRF. A sophisticated tool designed to elevate the standards of outdoor observation and tactical operations. Featuring a 35mm objective lens with a thermal resolution of 640 x 512 pixels, this binocular provides exceptional clarity and detail, making it ideal for wildlife observation, hunting, and surveillance. With a NETD of less than 20 mK (0.02C), the Harrier 640 effectively detects even the faintest thermal signatures in the environment. It offers a detection distance of up to 1800 meters, allowing users to monitor distant subjects with remarkable accuracy.
In terms of usability, the Harrier 640 is equipped with 1.8x optical magnification, complemented by flexible digital zoom options of 2x, 4x, 6x, and 8x. This design ensures a broad field of view, with 12.5 horizontally and 10 vertically, making it easier to track moving objects. The binocular also boasts six customizable image modes, including WT-HOT and BK-HOT, and three scene modes (City, Rain, and Forest), enabling users to adapt the imaging according to their specific needs and surroundings. With an IP67 weather resistance rating, it is capable of enduring harsh environmental conditions, ensuring reliable performance in various climates with operational temperatures ranging from -30C to +55C (-22F to +131F).
The Pard Harrier 640 excels in capturing high-quality imagery and video, offering photo resolutions of 2048 x 1536 pixels and video at 1024 x 768 pixels, both available for recording onto an external micro SD card (up to 128GB). Its integrated features-including a built-in laser range finder with a maximum detection range of 1000 meters, Picture-in-Picture (PIP) functionality, gyroscope stabilization, loop recording, and an E-compass-enhance its versatility. Powered by a 21700 lithium-ion battery, the device provides a maximum operating time of up to 8 hours and includes built-in Wi-Fi connectivity to facilitate integration with the PardVision2 app for enhanced functionality and data sharing. Whether for professional use or adventurous exploration, the Harrier 640 stands as a reliable companion in thermal imaging technology.
Sensor | |
Type | Uncooled VOx (vanadium oxide) |
Resolution (Pixel) | 640 x 512 |
Pixel Size (Um) | 12 x 12 |
NETD (Mk) | -/< 20 mK (0.02C) |
Frame Rate (Hz) | 50 |
Detection Distance (M) | 1800 |
Image Engine | Pard IREA |
Objective Lens (Mm) | 35 |
Optical Magnification (X) | 1.8 |
Digital Zoom (X) | 2/4/6/8 |
Field Of View (Horizontal) | 12.5 |
Field Of View (Vertical) | 10.0 |
Field Of View (Diagonal) | 16.0 |
Focus Range | 3m-Infinity |
Display | |
Type | LCD |
Resolution (Pixel) | 640 x 480 |
Scene Mode | City/Rain/Forest |
Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
Eye Relief (Mm) | 25 |
Diopter Adjustment (D) | -5-3 |
Photo / Video | |
Photo Resolution (Pixel) | 2048 x 1536 |
Photo Format | .JPG |
Video Resolution (Pixel) | 1024 x 768 |
Video Format | .mp4 |
Storage (Gb) | Micro SD card (Max. 128GB) |
Main Function | |
LRF Detection Range (M/Yd) | 1000/1200 |
Pip | Yes |
Gyroscope | Yes |
Loop Recording | Yes |
E-Compass | Yes |
Shutter | Mechanical Shutter |
Microphone | Yes |
Firmware Upgrade | Yes |
Interfaces | |
USB Type-C | Yes |
HDMI Output | Yes |
Wi-Fi | Yes |
Supported Apps | PardVision2 |
Power Supply | |
Battery Type | Lithium-ion 21700x1 |
Output Voltage (V) | 3.7 |
Operating Time (H, Max) | |
External Power Supply (V) | USB Type-C |
Environmental Characteristic | |
Degree Of Protection | IP67 |
Operating Temp (C/F) | -30 - +55 / -22 - +131 |
Material | |
Objective Lens | All-glass multi-coated lens |
Measurement | |
Product Dimension/With LRF (L X W X H, Mm) | 220 x 137 x 58 |
N.W/Pcs (With LRF & Battery, G) | 553.5 |
Free Shipping | No |
---|
