0.001 (lux) cmos sensitivity
1920 x 1080 (pixel) cmos sensor
940nm IR Wavelength
Ip67 waterproof

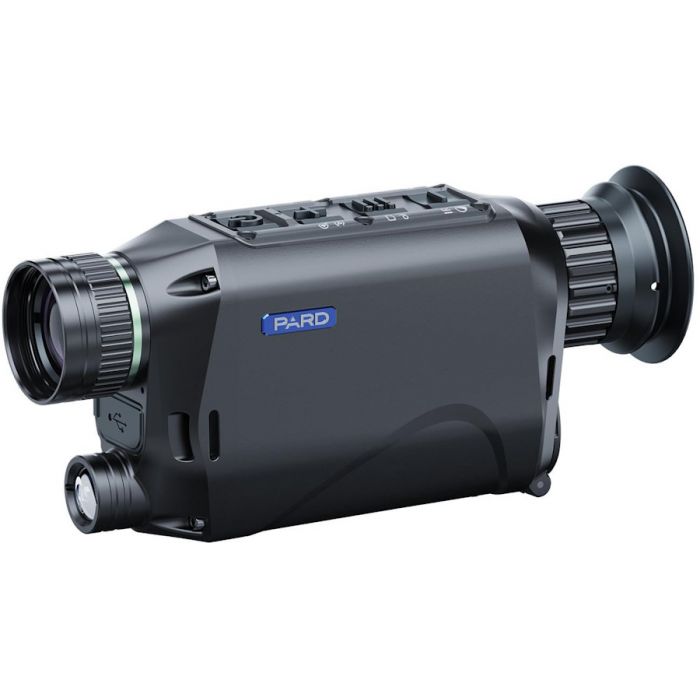

Introducing the Pard NV009 4.7x Digital Night Vision Monocular - 940nm, 1.5-3.0 Digital Zoom. A sophisticated device designed for both daytime and nighttime observations. Its compact and lightweight design makes it ideal for outdoor enthusiasts, whether you're climbing rugged terrains or watching wildlife after the sun sets. With a high-definition 1920 x 1080 resolution enabled by a state-of-the-art 0.001 lux CMOS sensor, the NV009 provides exceptional clarity and detail, even in low-light conditions. This versatility ensures that you can immerse yourself in the experience of hunting or exploring, without the burden of heavy equipment.
Equipped with a 35mm objective lens and a 4.7x optical magnification, the NV009 also features a digital zoom capability of 1.5-3.0x, allowing users to get a closer look at distant objects without losing sight of the broader environment thanks to its PIP (Picture-in-Picture) function. The monocular further enriches the viewing experience with the PARD Visual Light Enhancement Algorithm (VLEA). This technology, paired with a 1024 x 768 OLED display, enhances target recognition and overall image quality, ensuring a more informed perspective while observing or hunting.
As a reliable companion in various conditions, the NV009 is built to withstand tough environments with its IP67 waterproof rating, ensuring performance in wet or dusty conditions. It also features a robust IR illuminator with a distance of up to 200 meters, making it suitable for nighttime observation. Users can easily document their experiences with the ability to capture photos at 2592 x 1944 resolution and video at 1920 x 1080, stored conveniently on a micro SD card of up to 128GB. Coupled with Wi-Fi connectivity for remote operations and an ergonomic design, this monocular is a comprehensive and user-friendly tool for nighttime adventures.
Sensor | |
Type | CMOS |
Resolution (Pixel) | 1920 x 1080 |
Pixel Size (Um) | 2.9 |
Sensitivity (Lux) | 0.001 |
Frame Rate (Hz) | 60/30 |
Image Engine | PARD VLEA |
Optics | |
Objective Lens (Mm) | 35 |
Optical Magnification (X) | 4.7 |
Digital Zoom (X) | 1.5-3.0 |
Continuous Digital Zoom (X) | 7-14 |
Field Of View (Hxv) | |
Horizontal | 9.1 |
Vertical | 5.1 |
Diagonal | 10.4 |
Focus Range | 3m-Infinity |
Eye Relief (Mm) | 25 |
Exit Pupil (Mm) | 6 |
Diopter Adjustment (D) | +/- 5D |
Ir Illuminator | |
Ir Type | VCSEL |
Ir Power (W) | 5 |
Ir Illuminating Level | 3 Levels |
Ir Distance (M) | 200 |
Ir Wavelength (Nm) | 940 |
Display | |
Type | OLED |
Resolution (Pixel) | 1024 x 768 |
Colour Mode | Colour/Black and white |
Photo / Video | |
Photo Resolution (Pixel) | 2592 x 1944 |
Photo Format | .JPG |
Video Resolution (Pixel) | 1920 x 1080 |
Video Format | .mp4 |
Storage (Gb) | Micro SD card (Max. 128GB) |
Main Function | |
Pip | Yes |
E-Compass | Yes |
Auto Recording | Yes |
Loop Recording | Yes |
Time Stamp | Yes |
Record Audio | Yes |
Beep Sound | Yes |
Exposure Compensation | Yes |
Connections | |
USB Type-C | Yes |
HDMI Output | Yes |
Wi-Fi | Yes |
Supported Apps | PardVision |
Power Supply | |
Battery Type | 18650 Li-ion x 1 |
Output Voltage (V) | 3.7 |
Operating Time (H, Max) | 8 |
External Power Supply (V) | USB Type-C |
Environmental Characteristic | |
Degree Of Protection | IP67 |
Operating Temp (C/F) | -20 - +50 / -4 - +122 |
Material | |
Housing | AL6061 & Composite |
Objective Lens | Glass |
Measurement | |
Product Dimension (L X W X H, Mm) | 150 x 70 x 38 |
N.W/Pcs (With/Without Battery, G) | 260/306 |
