35mm Lens
50mm Visible Light Sensor lens
850nm IR Wavelength
1000m Laser Rangefinder

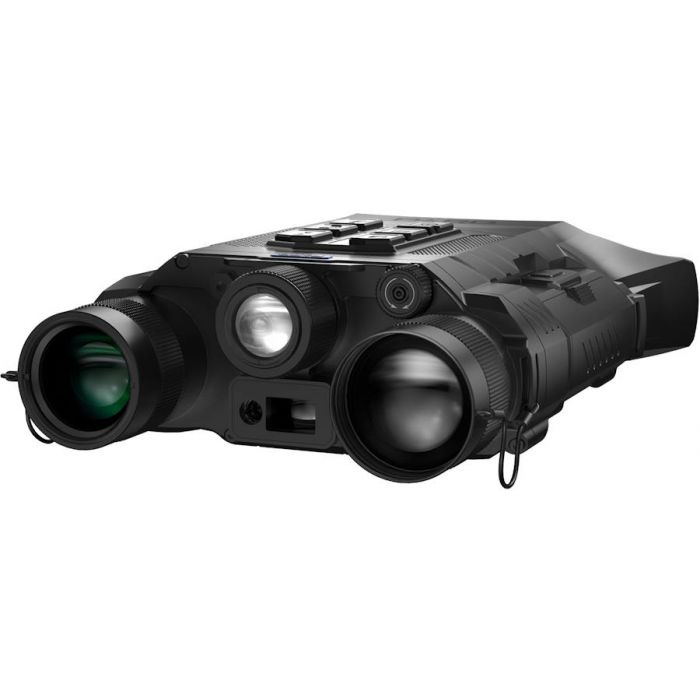

Introducing the Pard Osprey 480 2.4x Laser Rangefinder Multi-Spectral Binocular - 35mm Lens, 850nm, 1000m LRF. An innovative observational tool designed for a variety of environments and lighting conditions. With its four versatile channels-thermal imaging, daytime visibility, night vision, and picture-in-picture (PIP)-users can efficiently locate and identify targets. The thermal channel allows for the detection of heat signatures at distances up to 1800 meters, while the daytime and night vision channels offer clarity for precise identification, streamlining the observational workflow significantly.
Equipped with a 35mm objective lens for thermal imaging and a 50mm lens for visible light, the Pard Osprey 480 operates with a thermal sensor featuring a resolution of 480 x 360 pixels and a NETD of <20mK, enabling it to capture fine details in diverse conditions. Users benefit from optical magnification of 2.4x for thermal and 3.5x for visible light, complemented by digital zoom options of up to 8x. The binocular boasts a wide field of view-9.4 horizontally and 7.1 vertically-perfect for scanning large areas without losing sight of critical details.
The binocular is designed with user-friendly functionalities such as loop recording, an e-compass, and a mechanical shutter to enhance the observational experience. Users can capture high-resolution images (2048 x 1536 pixels) and videos (thermal: 1024 x 768 pixels night vision: 1920 x 1440 pixels) stored on a micro SD card of up to 128GB. Coupled with an IP67 rating for water and dust resistance, an operating temperature range from -30C to +55C, and a lightweight design, the Pard Osprey 480 stands out as a reliable companion for outdoor enthusiasts, wildlife observers, and tactical users alike. With advanced features and robust construction, this multi-spectral binocular ensures that users are always equipped to observe their target effectively, regardless of the conditions.
Thermal Sensor | |
Type | Uncooled VOx (vanadium oxide) |
Resolution (Pixel) | 480 x 360 |
Pixel Size (Um) | 12 x 12 |
Netd (Mk) | -/< 20 mK (0.02C) |
Frame Rate (Hz) | 50 |
Detection Distance (M) | 1800 |
Image Engine | Pard IREA |
Objective Lens (Mm) | 35 |
Optical Magnification (X) | 2.4 |
Digital Zoom (X) | 2/4/6/8 |
Field Of View (Horizontal) | 9.4 |
Field Of View (Vertical) | 7.1 |
Field Of View (Diagonal) | 11.8 |
Focus Range | 3m-Infinate |
Visible Light Sensor | |
Resolution (Pixel) | 2688 x 1520 |
Pixel Size (Um) | 2.9 |
Sensitivity (Lux) | 0.001 |
Frame Rate (Hz) | Colour:60/Mono:30 |
Objective Lens (Mm) | 50 |
Optical Magnification (X) | 3.5 |
Digital Zoom (X) | 2/3 |
Field Of View (Horizontal) | 6.4 |
Field Of View (Vertical) | 4.8 |
Field Of View (Diagonal) | 8 |
Focus Range | 3m-Infinate |
Display | |
Type | LCD |
Resolution (Pixel) | 640 x 480 |
Scene Mode | City/Rain/Forest |
Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
Eye Relief (Mm) | 25 |
Diopter Adjustment (D) | -5 - 3 |
Photo / Video | |
Photo Resolution (Pixel) | Thermal: 2048 x 1536/Night Vision: 2048 x 1536 |
Photo Format | .JPG |
Video Resolution (Pixel) | Thermal: 1024 x 768/Night Vision: 1920 x 1440 |
Video Format | .mp4 |
Storage (Gb) | Micro SD card (Max. 128GB) |
Main Function | |
LRF Detection Range (M/Yd) | 1000/1200 |
Pip | Yes |
Gyroscope | Yes |
Loop Recording | Yes |
E-Compass | Yes |
Shutter | Mechanical shutter |
Microphone | Yes |
Firmware Upgrade | Yes |
IR Illuminator | |
IR Power | 5W |
IR Illuminating Level | 3 Levels |
IR Distance (M) | 350 |
IR Wavelength (Nm) | 850 |
Interfaces | |
USB Type-C | Yes |
HDMI Output | Yes |
Wi-Fi | Yes |
Supported Apps | PardVision2 |
Power Supply | |
Battery Type | Lithium-ion 21700x1 |
Output Voltage (V) | 3.7 |
Operating Time (H, Max) | -/< 6 |
External Power Supply (V) | USB Type-C |
Environmental Characteristic | |
Degree Of Protection | IP67 |
Operating Temp (C/F) | -30 - +55 / -22 - +131 |
Material | |
Objective Lens | All-glass multi-coated lens |
Measurement | |
Product Dimension/With Lrf (L X W X H, Mm) | 220 x 137 x 58 |
N.W/Pcs (With Lrf And Battery, G) | 704.5 |
