35mm lens
50mm visible light sensor lens
940nm IR wavelength
1000m laser rangefinder

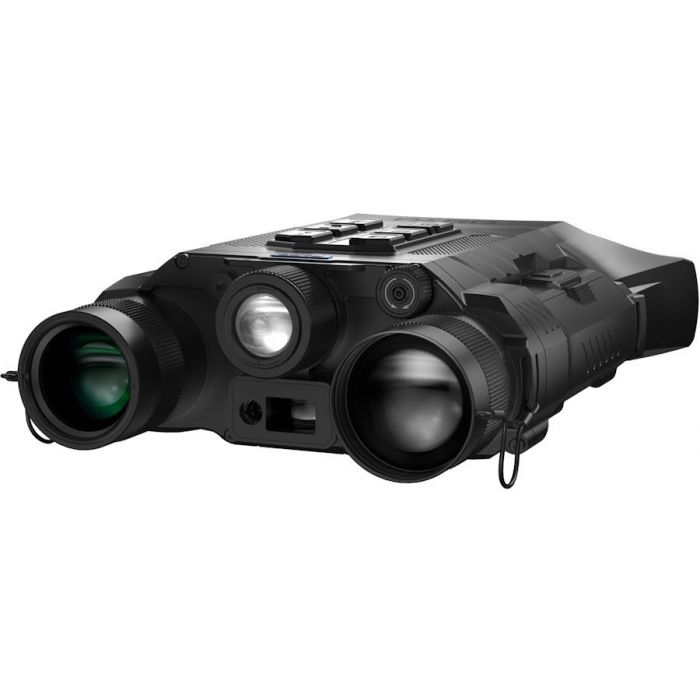

Introducing the Pard Osprey 480 2.4x Laser Rangefinder Multi-Spectral Binocular - 35mm Lens, 940nm, 1000m LRF. A highly advanced observational tool designed for versatility in various environments, combining four functional channels: thermal imaging, daytime, night vision, and picture-in-picture (PIP). This multifaceted approach allows users to efficiently locate and identify targets, dramatically enhancing the observational workflow. With a 35mm thermal lens and a 50mm lens for visible light, the binocular provides exceptional imaging capabilities, capable of detecting heat signatures up to 1800 meters away, thanks to its high-resolution thermal sensor with a NETD of <20mK.
Equipped with user-friendly features, the Pard Osprey 480 offers adjustable interpupillary distance, three scene modes, and six image modes, which ensure adaptability to various environmental conditions. The binocular records high-resolution photos (2048 x 1536 pixels) and videos (thermal: 1024 x 768 pixels night vision: 1920 x 1440 pixels) in commonly used formats, stored on micro SD cards of up to 128GB. Additional capabilities, such as loop recording, an e-compass, and a mechanical shutter, provide further functionality, making the device suitable for both recreational and professional applications.
Powering the binocular is a removable and rechargeable 21700 lithium-ion battery, delivering up to six hours of operational time, with the option for external power via USB Type-C. The integrated 5W infra-red illuminator enhances low-light performance with adjustable levels, extending visibility in darkness up to 350 meters. Constructed to withstand tough conditions, the Pard Osprey 480 features an IP67 rating for water and dust protection and can operate effectively across a wide temperature range, ensuring reliability in diverse situations. This combination of robust functionality and advanced technology makes the Pard Osprey 480 a reliable companion for outdoor enthusiasts, wildlife observers, and tactical users alike.
Thermal Sensor | |
Type | Uncooled VOx (vanadium oxide) |
Resolution (Pixel) | 480 x 360 |
Pixel Size (Um) | 12 x 12 |
Netd (Mk) | -/< 20 mK (0.02C) |
Frame Rate (Hz) | 50 |
Detection Distance (M) | 1800 |
Image Engine | Pard IREA |
Objective Lens (Mm) | 35 |
Optical Magnification (X) | 2.4 |
Digital Zoom (X) | 2/4/6/8 |
Field Of View (Horizontal) | 9.4 |
Field Of View (Vertical) | 7.1 |
Field Of View (Diagonal) | 11.8 |
Focus Range | 3m-Infinate |
Visible Light Sensor | |
Resolution (Pixel) | 2688 x 1520 |
Pixel Size (Um) | 2.9 |
Sensitivity (Lux) | 0.001 |
Frame Rate (Hz) | Colour:60/Mono:30 |
Objective Lens (Mm) | 50 |
Optical Magnification (X) | 3.5 |
Digital Zoom (X) | 2/3 |
Field Of View (Horizontal) | 6.4 |
Field Of View (Vertical) | 4.8 |
Field Of View (Diagonal) | 8 |
Focus Range | 3m-Infinate |
Display | |
Type | LCD |
Resolution (Pixel) | 640 x 480 |
Scene Mode | City/Rain/Forest |
Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
Eye Relief (Mm) | 25 |
Diopter Adjustment (D) | -5 - 3 |
Photo / Video | |
Photo Resolution (Pixel) | Thermal: 2048 x 1536/Night Vision: 2048 x 1536 |
Photo Format | .JPG |
Video Resolution (Pixel) | Thermal: 1024 x 768/Night Vision: 1920 x 1440 |
Video Format | .mp4 |
Storage (Gb) | Micro SD card (Max. 128GB) |
Main Function | |
LRF Detection Range (M/Yd) | 1000/1200 |
Pip | Yes |
Gyroscope | Yes |
Loop Recording | Yes |
E-Compass | Yes |
Shutter | Mechanical shutter |
Microphone | Yes |
Firmware Upgrade | Yes |
IR Illuminator | |
IR Power | 5W |
IR Illuminating Level | 3 Levels |
IR Distance (M) | 350 |
IR Wavelength (Nm) | 940 |
Interfaces | |
USB Type-C | Yes |
HDMI Output | Yes |
Wi-Fi | Yes |
Supported Apps | PardVision2 |
Power Supply | |
Battery Type | Lithium-ion 21700x1 |
Output Voltage (V) | 3.7 |
Operating Time (H, Max) | -/< 6 |
External Power Supply (V) | USB Type-C |
Environmental Characteristic | |
Degree Of Protection | IP67 |
Operating Temp (C/F) | -30 - +55 / -22 - +131 |
Material | |
Objective Lens | All-glass multi-coated lens |
Measurement | |
Product Dimension/With Lrf (L X W X H, Mm) | 220 x 137 x 58 |
N.W/Pcs (With Lrf And Battery, G) | 704.5 |
