35mm lens
50mm visible light sensor lens
940nm IR wavelength
1000m laser rangefinder

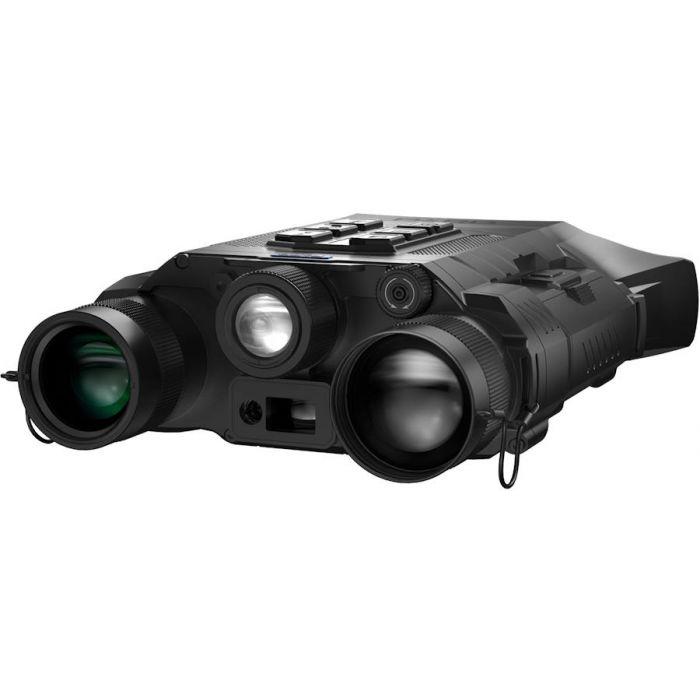

Introducing the Pard Osprey 640 1.8x Laser Rangefinder Multi-Spectral Binocular - 35mm Lens, 940nm, 1000m LRF. A state-of-the-art observational instrument designed to enhance the user's ability to effectively locate and identify targets across various scenarios. With the capability to function in four versatile channels-thermal imaging, daytime viewing, night vision, and picture-in-picture (PIP)-this device streamlines the process of observation. Users can effortlessly locate subjects using the thermal channel before swiftly recognizing them with the night vision or daytime settings. This optimized workflow makes the Osprey 640 an excellent choice for wildlife monitoring, tactical applications, and outdoor exploration.
Equipped with a 35mm thermal lens and a 50mm visible light sensor, the Pard Osprey 640 harnesses cutting-edge technology to deliver superior imaging capabilities. Its thermal sensor boasts a resolution of 640 x 512 pixels, showcasing a NETD of <20mK, which allows for detection of heat signatures up to 1800 meters away. The device features a digital zoom ranging from 2x to 8x, combined with an optical magnification of 1.8x, effectively enhancing the detail for both thermal and visible light observations. To accommodate various lighting conditions, the Osprey 640 includes three scene modes (City, Rain, Forest), along with six image modes (WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY), providing flexibility in capturing high-quality visual data.
Built for durability and versatility, the Osprey 640 operates on a removable and rechargeable 21700 lithium-ion battery, offering approximately six hours of usage, and features IP67 protection against water and dust, making it suitable for use in challenging environments. Users can record high-resolution photos and videos, with photo resolutions of 2048 x 1536 pixels and video resolutions of 1024 x 768 pixels for thermal and 1920 x 1440 pixels for night vision. Moreover, with integrated functionalities such as a 5W infra-red illuminator effective up to 350 meters, a gyroscope, e-compass, and loop recording capabilities, the Pard Osprey 640 provides a comprehensive and advanced observational solution that meets the demands of various users.
Thermal Sensor | |
Type | Uncooled VOx (vanadium oxide) |
Resolution (Pixel) | 640 x 512 |
Pixel Size (Um) | 12 x 12 |
Netd (Mk) | -/< 20 mK (0.02C) |
Frame Rate (Hz) | 50 |
Detection Distance (M) | 1800 |
Image Engine | Pard IREA |
Objective Lens (Mm) | 35 |
Optical Magnification (X) | 1.8 |
Digital Zoom (X) | 2/4/6/8 |
Field Of View (Horizontal) | 12.5 |
Field Of View (Vertical) | 10.0 |
Field Of View (Diagonal) | 16.0 |
Focus Range | 3m-Infinate |
Visible Light Sensor | |
Resolution (Pixel) | 2688 x 1520 |
Pixel Size (Um) | 2.9 |
Sensitivity (Lux) | 0.001 |
Frame Rate (Hz) | Colour:60/Mono:30 |
Objective Lens (Mm) | 50 |
Optical Magnification (X) | 3.5 |
Digital Zoom (X) | 2/3 |
Field Of View (Horizontal) | 6.4 |
Field Of View (Vertical) | 4.8 |
Field Of View (Diagonal) | 8 |
Focus Range | 3m-Infinate |
Display | |
Type | LCD |
Resolution (Pixel) | 640 x 480 |
Scene Mode | City/Rain/Forest |
Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
Eye Relief (Mm) | 25 |
Diopter Adjustment (D) | -5 - 3 |
Photo / Video | |
Photo Resolution (Pixel) | Thermal: 20481536/Night Vision: 20481536 |
Photo Format | .JPG |
Video Resolution (Pixel) | Thermal: 1024 x 768/Night Vision: 1920 x 1440 |
Video Format | .mp4 |
Storage (Gb) | Micro SD card (Max. 128GB) |
Main Function | |
LRF Detection Range (M/Yd) | 1000/1200 |
Pip | Yes |
Gyroscope | Yes |
Loop Recording | Yes |
E-Compass | Yes |
Shutter | Mechanical shutter |
Microphone | Yes |
Firmware Upgrade | Yes |
IR Illuminator | |
IR Power | 5W |
IR Illuminating Level | 3 Levels |
IR Distance (M) | 350 |
IR Wavelength (Nm) | 940 |
Interfaces | |
USB Type-C | Yes |
HDMI Output | Yes |
Wi-Fi | Yes |
Supported Apps | PardVision2 |
Power Supply | |
Battery Type | Lithium-ion 21700x1 |
Output Voltage (V) | 3.7 |
Operating Time (H, Max) | -/< 6 |
External Power Supply (V) | USB Type-C |
Environmental Characteristic | |
Degree Of Protection | IP67 |
Operating Temp (C/F) | -30 - +55 / -22 - +131 |
Material | |
Objective Lens | All-glass multi-coated lens |
Measurement | |
Product Dimension/With LRF (L X W X H, Mm) | 220 x 137 x 58 |
N.W/Pcs (With LRF and Battery, G) | 704.5 |
Free Shipping | No |
---|
