PHD Powerhouse ST2030-L UPS Kit
R42,499.00
SKU
ST2030LKit
Shipping restrictions apply.
Description

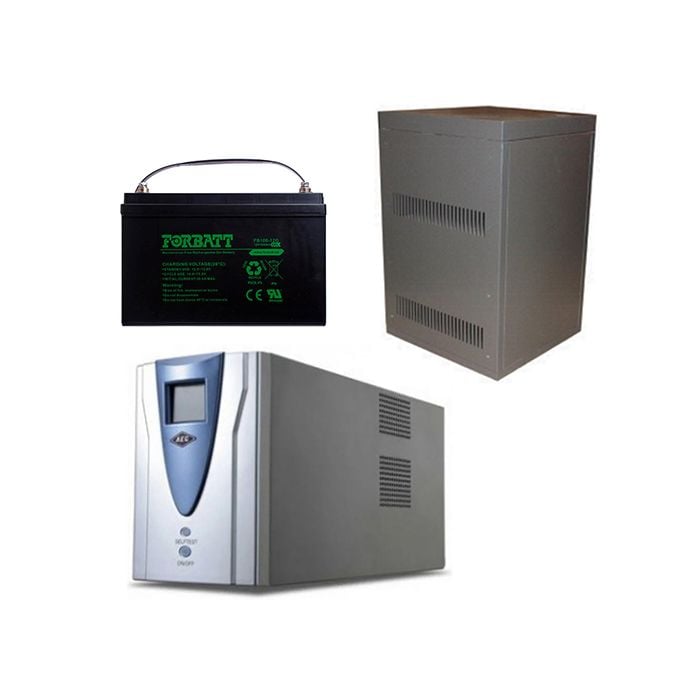

The PHD Powerhouse ST2030-L UPS Kit features one UPS, two battery cabinets and 6 batteries.
The PHD Powerhouse ST2030-L T2 Line Interactive Pure Sinewave UPS w/ USB - 3kVA, LCD features a pure sinewave UPS with an LCD screen and USB. This UPS boasts advanced MCU control technology with fast voltage protection, predicting mains failure. With an automatic voltage regulation, which saves battery power (AVR), this UPS also offers advanced battery management.
The PHD Powerhouse A4 Battery Cabinet is an essential item to have in your office or factory to sufficiently house your batteries that keep your business running during power cuts. Through cutting-edge research and innovation, advanced engineered power products for backup battery cabinets have become essential to our energy future. When the power goes out, battery backups ensure that the Internet, cloud-based data, financial and health records stay accessible. The role of batteries in producing emergency power supply for industries across the country is vital for our infrastructure.
The Forbatt FB100-12G Gel Battery will power your way through any situation. Gel batteries have longer service lives than lead acid or AGMs. They feature higher discharge capabilities, good recovery from deep discharge and super thermal stability.
Features
PHD Powerhouse ST2030-L T2 Line Interactive Pure Sinewave UPS - 3kVA
- LCD
- With USB
- Advanced MCU control technology
- Fast voltage protection, predicting mains failure
- Automatic voltage regulation, saving battery power (AVR)
- Low battery protection, preventing deep discharge
- Advanced battery management
PHD Powerhouse A4 Battery Cabinet
- A4 Battery Cabinet
- Fits 4 x 100Ah batteries
- Perfect fit for home or office use
- 1200Wh
- Maintenance free operation
- Long service life
- Low self-discharge
Specifications
| PHD Powerhouse ST2030-L UPS | |
| Maximum Capacity | 2100W |
| Input Voltage Range | 220/230/240VAC +/- 25% Singe Phase w/Ground |
| Input Frequency | 44Hz ~ 56Hz |
| Output Voltage | 220/230/240VAC |
| Output Voltage Regulation | +/- 2% |
| Output Frequency | 46 ~ 54Hz |
| Output THD | < 3% |
| Efficiency (Battery Mode) | 82% |
| Output Frequency (Battery Mode) | 50 +/- 0.1Hz |
| Overload Capability (Normal Mode) | Sustaining 5 min @ 100 - 200%; 3 sec @ > 200% |
| Overload Capability (Battery Mode) | Sustaining 30 sec @ > 100%; 1 sec @ 150% |
| Recharge Time To 90% | < 8 hours (adjustable) |
| Battery Mode | Long beeping |
| Low Battery | Continuous beeping |
| Overload | Short beeping |
| Dimensions | 220mm x 330mm x 487mm |
| Weight | 42kg |
| PHD Powerhouse A4 Battery Cabinet | |
| Height | 625 mm |
| Width | 412 mm |
| Depth | 428 mm |
| Forbatt FB100-12G Gel Battery | |
| Nominal Voltage | 12V |
| Rated Capacity (20hr Rate) | 100Ah |
| Length | 330mm |
| Width | 174mm |
| Height | 219mm |
| Total Height | 227mm |
| Weight | 30.01kg |
| Capacity After 3 month Storage | 90% Self-Discharge |
| Cycle Service Life @ 50% DoD | 600 - 700 Cycles |
| Free Shipping | No |
|---|
