PHD Powerhouse ST3100i-L UPS Kit
R102,199.00
SKU
ST3100iLKit
Shipping restrictions apply.
Description

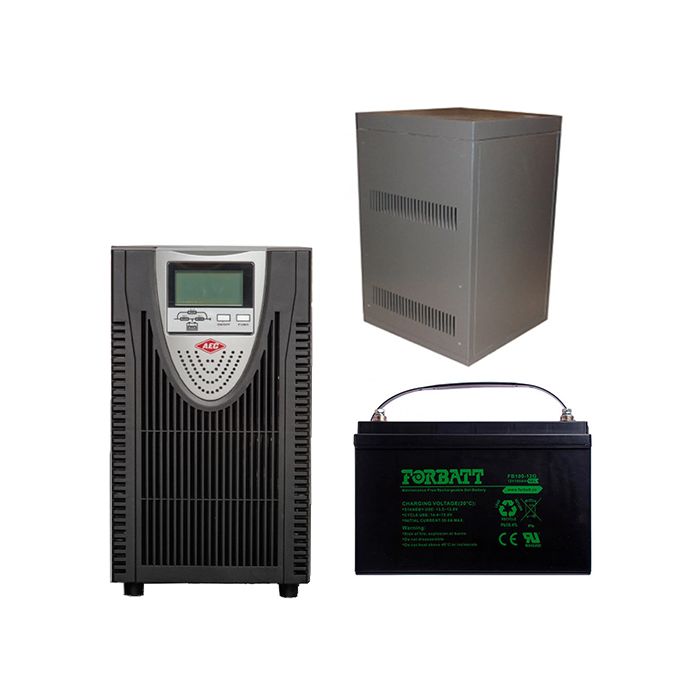

This complete battery back-up kit includes 1x PHD Powerhouse AEC ST3100i-L UPS, 16x Forbatt FB100-12G Gel Batteries and 2x PHD Powerhouse A8 Battery Cabinets.
The PHD Powerhouse AEC ST3100i-L Double Conversion Pure Sine Wave UPS w/ USB - 10kVA, LCD is part of a huge range of On-Line Double Conversion models which are completely digitally controlled. This UPS is suitable to protect different kinds of loads, from servers to computer networks, from medical instruments to security and surveillance systems. Capable of charging up to 100 A/H batteries, due to a stronger, built-in charger.
The Forbatt FB100-12G Gel Battery will power your way through any situation. Gel batteries have longer service lives than lead acid or AGMs. They feature higher discharge capabilities, good recovery from deep discharge and super thermal stability.
The PHD Powerhouse A8 Battery Cabinet is an essential item to have in your office or factory to sufficiently house your batteries that keep your business running during power cuts. Through cutting-edge research and innovation, advanced engineered power products for back-up battery cabinets have become essential to our energy future. When the power goes out, battery back-ups ensure that the Internet, cloud-based data, financial and health records stay accessible. The role of batteries in producing emergency power supply for industries across the country is vital for our infrastructure.
Features
PHD Powerhouse AEC ST3100i-L Double Conversion Pure Sine Wave UPS - 10kVA
- Pure sine wave
- Wide input voltage tolerance
- Start by batteries
- Digital control
- Single phase
- 1200Wh
- Maintenance free operation
- Long service life
- Low self-discharge
PHD Powerhouse A8 Battery Cabinet
- A8 Battery Cabinet
- Fits 8 x 100Ah batteries
- Perfect fit for home or office use
Specifications
| PHD Powerhouse AEC ST3100i-L UPS | |
| Cold Start | Yes, Default Frequency = 50Hz Or Settable |
| Phase | Single Phase In, Single Phase Out |
| Transfer Voltage Range | |
| Line Low Transfer | 110VAC / 1165VAC / 120VAC |
| Line Low Recovery | 116VAC / 122VAC / 127VAC |
| Line High Transfer | 275VAC / 288VAC / 300VAC |
| Line High Recovery | 268VAC / 279VAC / 291VAC |
| Input Power Factor | ≥ 0.99 |
| Input Frequency Range | 40Hz - 70Hz |
| Generator | Supports Any Generator |
| Output Power | 10kVA Max |
| Output Power | 9kW Max |
| Output Voltage | |
| Waveform | Pure Sine Wave |
| Nominal Voltage | 220 / 230 / 240VAC |
| Voltage Regulation | ± 1% |
| Transient Response | ≤5% (50% - 100% - 50%) |
| Transient Recovery | ≤15ms (0% - 100% - 0%) |
| Voltage Distortion | ≤5% THD, Non-Linear Load |
| Output Frequency | |
| Synchronization Range | Settable, ±3Hz Default |
| Slew Rate | 0.5-5Hz/s, 2Hz Default |
| Battery Mode | (50±0.05) Hz |
| Transfer Time | |
| Line Mode To Battery Mode | 0 |
| Inverter To Bypass | 0 |
| Efficiency | |
| Line Mode With Battery Full | 93% |
| ECO Mode | 98% |
| Battery Mode | 92% |
| Battery Rating/Type | Depend On The Capacity Of External Batteries |
| DC Voltage | 192/240VDC |
| Battery-Low Voltage | (176±3)VDC |
| Charger | |
| Charging Voltage | (220±1%)VDC |
| Charging Current (Max) | 5A |
| Leakage Current | <1mA |
| Width x Depth x Height | 250 x 504 x 480 mm |
| Net Weight | 20Kg |
| Forbatt FB100-12G Gel Battery | |
| Nominal Voltage | 12V |
| Rated Capacity (20hr Rate) | 100Ah |
| Length | 330mm |
| Width | 174mm |
| Height | 219mm |
| Total Height | 227mm |
| Weight | 30.01kg |
| Capacity After 3 month Storage | 90% Self-Discharge |
| Cycle Service Life @ 50% DoD | 600 - 700 Cycles |
| PHD Powerhouse A8 Battery Cabinet | |
| Height | 625mm |
| Width | 806mm |
| Depth | 428mm |
| Free Shipping | No |
|---|
