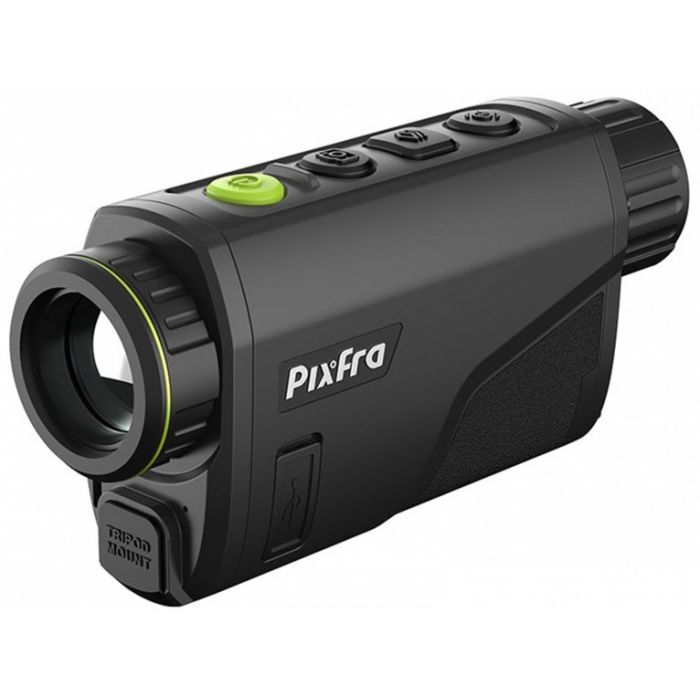

Pixfra Arc PFI-A435P LRF Thermal Imaging Monocular - 384x288

R35,999.00
SKU
PFI-A435P

Fully integrated 1,000 m laser range finder
FHD OLED display
Built-in eMMC (32 GB)
Replaceable 18650 battery

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website







Description

Introducing the Pixfra Arc PFI-A435P LRF Thermal Imaging Monocular - 384x288. An advanced thermal imaging device designed for precision and versatility in outdoor environments. Featuring a 384x288 resolution with an impressive 640x512 detector, this monocular provides exceptional image quality with a low NETD sensitivity of under 20 mK, ensuring that even the smallest details are visible in various conditions. The integration of the PIPS 2.0 algorithm significantly enhances contrast and clarity while minimizing environmental noise, resulting in a superb viewing experience.

Equipped with a fully integrated laser range finder, capable of measuring distances up to 1,000 meters, the Arc LRF is particularly well-suited for hunters and outdoor enthusiasts who value precision in their observations. The monoculars focal length of 35 mm and magnification of 3.86x allow for effective long-distance viewing, making it easier to identify and track subjects from afar. With a detection range of up to 1,800 meters, it is effective for a wide range of applications, including wildlife monitoring and search operations. The design of the Arc LRF incorporates a durable magnesium alloy housing, providing both a premium look and enhanced robustness while remaining lightweight and portable. User-friendly ergonomics are a key feature, with a contoured eyecup that ensures optimal eye contact and a refined grip for greater control. Its left and right-handed compatibility allows it to be comfortably used by a variety of operators.

The FHD OLED display offers bright visuals, while the built-in 32GB EMMC storage ensures ample space for capturing images and videos. Users can enjoy the flexibility of digital zoom options (1x, 2x, 4x, and 8x), along with several colour palettes-white hot, black hot, iron red, alarm, amber, and emerald-tailored to different environmental conditions and user preferences. Powering the monocular is a replaceable 18650 battery, providing an operating life of approximately 14 hours on a single charge. The innovative battery cover design allows for quick swaps, ensuring uninterrupted usage during extended outdoor excursions. Additionally, the device is rated IP67, making it resistant to dust and water, and suitable for rugged outdoor settings.

For added convenience, the Arc LRF is equipped with Wi-Fi connectivity, enabling users to connect to the Pixfra Outdoor App for remote monitoring and control of key features directly from their smartphone. Other advanced functionalities include audio recording, hot spot tracking, and customizable settings for enhanced user experience. With dimensions of 172 mm x 53 mm x 78 mm and a net weight of under 375 g (excluding battery), the Pixfra Arc PFI-A435P LRF Thermal Imaging Monocular is a high-performance tool that combines advanced thermal imaging technology with user-centric features, making it an essential companion for any outdoor adventure.



Features

  • Fully integrated 1,000 m laser range finder
  • FHD OLED display
  • Built-in eMMC (32 GB)
  • Replaceable 18650 battery
  • High optical magnification
  • Left and right-hand user-friendly design
  • Rugged mg housing
  • Lightweight and portable
  • Ip67 rated



Specifications

Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 384 (H) x 288 (V)
Pixel Pitch 12 um
Spectral Range 8um-14um
Sensitivity (Netd) -/<20 mK at f/1.0
Frame Rate 50 Hz
Focal Length 35 mm
Field Of View At 100M 13.2mx9.9m
Thermal Focus Control Manual
Close Focus Distance 2 m (6.56 ft)
Aperture F1.0
Detection Range 1,800 m (5,905.51 ft)
Digital Zoom 1 x, 2 x, 4 x, 8 x
Magnification 3.86X
Colour Palettes 6 (white-hot/black hot /iron red/ alarm/amber/emerald)
Display Screen Dimensions 0.41 inch, OLED
Storage Built-in EMMC (32 GB)
Uniformity Correction Auto, manual
Pip YES
Audio Recording YES
Hot Spot Trace YES
Wi-Fi YES
Power Supply 5 VDC/1 A, USB Type-C
Battery Type 1 replaceable 18650 battery
Battery Capacity 3,200 mAh
Battery Operating Life >/-7.5 h
Protection IP67
Product Dimensions 172 mm x 53 mm x 78 mm (6.77" x 2.09" x 3.07") (L x W x H)
Packaging Dimensions 228 mm x 120 mm x 187 mm (8.98" x 4.72" x 7.36") (L x W x H)
Net Weight -/<375 g (0.83 lb) (battery excluded)
