Fully integrated 1,000 m laser range finder
FHD OLED display
Built-in EMMC (32 GB)
Replaceable 18650 battery

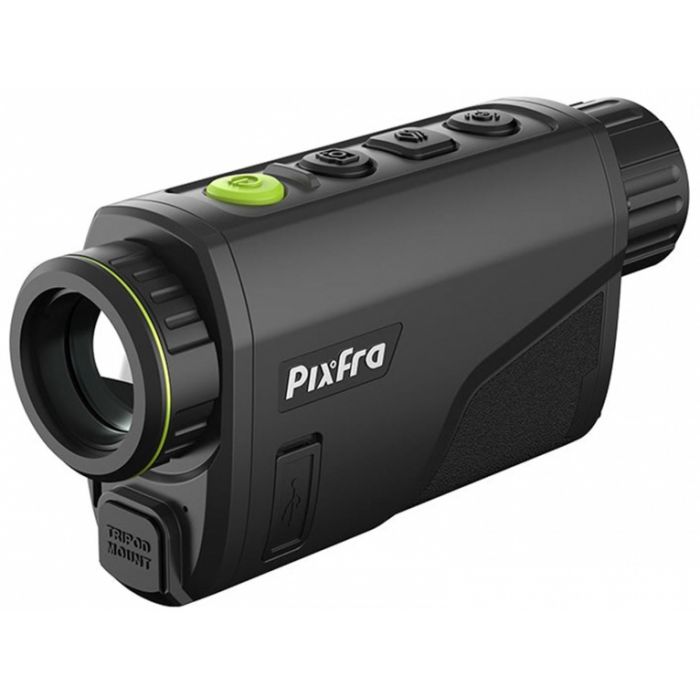

Introducing the Pixfra Arc PFI-A635P LRF Thermal Imaging Monocular - 640x512. Representing a high-performance tool equipped with cutting-edge features designed for outdoor enthusiasts, hunters, and explorers. This device boasts a 640x512 detector resolution, delivering exceptional image quality that captures intricate details, thanks to a NETD sensitivity of less than 20 mK. The advanced PIPS 2.0 algorithm further enhances the clarity of thermal images by minimizing environmental noise and boosting contrast, ensuring optimal visibility in various settings.
One of the key functionalities of the Arc LRF is its fully integrated laser range finder, with an impressive reach of up to 1,000 meters, enabling precise distance measurements essential for accurate targeting and navigation. This feature, combined with a focal length of 35 mm and a magnification of 2.36x, allows users to observe distant subjects with high clarity. The monoculars detection range extends to 1,800 meters, making it suitable for a wide array of outdoor applications from wildlife observation to search and rescue missions. Designed for user comfort and durability, the Arc LRF features a rugged magnesium alloy housing that provides a premium look while remaining lightweight and portable. Its ergonomic design includes a contoured eyecup for perfect eye alignment and a refined grip that enhances control during usage. The device supports both left and right-handed users, making it versatile for all types of operators.
The FHD OLED display delivers bright, clear visuals, and the built-in 32GB EMMC storage allows for ample space to store recordings and images. Users can take advantage of the digital zoom capabilities available at 1x, 2x, 4x, and 8x, along with a choice of six colour palettes-white hot, black hot, iron red, alarm, amber, and emerald-for visual customization based on environmental conditions. Powering the Arc LRF is a replaceable 18650 battery, which offers an operating life of up to 14 hours under optimal conditions. The innovative battery cover design enables quick changes, ensuring that long hunting or exploration trips remain uninterrupted. The device is also rated IP67, providing protection against dust and water, making it suitable for robust outdoor use.
Connectivity features include Wi-Fi, allowing for integration with the Pixfra Outdoor App, enabling remote control and instant access to device functions directly from a smartphone for enhanced convenience. Additional features such as audio recording, hot spot tracking, and both auto and manual uniformity correction further enrich the user experience. With dimensions of 172 mm x 53 mm x 78 mm and a net weight of less than 375 g (excluding battery), the Pixfra Arc PFI-A635P LRF Thermal Imaging Monocular is a sophisticated, portable device that merges advanced thermal imaging technology with user-oriented features. It is an essential companion for anyone serious about outdoor exploration and effective wildlife monitoring, ensuring that users can fully embrace their outdoor adventures with clarity and precision.
Detector Type | Vanadium oxide uncooled focal plane detector |
Effective Pixels | 640 (H) x 512 (V) |
Pixel Pitch | 12 um |
Spectral Range | 8um-14um |
Sensitivity (Netd) | -/<20 mK at f/1.0 |
Frame Rate | 50 Hz |
Focal Length | 35 mm |
Field Of View At 100M | 21.9mx17.6m |
Thermal Focus Control | Manual |
Close Focus Distance | 2 m (6.56 ft) |
Aperture | F1.0 |
Detection Range | 1,800 m (5,905.51 ft) |
Digital Zoom | 1 x, 2 x, 4 x, 8 x |
Magnification | 2.36X |
Colour Palettes | 6 (white-hot/black hot /iron red/ alarm/amber/emerald) |
Display Screen Dimensions | 0.41 inch, OLED |
Storage | Built-in EMMC (32 GB) |
Uniformity Correction | Auto, manual |
Pip | YES |
Audio Recording | YES |
Hot Spot Trace | YES |
Wi-Fi | YES |
Power Supply | 5 VDC/1 A, USB Type-C |
Battery Type | 1 replaceable 18650 battery |
Battery Capacity | 3,200 mAh |
Battery Operating Life | >/-7.5 h |
Protection | IP67 |
Product Dimensions | 172 mm x 53 mm x 78 mm (6.77" x 2.09" x 3.07") (L x W x H) |
Packaging Dimensions | 228 mm x 120 mm x 187 mm (8.98" x 4.72" x 7.36") (L x W x H) |
Net Weight | -/<375 g (0.83 lb) (battery excluded) |
