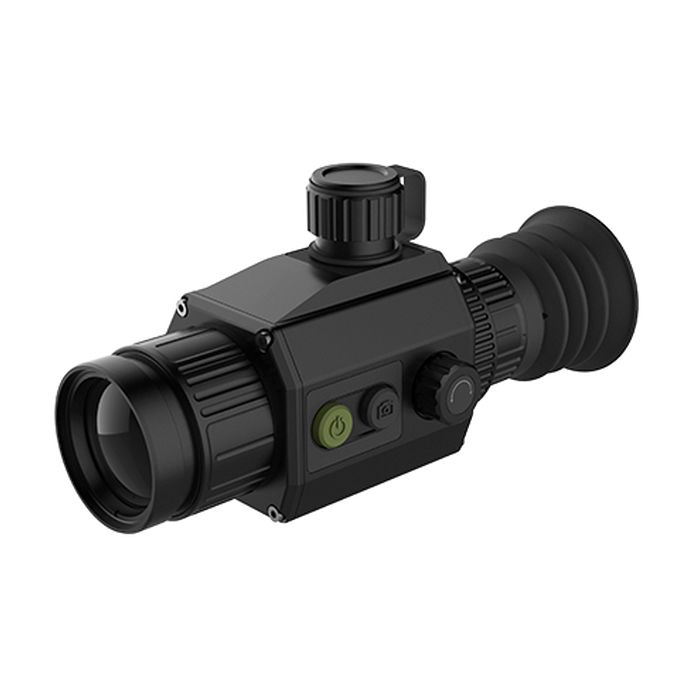

Pixfra Chiron C650 640x512 Thermal Imaging Monocular - 50mm, Black

R44,399.00 R64,999.00
SKU
PFIC650F
  • 640x512 resolution
    1800m detection range
    NETD<30mk
    6 hour battery life
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed
SAVE R20,600.00

Manufacturer's Website





Description

Introducing the Pixfra Chiron C650 640x512 Thermal Imaging Monocular - 50mm, Black, a professional-grade imaging device that combines exceptional resolution and a powerful lens to deliver outstanding visual performance. With its impressive specifications, including a resolution of 640x512 and a lens size of 50mm.

Typically used for surveillance, wildlife observation, search and rescue, and other outdoor activities, thermal monoculars can display temperature variations and provide clear images even in challenging conditions. They are commonly employed in both civilian and military applications for enhanced situational awareness.

The Pixfra Chiron C650 combines exceptional image quality with user convenience. Its robust construction ensures durability, making it suitable for various shooting environments. The ergonomic design enhances handling comfort, allowing you to maintain stability and control during extended shooting sessions. The device's intuitive controls and user-friendly interface further streamline your usage, enabling you to navigate through settings and options with ease. The Chiron series has a rotary knob design to help you quickly operate the menu for a more convenient and fast operating experience.

Hunting is all about "The moment," so there must be no error between what you see on your device's display and where your target actually is. PIPS (Pixfra Imaging Processing Solution) allows image latency of less than 20ms, compared to 60ms with conventional image solutions, which will help you to accurately aim at the target.

In addition to its impressive specifications, the Pixfra Chiron C650 incorporates advanced features to enhance your imaging experience. The Chiron supports one-shot zeroing. It supports the configuration of 5 x 6 reticles, and has more than 10 reticle types with a variety of colours optional. It also supports picture-in-picture mode or picture freeze mode when you zero, to help you zero faster. All models adopt 12μm detector, up to 640x512 resolution, detector sensitivity < 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details. Chiron supports Recoil Activated Recording (RAR), it automatically records key moments as you shoot, so you don't miss any of the highlights. With the Pixfra APP, you can also quickly share videos with your friends.



Features

  • Vanadium oxide uncooled focal plane detector
  • Ultra-low power consumption
  • Connects to the mobile app through Wi-Fi
  • Calculates distance using video analysis
  • Lightweight and portable
  • Picture in picture
  • Impact resistance reaches up to 1 000 g/1 ms
  • RAR (Recoil Activated Recorder)
  • 1440 x 1080 OLED screen
  • Metal housing
  • IP67 rated



Specifications

Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) x 512 (V)
Pixel Pitch 12 um
Spectral Range 8 um - 14 um
Sensitivity (NETD) <30 mK@f/1.0, 25C
Focal Length 50 mm
Aperture F1.0
Field Of View H: 8.7-Degrees V: 7.0-Degrees
Focus Control Fixed
Close Focus Distance 5 m (16.40 ft)
Detection Distance 2 600 m (8,530.18 ft)
Magnification 2.63 x
Frame Rate 50 Hz
Screen 1440 x 1080, 0.41 inch, OLED
Colour Palettes 6 (white hot/black hot/iron red/alarm/emerald/amber)
Video Compression H.264
Diopter Adjust -5 D to +5 D
Eye Relief 44 mm (1.73")
Exit Pupil 6 mm
Digital Zoom 1x 2x 4x 8x
Reticle Multiple Patterns & Color Options
Zeroing Yes
Video Recorder Yes
Snapshot Yes
WiFi Hotspot Yes
Hot Spot Track Yes
Video Distance Measurement Yes
FFC Calibration Auto manual immediately
Standby Mode Yes
PIP (Picture In Picture) Yes
DPC (Defective Pixel Correction) Yes
RAR (Recoil Activated Recorder) Yes
MIC Yes
Storage Built-In 16 GB
Battery Type Replaceable and rechargeable 18650 battery
Battery Life 6 h@25 C
Power Supply 5 VDC/1 A
Port USB Type-C
Anti-Reverse Battery Connection Yes
Overvoltage Protection Yes
Operating Temperature -30 C to +55 C (-22 F to +131 F)
Operating Humidity <95%
Max. Recoil 1 000 g/1 ms
Protection Grade IP67
Packaging Dimensions 267 mm x 227 mm x 116 mm (10.51" x 8.94" x 4.57") (L x W x H)
Product Dimensions 190.8 mm x 64.1 mm x 87.7 mm (7.51" x 2.52" x 3.45") (L x W x H)
Gross Weight 1 kg (2.20 lb)
Net Weight <520 g (1.15 lb) (battery exclude)
