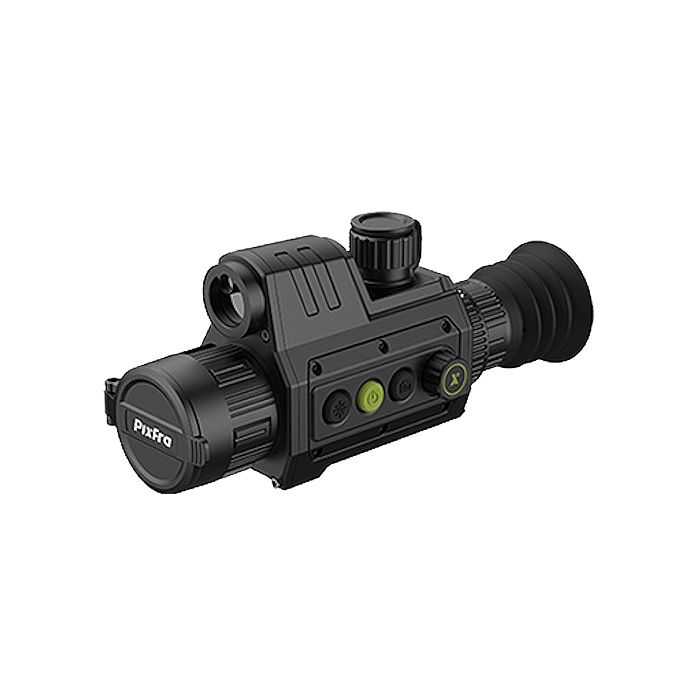

Pixfra Chiron PFI-C635 LRF 3-in-1 Thermal Monocular - 640x512

R59,999.00
SKU
PFI-C635LRF

Ultra-low power consumption
3-in-1 thermal scope, a clip-on or a handheld viewer
Detection distance is up to 1,800 m
Laser ranging distance is up to 1,000 m

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

Introducing the Pixfra Chiron PFI-C635 LRF 3-in-1 Thermal Monocular - 640x512. A sophisticated thermal imaging device designed for precision and versatility in outdoor activities such as hunting and surveillance. Featuring an advanced 1,000-meter laser range finder, this monocular provides critical distance measurements, enabling users to assess environmental variables and determine the perfect timing for their shots with enhanced precision.

Equipped with a state-of-the-art 20 mK detector, the Chiron excels in identifying minute temperature differences. Coupled with a high-resolution 640x512 OLED display, the device renders stunningly detailed images, offering users a clear and realistic viewing experience even in challenging conditions. Its robust construction is designed to withstand impacts of 1,000 g/ms and 6,000J of energy, ensuring the Chiron can handle high-pressure scenarios while maintaining exceptional image quality. The Chiron is integrated with a ballistic calculator that quickly computes various factors, ensuring accurate targeting across varying distances. This feature allows for reliable target acquisition, making it an indispensable tool for those who demand precision. Users can enjoy extended thermal imaging capabilities of up to 15 hours with a dual 18650 battery setup, ensuring the device is always ready for action.

Designed for user convenience, the Chiron features intuitive knob operation for rapid adjustments in the field, allowing for easy adaptation to changing conditions. With RAR Technology for automatic recording, users can capture every significant moment, enhancing the overall hunting experience. Its ultra-low power consumption ensures efficient usage, making it reliable over long durations. This 3-in-1 thermal scope can be used as a standalone device, clip-on, or handheld viewer, providing versatility for various operational needs. The Chiron has a detection distance of up to 1,800 m and a laser ranging distance of up to 1,000 m, making it highly effective in diverse situations. It also boasts a range of customizable features, including 6 colour palettes, 10 reticle options, and 5 zeroing profiles, with each profile supporting multiple coordinates for enhanced shooting accuracy.

Additional features include Picture-in-Picture (PIP) for closer target views, auto recording for capturing video, and Wi-Fi connectivity for seamless integration with mobile applications. With 32 GB of built-in storage, users can easily save important moments and observations. Rated at IP67, the Chiron is protected against dust and water, ensuring reliable performance in various environmental conditions. Overall, the Pixfra Chiron PFI-C635 LRF is a top-tier thermal monocular that combines cutting-edge technology with durable construction, designed to meet the needs of users seeking precision and reliability in the field.



Features

  • Ultra-low power consumption
  • 3-in-1 thermal scope, a clip-on or a handheld viewer
  • Detection distance is up to 1,800 m
  • Laser ranging distance is up to 1,000 m
  • Connects to the mobile app through Wi-Fi
  • 6 colour palettes
  • 10 reticles with customized colours
  • 5 zeroing profiles, and each profile has multiple coordinates, which makes the shoot more accurate
  • Picture in picture offers a closer view of the target with the whole visual scene
  • Auto recording, automatically record the video, recording the wonderful moment of hunting
  • Built-in storage (up to 32 GB)
  • Metal material
  • IP67 rated
  • Vanadium oxide uncooled focal plane detector



Specifications

Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) x 512 (V)
Pixel Pitch 12 um
Spectral Range 8 um-14 um
Sensitivity (NETD) -/<20 mK at f/1.0
Frame Rate 50 Hz
Focal Length 35 mm
Field of View at 100 m 21.9 m x 17.6 m
Thermal Focus Control Manual
Close Focus Distance 3 m (9.84 ft)
Aperture F1.0
Detection Range 1,800 m (5,905.51 ft)
Digital Zoom 1 x, 2 x, 4 x, 8 x
Magnification 1.80 x
Colour Palettes 6 (white-hot/black hot /iron red/ alarm/amber/emerald)
Screen Dimensions 0.41 inch, OLED
Storage Built-in EMMC (32 GB)
Uniformity Correction Auto, manual
PIP Yes
Audio Recording Yes
Recoil-activation Recording Yes
Max. Recoil 1000g/ 1ms
Hot Spot Trace Yes
Wi-Fi Yes
Power Supply 5 VDC/1 A, Type-C
Battery Type 1 replaceable 18650 battery
Battery Capacity 3,200 mAh
Overvoltage Protection Yes
Battery Operating Life >/-6.5h
Operating Temperature -30 C to +55 C (-22 F to +131 F)
Storage Temperature -30 C to +65 C (-22 F to +149 F)
Protection IP67
Product Dimensions 213.4 mm x 65.7 mm x 91.5 mm (8.4" x 2.59" x 3.6") (L x W x H)
Packaging Dimensions 310 mm x 180 mm x 138 mm (12.2" x 7.09" x 5.43") (L x W x H)
Net Weight <608 g (1.34 lb)
LRF Range 1,000 m (3,280.84 ft)
LRF Accuracy +/-1 m (3.28 ft)
