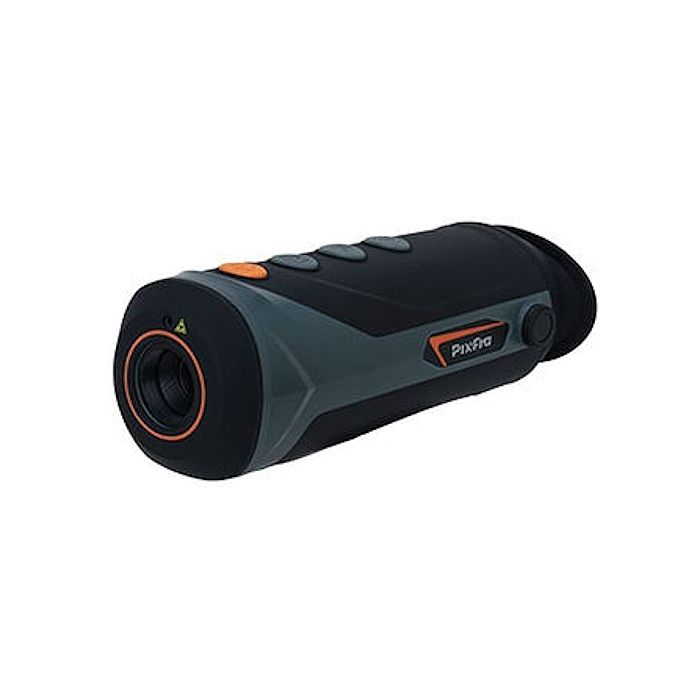

Pixfra Mile M20 256x192 Thermal Monocular - 750x540

Description

Introducing the Pixfra Mile M20 256x192 Thermal Monocular - 750x540. A compact and highly functional device designed for a range of outdoor activities. Featuring fire detection capabilities, the M Series allows for automatic fire detection up to 1 km away, making it an essential tool for forest management personnel to quickly identify and address fires. The device supports the detection of fires as small as 2 meters by 2 meters.

Equipped with distance measurement functionality, the monocular enables users to approximate the distance of targets by selecting the measurement type and aligning the measurement lines on the target. This feature is particularly useful for hunters, hikers, and outdoor enthusiasts who need accurate distance readings.

The Pixfra Mile M20 boasts a long battery life, supporting up to 9 hours of continuous use. Additionally, it can be powered via a USB cable, ensuring the device remains operational during extended field trips. The built-in WiFi hotspot module allows users to connect the monocular to their smartphone, providing real-time image viewing through the associated app.

For energy efficiency, the device features a smart standby mode. A built-in distance sensor detects inactivity and turns off the display to conserve battery life, while other functions remain active. The display can be quickly reactivated with a press of a button.

Ergonomically designed for comfort and ease of use, the Mile series monocular meets the IP67 protection rating and has passed a 2-meter drop test, ensuring durability in various environments. It features an uncooled Vox focal plane array detector with effective pixels of 256 x 192 and supports multiple color modes, including white hot, black hot, rainbow, iron red, and alarm pseudo colors.

The device includes hot tracking and WiFi capabilities, and it supports power supply via micro USB. It operates efficiently within a temperature range of -20 to +50 degrees Celsius and has a protection class of IP67. With a product size of 170.9 mm x 57.6 mm x 58.6 mm and a net weight of less than 350 grams, the Pixfra Mile M20 is lightweight and portable, perfect for various outdoor applications. It can also be mounted on a tripod for stable viewing.

Features

• Automatic fire detection up to 1 km
• Supports distance measurement function
• Ip67 protection rating
• Up to 9 hours of battery life
• Equipped with a built-in wifihotspot module
• Built-in distance sensor
• Smart standby mode
