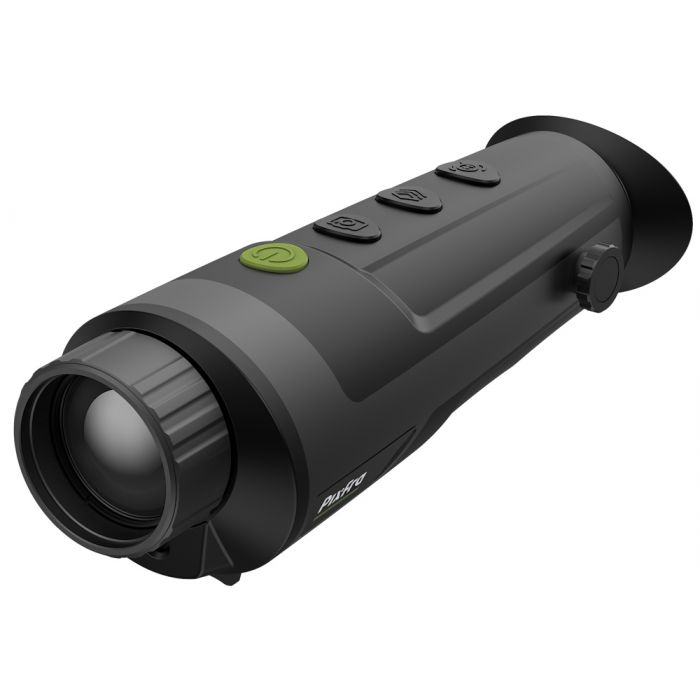

Pixfra Ranger R435 384x288 Thermal Imaging Monocular - 35mm, Black
R23,499.00
R37,299.00
SKU
PFIR435
- Resolution 384x528
30 mK at f/1.0 Sensitivity
35mm Lens
7.5 hour Battery Life
Description
Introducing the Pixfra Ranger R435 384x288 Thermal Imaging Monocular - 35mm, Black, a compact and powerful monocular that offers exceptional image quality and versatility. With its impressive features and sleek design, the Pixfra ranger is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and colour to a new level. The Pixfra Ranger R435 boasts a resolution of 384x288, ensuring sharp and detailed images that showcase more nuance and colour than ever before.
Designed for ease of use, the Pixfra Ranger R435 features intuitive controls and a user-friendly interface, allowing both beginners and experienced users to navigate its functions effortlessly. Ranger has a maximum 35mm lens, which can realize the detection distance of 1800m, helping you break through the visual boundary of human eyes at night. Supports white hot, black hot, alarm, iron red, jade, amber colour mode, to meet your observation needs in different scenarios.
Compact and lightweight, the Pixfra Ranger R435 is highly portable, making it an ideal companion. The Ranger series monocular is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and colour to a new level. Compared with 1024×768 resolution, the 1440 x 1080 resolution display has doubled the number of pixels, making it clearer and more detailed.
Additionally, the Pixfra Ranger R435 is equipped with various convenient features, with more than 7.5 hours of battery life, manual and automatic standby mode, to meet your outdoor observation needs all day. With a IP67 protection rating, it can be used after soaking in water for half an hour. The minimum operating temperature is -30℃, which can follow you to harsh environments.
Features
- Resolution 384x288
- 35mm lens, providing a wide field of view
- Compact and Portable
- Intuitive Controls
- Built-in image stabilization technology
- Multiple Shooting Modes
- Built-in Flash
- Easy Sharing and Transferring
- Long Battery Life
- Pro-grade Image Sensor
- Vivid Scene is in the Screen
- Extend Your Sight Edge
- Six Colour Palettes
- Long Battery Life
- Strong Protection Ability
Specifications
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 384 (H) x 288 (V) |
| Pixel Pitch | 12 um |
| Spectral Range | 8 um - 14 um |
| Sensitivity (NETD) | <30 mK@f/1.0 |
| Frame Rate | 50 Hz |
| Focal Length | 35 mm |
| Field Of View | H: 7.8-Degrees, V: 5.9-Degrees |
| Focus Control | Manual |
| Close Focus Distance | 2 m (6.56 ft) |
| Aperture | F1.0 |
| Detection Distance | 1 800 m (4,265.09 ft) |
| Digital Zoom | 1 x 2 x 4 x 8 x |
| Colour Palettes | 6 (white hot/black hot/iron red/alarm/emerald/amber) |
| Display Screen Dimensions | 0.41 inch, OLED |
| Screen Resolution | 1440 (H) x 1080 (V) |
| Magnification | 3.27 x |
| Diopter Adjust | 4 D to +5 D |
| Eye Relief | 25 mm (0.98") |
| Storage | Built-in EMMC (32 GB) |
| Uniformity Correction | Auto manual |
| Cold/Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Analogue Output | Yes. Type-C |
| Power Supply | 5 VDC/2 A, USB Type-C |
| Battery Type | 1 rechargeable Lithium batteries (internal) |
| Battery Capacity | 3 200 mAh |
| Overvoltage Protection | Yes |
| Standby Time | >7.5 h |
| Operating Temperature | -30 C to +50 C (22 F to +122 F) |
| Operating Humidity | <95% |
| Storage Temperature | 30 C to +65 C (22 F to +149 F) |
| Protection | IP67 |
| Product Dimensions | 190.5 mm x 64.7 mm x 69.6 mm (7.5" x 2.55" x 2.74") (L x W x H) |
| Packaging Dimensions | 299 mm x 152 mm x 114 mm (11.77" x 5.98" x 4.49") (L x W x H) |
| Net Weight | <400 g (0.88 lb) |
| Gross Weight | <1 kg (2.20 lb) |
| Free Shipping | No |
|---|
