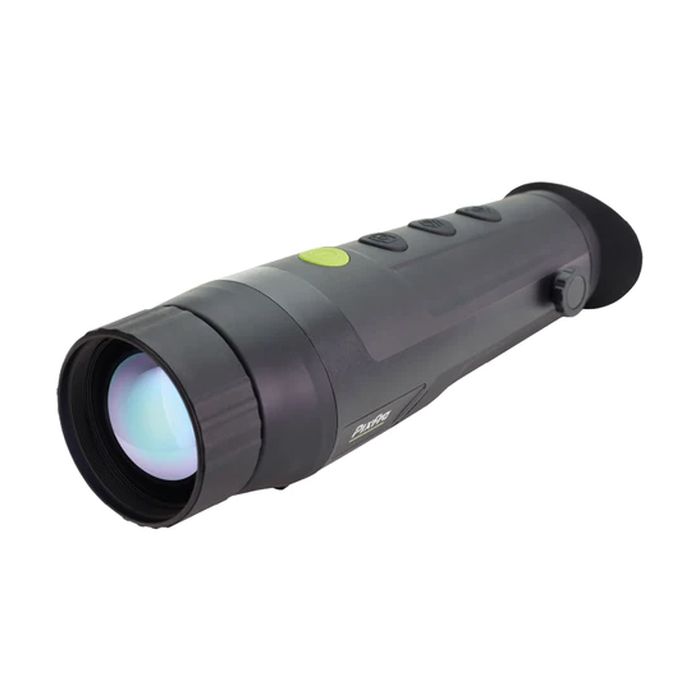

Pixfra Ranger R650 640x512 Thermal Imaging Monocular - 50mm, Black

R37,299.00 R54,999.00
SKU
PFIR650
  • 1800 meter detection
    640x512 resolution
    6.5 hour battery
    NETD<30mk
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed
SAVE R17,700.00

Manufacturer's Website





Description

Introducing the Pixfra Ranger R650 640x512 Thermal Imaging Monocular - 50mm, Black, a remarkable imaging device that combines exceptional resolution and an impressive lens size to deliver stunning visuals with remarkable clarity. With a resolution of 640x512 and a 50mm lens size, this product is designed to meet the demands of professionals and enthusiasts who seek outstanding image quality and versatility. A compact and powerful monocular that offers exceptional image quality and versatility. With its impressive features and sleek design, the Pixfra ranger is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and colour to a new level.

The Pixfra Ranger R650 sets a new benchmark in resolution with its impressive 640x512 pixel count. This high-resolution capability ensures unparalleled clarity and sharpness, enabling you to capture even the most intricate details with remarkable precision. Whether you're engaged in professional photography, surveillance operations, or nature observation, the Pixfra Ranger R650 allows you to produce stunning visuals with exceptional clarity and fine-grained accuracy.

Equipped with a 50mm lens, the Pixfra Ranger R650 strikes a perfect balance between versatility and focus. The larger lens size provides a narrower field of view, making it ideal for capturing subjects with greater detail and depth. It allows you to isolate your subject and achieve stunning background bokeh, creating visually captivating images that stand out with professional-grade aesthetics. The Ranger's maximum 50mm lens, can realize the detection distance of 2600m, helping you break through the visual boundary of human eyes at night. Supports white hot, black hot, alarm, iron red, jade, amber colour mode, to meet your observation needs in different scenarios.

The Pixfra Ranger R650 is not just about outstanding specifications, but also prioritizes user convenience. Its ergonomic design ensures comfortable handling during extended periods of use, minimizing fatigue. The device's compact and lightweight construction further enhances its portability, enabling you to take it anywhere your creative journey leads you. Compared with 1024x768 resolution, the 1440x1080 resolution display of the Ranger has doubled the number of pixels, making it clearer and more detailed.

Additionally, the Pixfra Ranger R650 is equipped with various convenient features, with more than 7.5 hours of battery life, manual and automatic standby mode, to meet your outdoor observation needs all day. With a IP67 protection rating, it can be used after soaking in water for half an hour. The minimum operating temperature is -30℃, which can follow you to harsh environments.



Features

  • Vanadium oxide uncooled focal plane detector
  • Ultra-low power consumption
  • Detection distance is up to 2 600 m
  • Connects to the mobile app through Wi-Fi
  • Six colour palettes
  • Built-in EMMC (32 GB)
  • Connects to the external display
  • Lightweight and portable
  • IP67 rated



Specifications

Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) x 512 (V)
Pixel Pitch 12 um
Spectral Range 8 um - 14 um
Sensitivity (NETD) <30 mK@f/1.0
Frame Rate 50 Hz
Focal Length 50 mm
Field Of View H: 8.7-Degrees, V: 7.0-Degrees
Focus Control Manual
Close Focus Distance 1.5 m (4.92 ft)
Aperture F1.0
Detection Distance 2 600 m (8 530.18 ft)
Digital Zoom 1 x 2 x 4 x 8 x
Colour Palettes 6 (white hot/black hot/iron red/alarm/emerald/amber)
Display Screen Dimensions 0.41 inch, OLED
Screen Resolution 1440 (H) x 1080 (V)
Magnification 2.92 x
Diopter Adjust 4 D to +5 D
Eye Relief 25 mm (0.98")
Storage Built-in EMMC (32 GB)
Uniformity Correction Auto manual
Cold/Hot Spot Trace Yes
Wi-Fi Yes
Analog Output Yes. Type-C
Power Supply 5 VDC/2 A, USB Type-C
Battery Type 1 rechargeable Lithium batteries (internal)
Battery Capacity 3 200 mAh
Overvoltage Protection Yes
Standby Time >6.5 h
Operating Temperature -30 C to +50 C (-22 F to +122 F)
Operating Humidity <95%
Storage Temperature -30 C to +65 C (-22 F to +149 F)
Protection IP67
Product Dimensions 217 mm x 64.7 mm x 69.6 mm (8.54" x 2.55" x 2.74") (L x W x H)
Packaging Dimensions 265 mm x 152 mm x 114 mm (10.43" x 5.98" x 4.49") (L x W x H)
Net Weight <495 g (1.09 lb)
Gross Weight <1 kg (2.20 lb)
