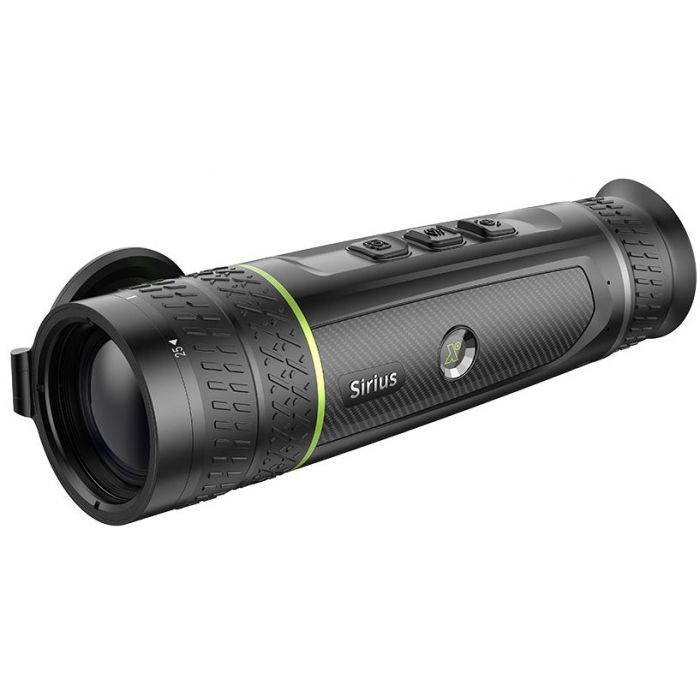

Pixfra Sirius PFI-S650D Thermal Imaging Monocular - 640x512

R74,999.00
SKU
PFI-S650D

Built-in EMMC (64 GB)
IP67 rated
Dual FOV lens
FHD OLED display
Replaceable 18650 battery

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website







Description

Introducing the Pixfra Sirius PFI-S650D Thermal Imaging Monocular - 640x512. An advanced thermal imaging solution designed to enhance your outdoor experience with exceptional clarity and versatility. Equipped with an 18 mK NETD sensor and an F0.9 large aperture lens, this device utilizes the cutting-edge PIPS 2.0 (Pixfra Imaging Processing System) to provide superior thermal imaging capabilities that exceed traditional standards. Users will benefit from an unprecedented level of accuracy and reliability, enabling effective monitoring and observation in various environments.

The Sirius features a vibrant 0.49-inch OLED screen with a resolution of 1920x1080, delivering a stunning visual experience that renders distant scenes with remarkable clarity. This monocular is capable of dual magnification, seamlessly switching between 25 mm and 50 mm focal lengths with digital zoom options, allowing users to transition smoothly from a wide-area scan to close-up observations without the need for refocusing. Whether for search and rescue operations, wildlife observation, or surveillance, the Sirius enhances your viewing capability with its 3.9x maximum system magnification, bringing distant details into sharp focus.

Designed for ease of use, the Sirius incorporates a classic three-key layout for reliable one-handed operation, complemented by an ergonomic design that ensures a comfortable grip during extended use. The intuitive crystal breathing light on the side power key provides a visual indication of device status, while the robust metal lens cap protects the optical elements from dust and impacts, ensuring longevity and clarity of your thermal imagery. Users can choose from six colour palettes, including options designed to reduce eye fatigue, ensuring comfort during all-day use in varying lighting conditions.

The device is built with practical features like easy battery access, enabling quick changes for uninterrupted operation, and a generous 64 GB built-in storage for capturing high-resolution images and videos. With its IP67 rating, the Sirius is protected against dust and water immersion, making it an ideal companion for outdoor adventures in various weather conditions. The Wi-Fi connectivity allows for easy pairing with mobile apps, enhancing user interaction and experience while ensuring that you're always equipped with cutting-edge technology for thermal imaging.



Features

  • Built-in EMMC (64 GB)
  • IP67 rated
  • Dual FOV lens
  • FHD OLED display
  • Replaceable 18650 battery
  • Vanadium oxide uncooled focal plane detector
  • Ergonomic buttons layout
  • Crystal breathing power button
  • Carbon fibre decorative texture design
  • High optical magnification
  • Connects to the mobile app through Wi-Fi
  • Six colour palettes



Specifications

Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) x 512 (V)
Pixel Pitch 12 um
Spectral Range 8um-14um
Sensitivity (Netd) -/<18 mK at f/1.0
Focal Length 25 mm, 50 mm
Thermal Focus Control Manual
Close Focus Distance 25 mm: 2 m (6.56 ff) 50 mm: 8 m (26.25 ff)
Aperture 25 mm: F0.88 50 mm: F1.1
Field Of View 25 mm: H: 17.9, V: 14.2/H: 30.7 m, V: 24.6 m (at 100 m) 50 mm: H: 8.8, V: 7.0/H: 15.4 m, V: 12.3 m (at 100 m)
Detection Distance 25 mm: 1,300 m (4,265.09 ff) 50 mm: 2,600 m (8,530.18 ff)
Digital Zoom 1 x, 2 x, 4 x, 8 x
Magnification 25 mm: 1.72x 50 mm: 3.45x
Frame Rate 50 Hz
Screen 1920 x 1080, 0.49 inch, OLED
Colour Palettes 6 (white-hot/black hot /iron red/ alarm/amber/emerald)
Storage Built-in 64 GB
Ffc Calibration Auto, Manual, External Correction
Hot Spot Trace Yes
Wi-Fi Hotspot Yes
Video Recorder Yes
Snapshot Yes
Battery Type Replaceable 18650 battery
Battery Life >/-6 h
Power Supply 5 VDC/2 A
Port USB Type-C
Operating Temperature -30 C to +55 C (-22 F to +131 F)
Protection Grade IP67
Product Dimensions 223 mm x 61 mm x 71.4 mm (8.78" x 2.4" x 2.81") (L x W x H)
Packaging Dimensions 291 mm x 140 mm x 127 mm (11.46" x 5.51" x 5") (L x W x H)
Net Weight 537 g (1.18 lb)
