Enhanced image processing algorithms
High-quality reinforced magnesium alloy housing
Extended battery life

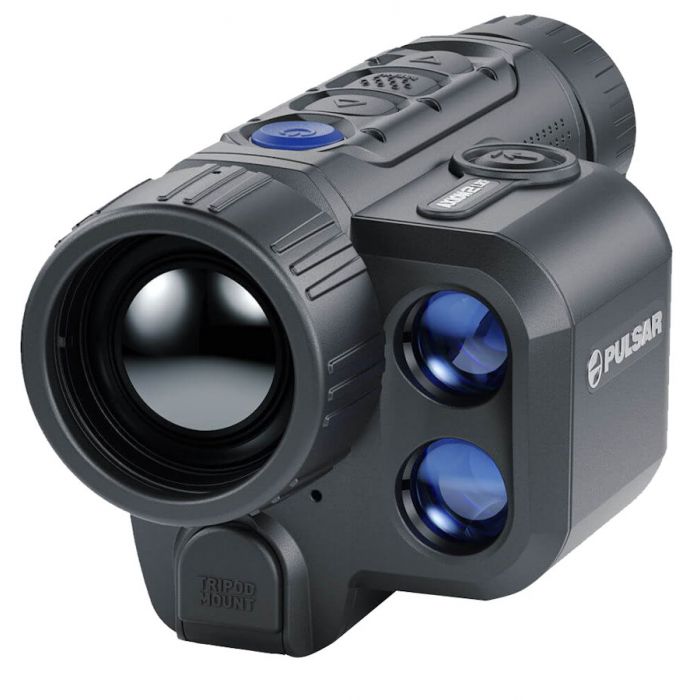

Want to have a step-up when hunting, then look no further than the Pulsar Axion 2 LRF XG35 Thermal Imaging Monocular.
The Pulsar Axion 2 LRF Thermal Imaging Monocular uses a new approach to image optimisation depending on the purposes and conditions of observation and provides high-quality rendering of both target objects and background. This monocular features three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments giving the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.
The Pulsar Axion 2 LRF Thermal Imaging Monocular is designed for constant, often hard use with a magnesium alloy housing that is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise and increases the consistency of the device operation during long-term observation.
Battery life is very important that why the Monocular features a high-capacity APS5 rechargeable battery that provides up to 11 hours of continuous operation of the thermal imaging device on a single charge. The battery can be removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special charger or inside the device from a PC, household power system or power bank via USB-C. The same sources are used for the external power supply of a thermal imaging device.
In Axion 2 XQ thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.
Any hunter knows understanding the target distance is an essential factor in making the right decisions. A built-in laser range finder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of 1m for quick and error-free assessment of the situation.
Main | |
Sensor | 640x480 pix. @ 12m (NETD |
Objective Lens | F35/1.0 |
Magnification, X | 2.5 to 20 (x8 zoom) |
Field Of View (Hxv), Degrees / M@100M | 12.5 x 9.4 / 21.9 x 16.4 |
Detection Range | 1750m |
Sensor | |
Type | Uncooled |
Resolution | 640 x 480 pixels |
Pixel Pitch | 12m |
NETD | <40 |
Frame Rate | 50Hz |
Optics | |
Objective Lens | F35/1.0 |
Magnification | 2.5 to 20x |
Field Of View (Hxv), Degrees / M @ 100 M | 12.5 x 9.4 / 21.9 x 16.4 |
Eye Relief | 14mm |
Display | |
Type | AMOLED HD |
Resolution | 1024 x 768 pixels |
Range Performance | |
Detection Range | 1750m |
Laser Range Finder | |
Safety Class For Laser Equipment According To Iec 60825-1:2014 | 1 |
Wave Length | 905nm |
Max. Measuring Range | 1000m |
Measurement Accuracy | +/- 1 |
Video Recorder | |
Video / Photo Resolution | 1024 x 768 pixel |
Video / Photo Format | .mp4 / .jpg |
Built-In Memory | 16gb |
Wi-Fi | |
Wireless Protocol | Wi-Fi |
Wireless Standard | IEEE 802.11 b/g/n/AC |
Frequency | 2.4 / 5 GHz |
Environmental Characteristics | |
Degree Of Protection, Ip Code (Iec60529) | IP7 (waterproof) |
Operating Temperature Range | -25 +40 degree Celsius |
Connection Compatibilities | |
Mount, Type | 1/4" |
Supported Application | Stream Vision 2 |
Power Supply | |
Output Voltage | 3.0 to 4.2V |
Battery Type | APS 5 Li-ion Battery Pack |
Capacity | 4900mAh |
Operating Time On Battery Pack (At T22C), H | 7 |
External Power Supply | 5 V, 9 V (USB Type-C) |
Weight And Size | |
Body Material | Magnesium alloy |
Dimensions | 152mm x 74mm x 75mm |
Weight | 0.35kg |
