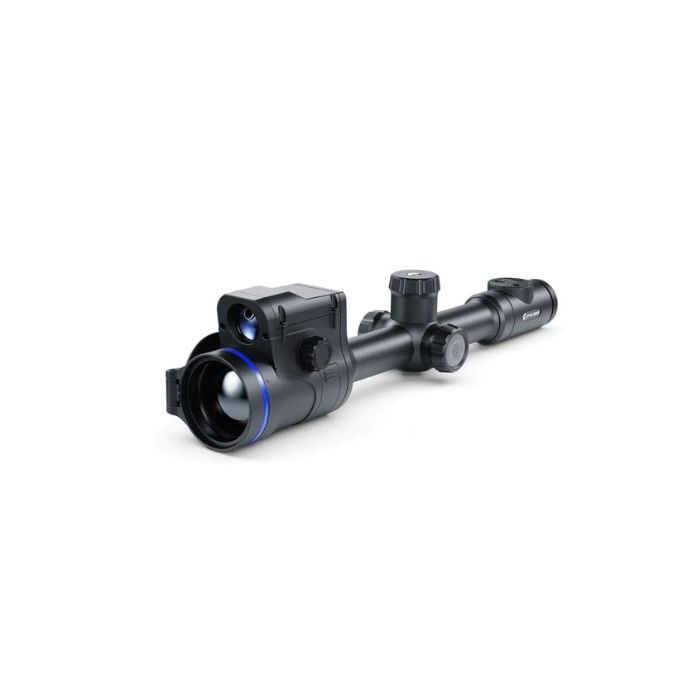

The Pulsar Thermion 2 LRF XP50 Pro Thermal Imaging Riflescope is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 metres the Thermion 2 LRF provides the hunter with an accurate sense of distance at the hunting site, helping to take a precise shot.
Thermal imaging sensor with NETD 25mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging. The characteristics of thermal imaging optics have a decisive influence on a thermal imagers' ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Thermion 2 LRF (F50/1.0) thermal imager in combination with the highly sensitive thermal sensor. The Thermion 2 LRF gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal.
A powerful long-distance F50/1.0 objective lens combined with a highly-sensitive thermal imaging sensors provides exceptional detection capabilities. A standard 1.8m tall object can be detected on a distance of 1800 - 2300 m away in complete darkness. The Thermion 2 LRF is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 10 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.
Sensor | 640x480 @ 17 m (NETD <25 mK) |
Objective lens | F50/1.0 |
Magnification, x | 2-16 |
Field of view (HxV), degrees / m@100m | 12.4x9.3 / 21.8x16.3 |
Detection range, m | 1800 |
Type | uncooled |
Resolution, pixels | 640x480 |
Pixel pitch, m | 17 |
NETD, mK | <25 |
Frame rate, Hz | 50 |
Objective lens | F50 / 1.0 |
Magnification, x | 2 - 16 |
Field of view (HxV), degrees / m @ 100 m | 12.4x9.3 / 21.8x16.3 |
Eye relief, mm | 50 |
Type | AMOLED |
Resolution, pixels | 1024x768 |
Detection range, m | 1800 |
Safety class for laser equipment according to IEC 60825-1:2014 | 1 |
Wavelength, nm | 905 |
Max. measuring range, m | 800 |
Measurement accuracy, m | 1 |
Click value, H/V, mm at 100 m | 21 / 21 (on minimum magnification) |
Click range, H/V, mm at 100 m | 4200 / 4200 |
Number of preloaded reticles | 10 |
Video / photo resolution, pixel | 1024x768 |
Video / photo format | .mp4 / .jpg |
Built-in memory, GB | 16 |
Wireless Protocol | Wi-Fi |
Wireless Standard | IEEE 802.11 b/g/n/ac |
Frequency, GHz | 2.4 / 5 |
Degree of protection, IP code (IEC60529) | IP7 |
Operating temperature range, | -25 +50 |
Max. recoil power on rifled weapon (Eo), Joules | 6000 |
Shock resistance on the smooth-bore rifles, caliber | 12 |
Mounting brackets on weapon | Standard 30 mm rings |
Remote control | Pulsar BT (optional) |
Supported Application | Stream Vision 2 |
Output voltage, V | 3.0 4.2 |
Battery type | Dual Li-Ion B-Pack Mini Power System: 2 Ah Changeable Battery (external) / 4.9 Ah Battery (internal) |
Capacity, mAh | 2000 (external) + 4900 (internal) |
Operating time on battery pack (at t22C), h | 10 |
External power supply, V | 5 V, 9 V (USB Type-C Power Delivery) |
Body material | Aluminum alloy |
Dimensions, mm | 420x78,5x94,5 |
Weight, kg | 0.97 |
Free Shipping | No |
---|
