RAM 101-SAE1 Universal Backing Plate Mount
R2,589.00
SKU
RAM101SAE1
Universal AMPS hole pattern
Has pre-drilled holes
Patented rubber ball and socket system
Description

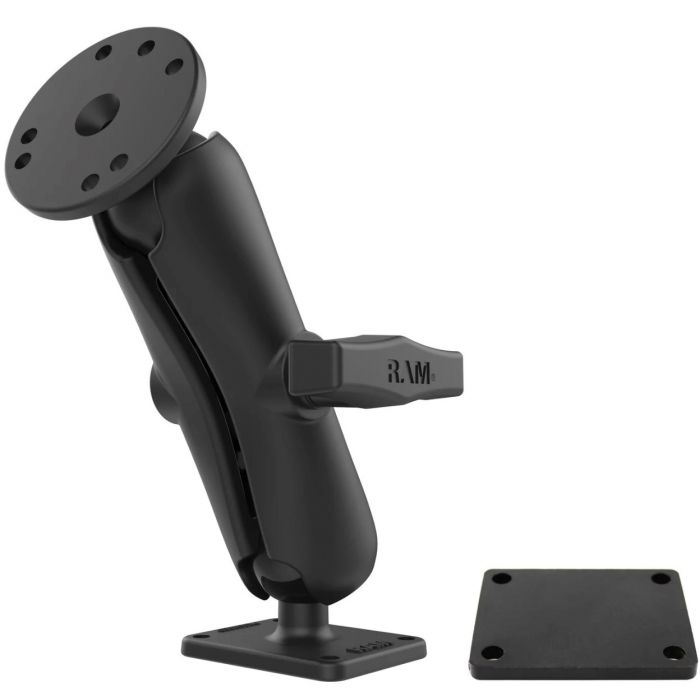

The RAM 101-SAE1 Universal Backing Plate Mount consists of a 6 inch double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit comes with a backing plate and is a drill-down mount.
Features
- Universal AMPS hole pattern
- Has pre-drilled holes
- Patented rubber ball and socket system
- Almost infinite adjustment and perfect viewing angles
Specifications
| Brand | RAM |
| Product Dimensions | |
| Overall Height | 7.35" |
| Socket To Socket Length | 4.66" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Rectangular Plate | 1.5" X 2" |
| Ball Size | C Size (1.5") |
| Weight Capacity | |
| Standard Use | 4 Lbs |
| Heavy-Duty Use | 3 Lbs |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (1) 2" x 2.5" aluminum backing plate
- (1) 8" zip tie
- (4) 10-24 x 1.5" machine screws
- (4) 10-24 nylock nuts
- (1) 8 x 1/2" sheet metal screw
- (1) 8 washer
- (1) 5/16" wire clip
| Free Shipping | No |
|---|
