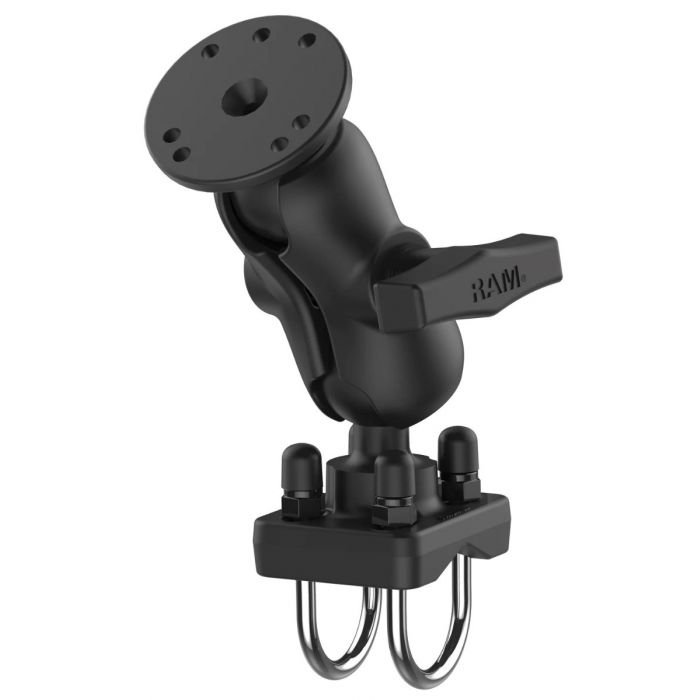

RAM 101U-B-235 Double U-Bolt Rail Mount For Smaller Rails
R1,939.00
SKU
RAM101UB235
Short double socket arm
Universal AMPS hole pattern
Stainless steel double u-bolt base
Description
The RAM 101U-B-235 Double U-Bolt Rail Mount For Smaller Rails consists of a short double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Features
- Short double socket arm
- Universal AMPS hole pattern
- Stainless steel double u-bolt base
- Patented rubber ball and socket system
- Allows for almost infinite adjustment and perfect viewing angles
Specifications
| Brand | RAM |
| Clamp Range | 1" - 1.25" diameter |
| Socket To Socket Length | 2.5" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | C Size (1.5") |
| Weight Capacity | |
| Standard Use | 4 Lbs |
| Heavy-Duty Use | 3 Lbs |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (2) 1/4"-20 u-bolts for 1" - 1.25" rails
- (4) 1/4"-20 nylock nuts
- (4) rubber caps
| Free Shipping | No |
|---|
