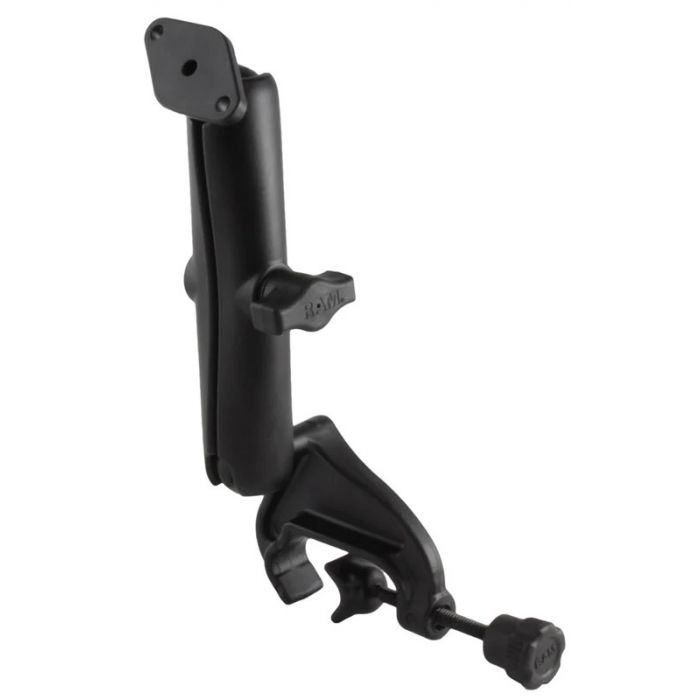

RAM Double Ball Yoke Clamp Mount With Diamond Plate - Long
R1,789.00
SKU
RAMB121C238U
Consists of a yoke clamp base
LONG length double socket arm
Will fit rails in diameter from 0.625" to 1.25"
Description
The RAM Double Ball Yoke Clamp Mount With Diamond Plate - Long consists of a yoke clamp base, LONG length double socket arm and 2.43" x 1.31" diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Features
- Consists of a yoke clamp base
- LONG length double socket arm
- Will fit rails in diameter from 0.625" to 1.25"
- Patented rubber ball and socket system
- Almost infinite adjustment
- Perfect viewing angles
Specifications
| Clamp Range | .625" - 1.25" |
| Socket To Socket Length | 5.31" |
| Hole Pattern | |
| 2-Hole Amps | 1.912" |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
| Free Shipping | No |
|---|
